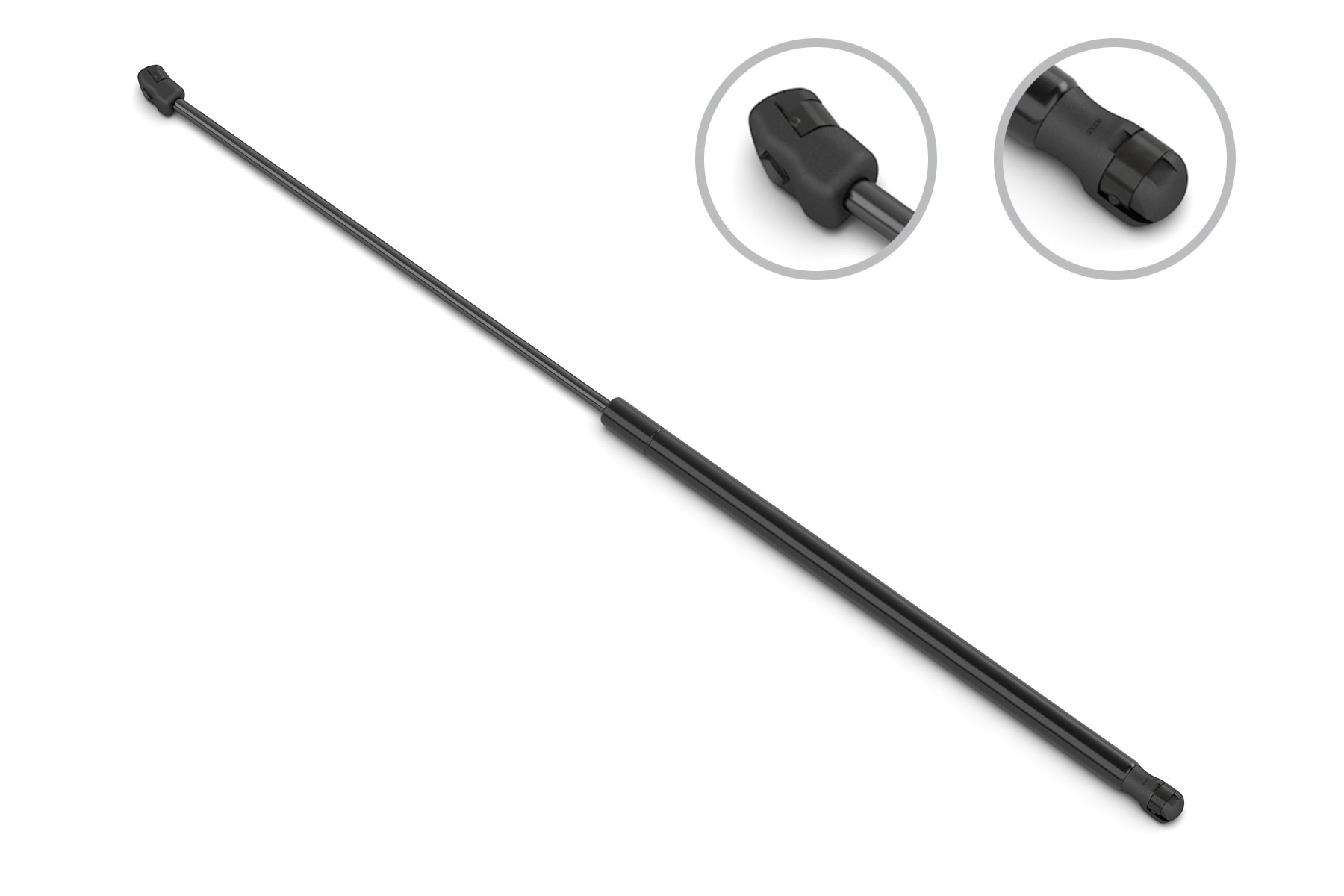

Stabilus 3B-103731 HOOD LIFT SUPPORT, 25.95 INCH, 12-05 TOYOTA Pack of 2

Stabilus 3B-103731 HOOD LIFT SUPPORT, 25.95 INCH, 12-05 TOYOTA Pack of 2

Stabilus 3B-103731 HOOD LIFT SUPPORT, 25.95 INCH, 12-05 TOYOTA

A gas charged lift support with dynamic speed control.

Features:

For best results replace in pairs.
Part coatings tested to automotive standards for corrosion resistance.
No bouncing or jerking during cycling.
Dynamic damping speed control creates a fluid opening motion.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat with dynamic damping sets a new standard in controlled motion, delivering refined, adaptable performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping? Dynamic Damping Technology: Continuous gas flow controlled by custom groove geometry delivers superior motion control and precision. OE-Preferred Solution: The damping technology specified by leading automakers for refined, consistent performance. Superior Performance: Engineered to deliver performance and precision beyond what hydraulic damping systems can achieve. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that delivers superior, engineered performance and a smooth, gentle stop every time.

Attributes:

Compressed Length	375 MM
End 1 Type	Ball Socket
Mounting Hardware Included	No
Extended Length	659 MM
Maximum Force	40 LB
End2 Mount Diameter	0.394 IN
3890	Nylon
3889	Nylon
Extended Length	25.95 IN
Maximum Force	180 NW
End2 Mount Diameter	10.0 MM
End1 Mount Diameter	10.0 MM
Compressed Length	14.76 IN
Stroke Length	11.19 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	0.709 IN
End1 Mount Diameter	0.394 IN
End 2 Type	Ball Socket
Type	GAS
Cylinder Outside Diameter	18 MM
Inner Shaft Diameter	8 MM
Stroke Length	284 MM
