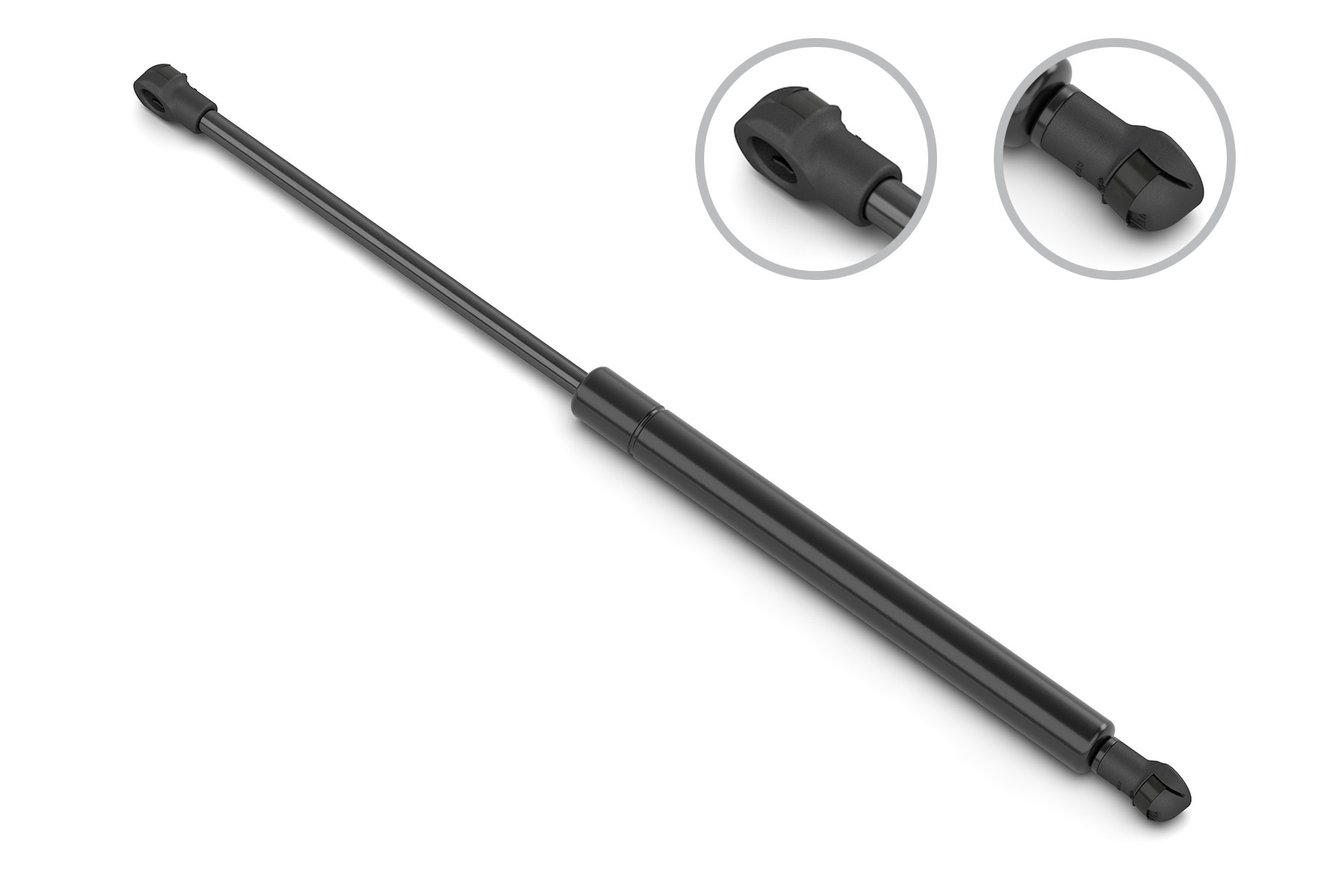

Stabilus 4B-016980 HOOD LIFT SUPPORT, 20.32 INCH, 11-05 LEXUS Pack of 2

Stabilus 4B-016980 HOOD LIFT SUPPORT, 20.32 INCH, 11-05 LEXUS Pack of 2

Stabilus 4B-016980 HOOD LIFT SUPPORT, 20.32 INCH, 11-05 LEXUS

A gas charged lift support with dynamic speed control.

Features:

No bouncing or jerking during cycling.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
Dynamic damping speed control creates a fluid opening motion.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat with dynamic damping sets a new standard in controlled motion, delivering refined, adaptable performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping? Dynamic Damping Technology: Continuous gas flow controlled by custom groove geometry delivers superior motion control and precision. OE-Preferred Solution: The damping technology specified by leading automakers for refined, consistent performance. Superior Performance: Engineered to deliver performance and precision beyond what hydraulic damping systems can achieve. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that delivers superior, engineered performance and a smooth, gentle stop every time.

Attributes:

Cylinder Outside Diameter	18 MM
End2 Mount Diameter	0.394 IN
Compressed Length	12.95 IN
Stroke Length	7.37 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	0.709 IN
End1 Mount Diameter	10.0 MM
End2 Mount Diameter	10.0 MM
Maximum Force	160 NW
End1 Mount Diameter	0.394 IN
Inner Shaft Diameter	8 MM
Stroke Length	187 MM
Compressed Length	329 MM
Extended Length	516 MM
Maximum Force	36 LB
Extended Length	20.32 IN
End 2 Type	Ball Socket
End 1 Type	Ball Socket
Mounting Hardware Included	No
3890	Nylon
3889	Nylon
Type	GAS
