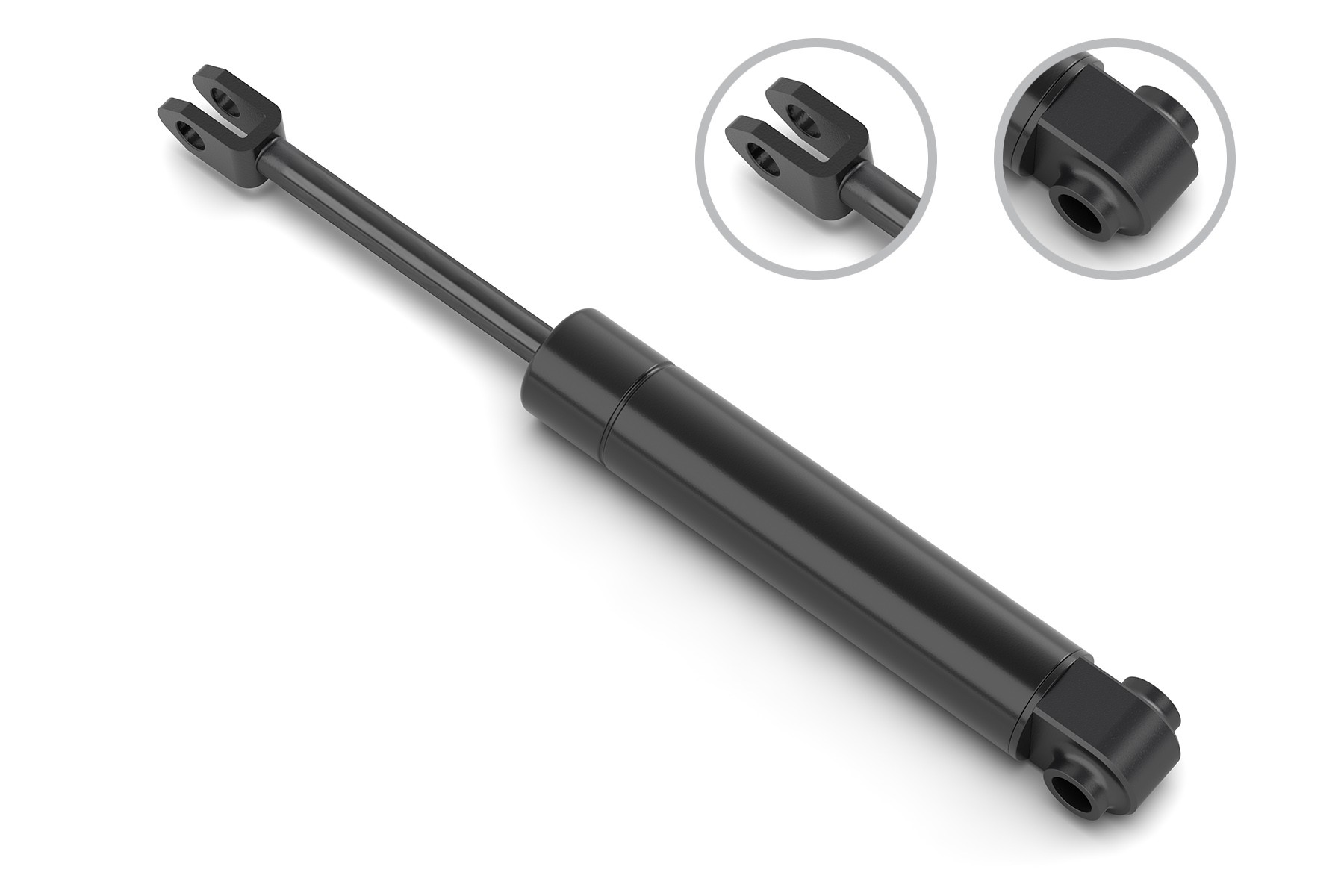

Stabilus 5B-8066BB LIFTGATE LIFT SUPPORT, 10.79 INCH, 95-88 MERCEDES

A hydraulically dampened gas charged lift support.

Features:

Part coatings tested to automotive standards for corrosion resistance.
For best results replace in pairs.
Based on the OE design to ensure proper fit form and function.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Easy to install and require no special tools.
Clog free design prevents binding due to contamination.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

Stroke Length	3.19 IN
Inner Shaft Diameter	0.394 IN
Compressed Length	7.60 IN
Cylinder Outside Diameter	1.142 IN
Extended Length	10.79 IN
3889	Steel
End1 Mount Diameter	9.2 MM
End2 Mount Diameter	10.1 MM
Maximum Force	1780 NW
3890	Steel
Mounting Hardware Included	No
End 1 Type	Pin
End 2 Type	Blade w/Bushing
End1 Mount Diameter	0.362 IN
End2 Mount Diameter	0.398 IN
Type	GAS
Cylinder Outside Diameter	29 MM
Inner Shaft Diameter	10 MM
Stroke Length	81 MM
Compressed Length	193 MM
Extended Length	274 MM
Maximum Force	400 LB
