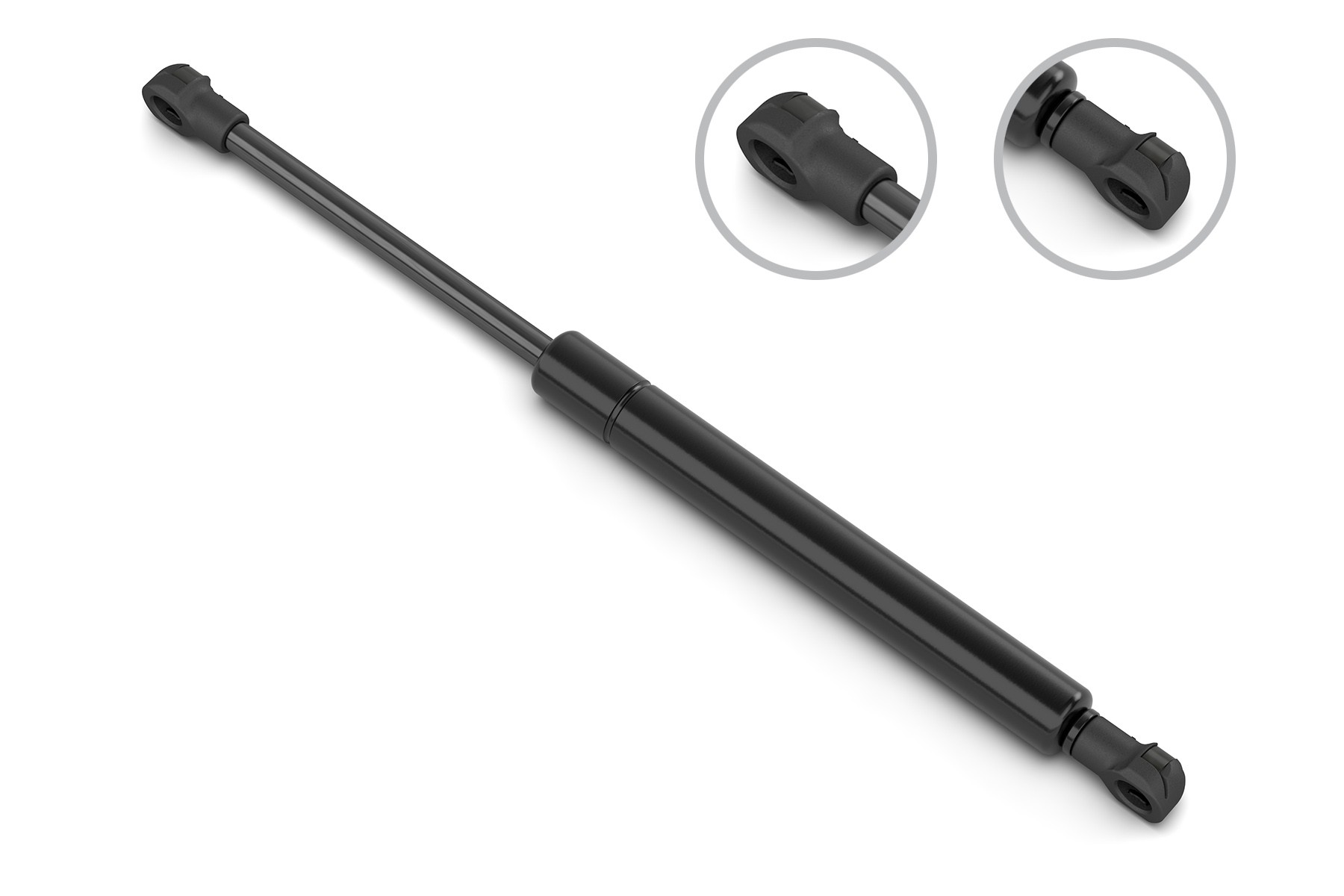

Stabilus 5B-8456LU HOOD LIFT SUPPORT, 9.65 INCH, 06-99 VOLVO Pack of 2

Stabilus 5B-8456LU HOOD LIFT SUPPORT, 9.65 INCH, 06-99 VOLVO Pack of 2

Stabilus 5B-8456LU HOOD LIFT SUPPORT, 9.65 INCH, 06-99 VOLVO

A hydraulically dampened gas charged lift support.

Features:

Part coatings tested to automotive standards for corrosion resistance.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Clog free design prevents binding due to contamination.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

3890	Nylon
3889	Nylon
Cylinder Outside Diameter	15.6 MM
Inner Shaft Diameter	6 MM
Maximum Force	400 NW
End2 Mount Diameter	10.0 MM
Mounting Hardware Included	No
Type	GAS
Maximum Force	90 LB
End 2 Type	Ball Socket
End 1 Type	Ball Socket
End1 Mount Diameter	10.0 MM
Stroke Length	86 MM
Compressed Length	159 MM
Extended Length	9.65 IN
Compressed Length	6.26 IN
Stroke Length	3.39 IN
Inner Shaft Diameter	0.236 IN
Cylinder Outside Diameter	0.590 IN
End1 Mount Diameter	0.394 IN
End2 Mount Diameter	0.394 IN
Extended Length	245 MM
