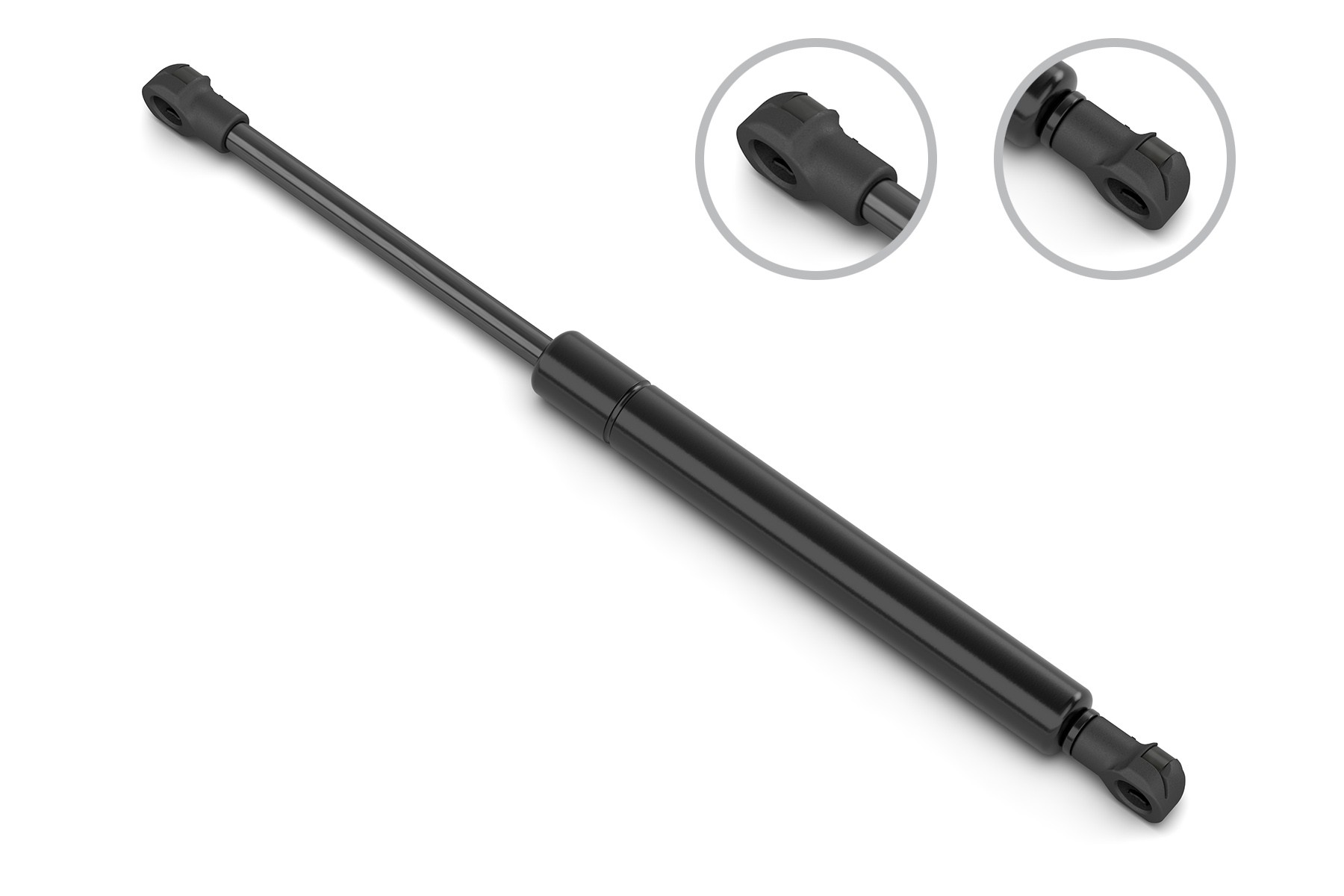

Stabilus 5B-8482UN CONVERTIBLE TOP COVER LIFT SUPPORT, 11.02 INCH, 09-04 MERCEDES Pack of 2

Stabilus 5B-8482UN CONVERTIBLE TOP COVER LIFT SUPPORT, 11.02 INCH, 09-04 MERCEDES Pack of 2

Stabilus 5B-8482UN CONVERTIBLE TOP COVER LIFT SUPPORT, 11.02 INCH, 09-04 MERCEDES

A hydraulically dampened gas charged lift support.

Features:

Based on the OE design to ensure proper fit form and function.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Clog free design prevents binding due to contamination.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
For best results replace in pairs.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

3890	Nylon
3889	Nylon
Compressed Length	6.97 IN
Extended Length	11.02 IN
End 1 Type	Ball Socket
End 2 Type	Ball Socket
End1 Mount Diameter	10.0 MM
Cylinder Outside Diameter	15 MM
Inner Shaft Diameter	6 MM
Stroke Length	103 MM
Compressed Length	177 MM
Extended Length	280 MM
Mounting Hardware Included	No
Type	GAS
Maximum Force	7 LB
End2 Mount Diameter	0.394 IN
End1 Mount Diameter	0.394 IN
Cylinder Outside Diameter	0.591 IN
Inner Shaft Diameter	0.236 IN
Stroke Length	4.05 IN
Maximum Force	30 NW
End2 Mount Diameter	10.0 MM

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	CLK280	2007 to 2009
Mercedes-Benz	CLK320	2004 to 2005
Mercedes-Benz	CLK350	2006 to 2009
Mercedes-Benz	CLK500	2004 to 2006
Mercedes-Benz	CLK55 AMG	2004 to 2006
Mercedes-Benz	CLK550	2007 to 2009
Mercedes-Benz	CLK63 AMG	2007 to 2008
