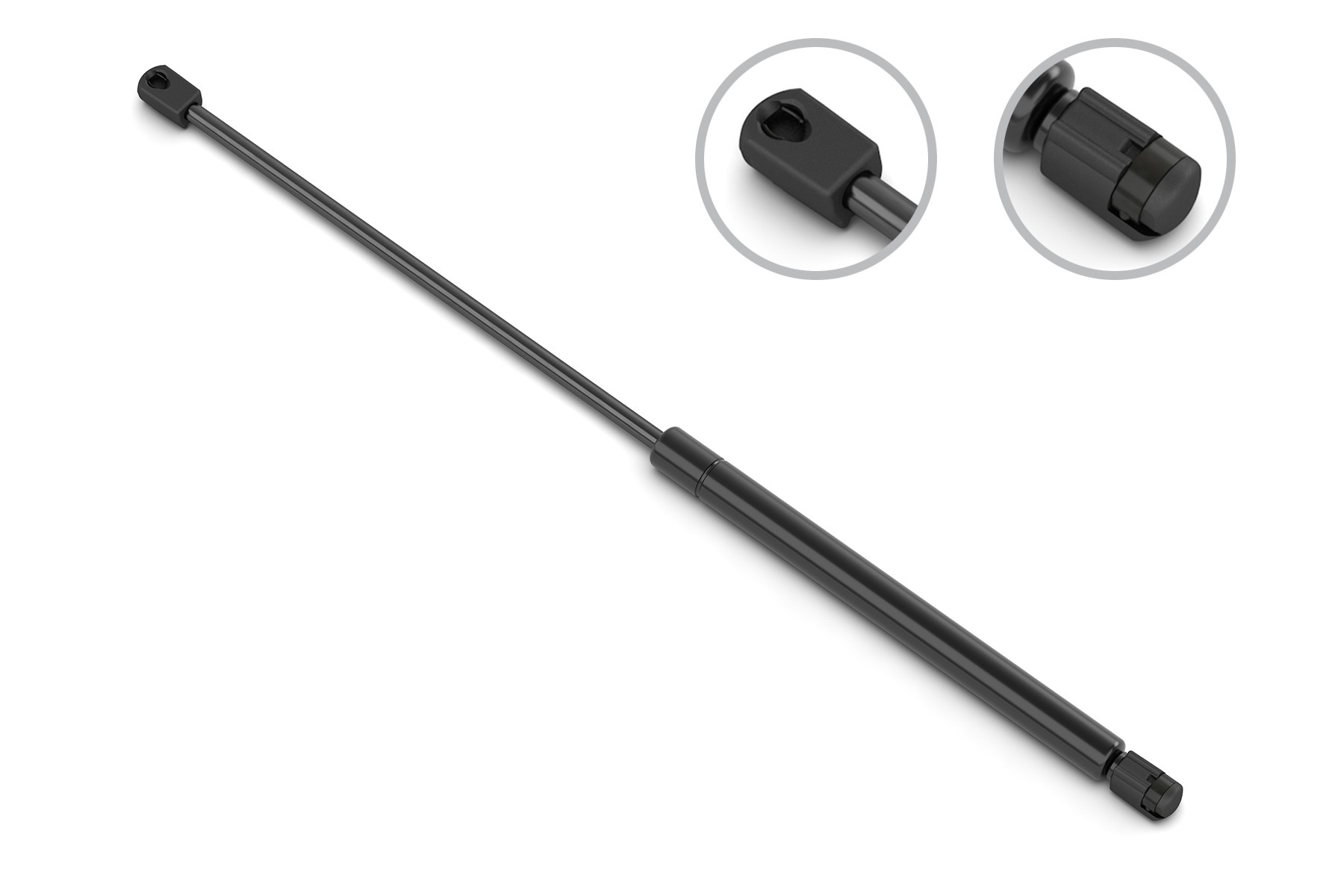

Stabilus 5B-943133 BACK GLASS LIFT SUPPORT, 15.04 INCH, 10-05 JEEP Pack of 2

Stabilus 5B-943133 BACK GLASS LIFT SUPPORT, 15.04 INCH, 10-05 JEEP Pack of 2

Stabilus 5B-943133 BACK GLASS LIFT SUPPORT, 15.04 INCH, 10-05 JEEP

A gas charged lift support with dynamic speed control.

Features:

Based on the OE design to ensure proper fit form and function.
Easy to install and require no special tools.
Part coatings tested to automotive standards for corrosion resistance.
For best results replace in pairs.
Dynamic damping speed control creates a fluid opening motion.
No bouncing or jerking during cycling.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat with dynamic damping sets a new standard in controlled motion, delivering refined, adaptable performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping? Dynamic Damping Technology: Continuous gas flow controlled by custom groove geometry delivers superior motion control and precision. OE-Preferred Solution: The damping technology specified by leading automakers for refined, consistent performance. Superior Performance: Engineered to deliver performance and precision beyond what hydraulic damping systems can achieve. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that delivers superior, engineered performance and a smooth, gentle stop every time.

Attributes:

3889	Nylon
End2 Mount Diameter	0.394 IN
Maximum Force	45 LB
Compressed Length	256.5 MM
Extended Length	382 MM
Mounting Hardware Included	No
End 1 Type	Ball Socket
Extended Length	15.04 IN
End 2 Type	Ball Socket
Type	GAS
Maximum Force	200 NW
End2 Mount Diameter	10.0 MM
End1 Mount Diameter	8.0 MM
Cylinder Outside Diameter	18 MM
Inner Shaft Diameter	8 MM
Compressed Length	10.10 IN
Stroke Length	4.94 IN
Inner Shaft Diameter	0.315 IN
Stroke Length	125.5 MM
Cylinder Outside Diameter	0.709 IN
End1 Mount Diameter	0.315 IN
3890	Nylon
