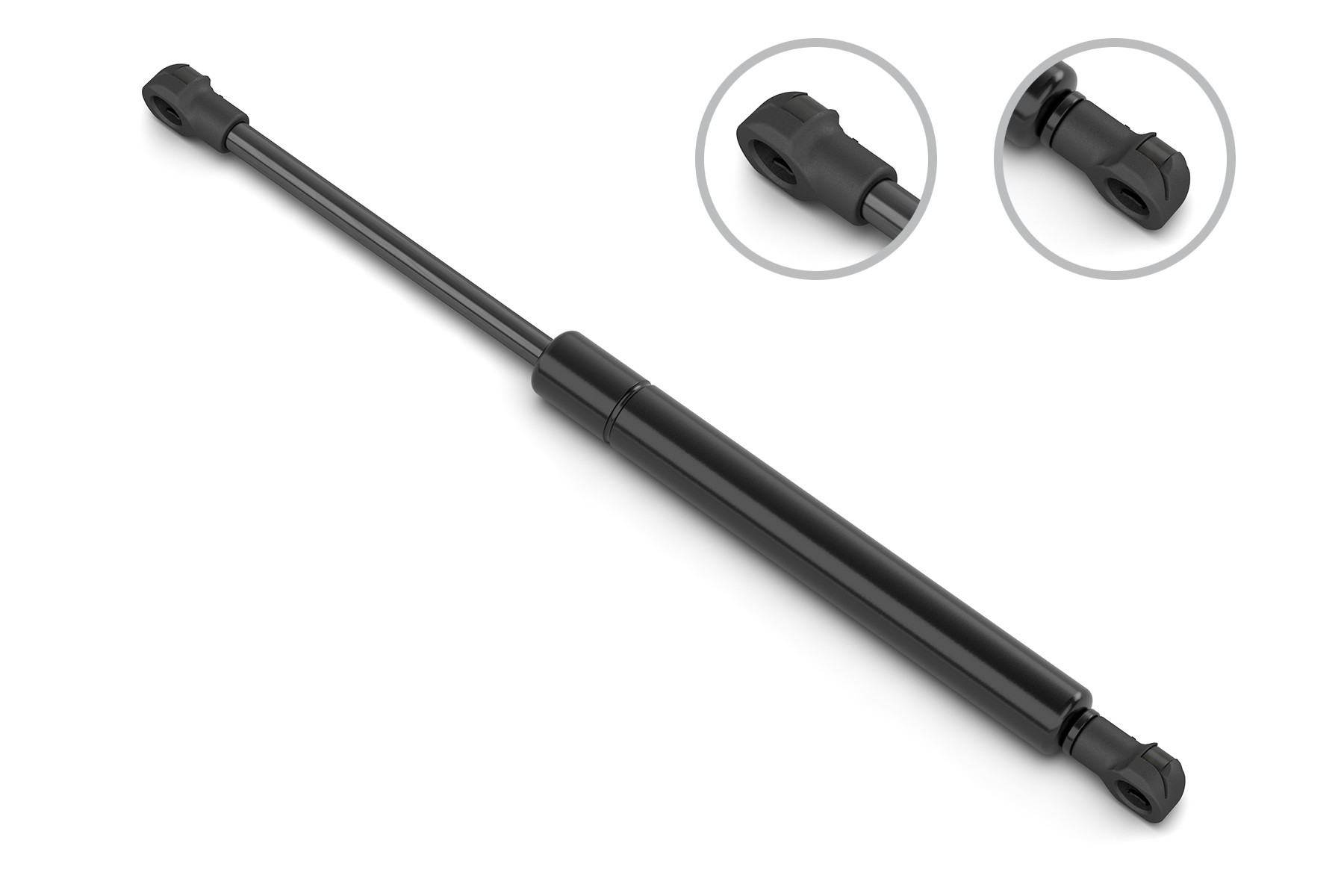

Stabilus 5B-9832NI TRUNK LID LIFT SUPPORT, 13.74 INCH, 06-99 BMW Pack of 2

Stabilus 5B-9832NI TRUNK LID LIFT SUPPORT, 13.74 INCH, 06-99 BMW Pack of 2

Stabilus 5B-9832NI TRUNK LID LIFT SUPPORT, 13.74 INCH, 06-99 BMW

A gas charged lift support with dynamic speed control and an internal compression spring to release the application from the latch.

Features:

Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
Internal mechanical spring compresses in the closed position to give an added boost during initial opening.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. An integrated internal compression spring assists in lifting the application off the latch mechanism when released, providing enhanced convenience and smooth operation. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping and Lift Assist? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Integrated Lift Assist: Internal compression spring helps lift the application off the latch for improved ease of operation. OE-Preferred Solution: The advanced features specified by leading automakers for refined, consistent performance. Choose Lift-O-Mat by Stabilus for superior performance and convenient operation with every use.

Attributes:

Maximum Force	320 NW
Extended Length	13.74 IN
Compressed Length	9.61 IN
End1 Mount Diameter	10.0 MM
Cylinder Outside Diameter	18 MM
Stroke Length	4.13 IN
End 2 Type	Ball Socket
Inner Shaft Diameter	8 MM
Stroke Length	105 MM
Inner Shaft Diameter	0.315 IN
3890	Nylon
Cylinder Outside Diameter	0.709 IN
End1 Mount Diameter	0.394 IN
End2 Mount Diameter	0.394 IN
Maximum Force	72 LB
Type	GAS
3889	Nylon
Extended Length	349 MM
Compressed Length	244 MM
End 1 Type	Ball Socket
Mounting Hardware Included	No
End2 Mount Diameter	10.0 MM

Vehicle Applications:

Make	Model	Years
BMW	320i	2001 to 2005
BMW	323Ci	2000 to 2000
BMW	323i	1999 to 2000
BMW	325Ci	2001 to 2006
BMW	325i	2001 to 2005
BMW	325xi	2001 to 2005
BMW	328Ci	2000 to 2000
BMW	328i	1999 to 2000
BMW	330Ci	2001 to 2006
BMW	330i	2001 to 2005
BMW	330xi	2001 to 2005
BMW	M3	2001 to 2006
