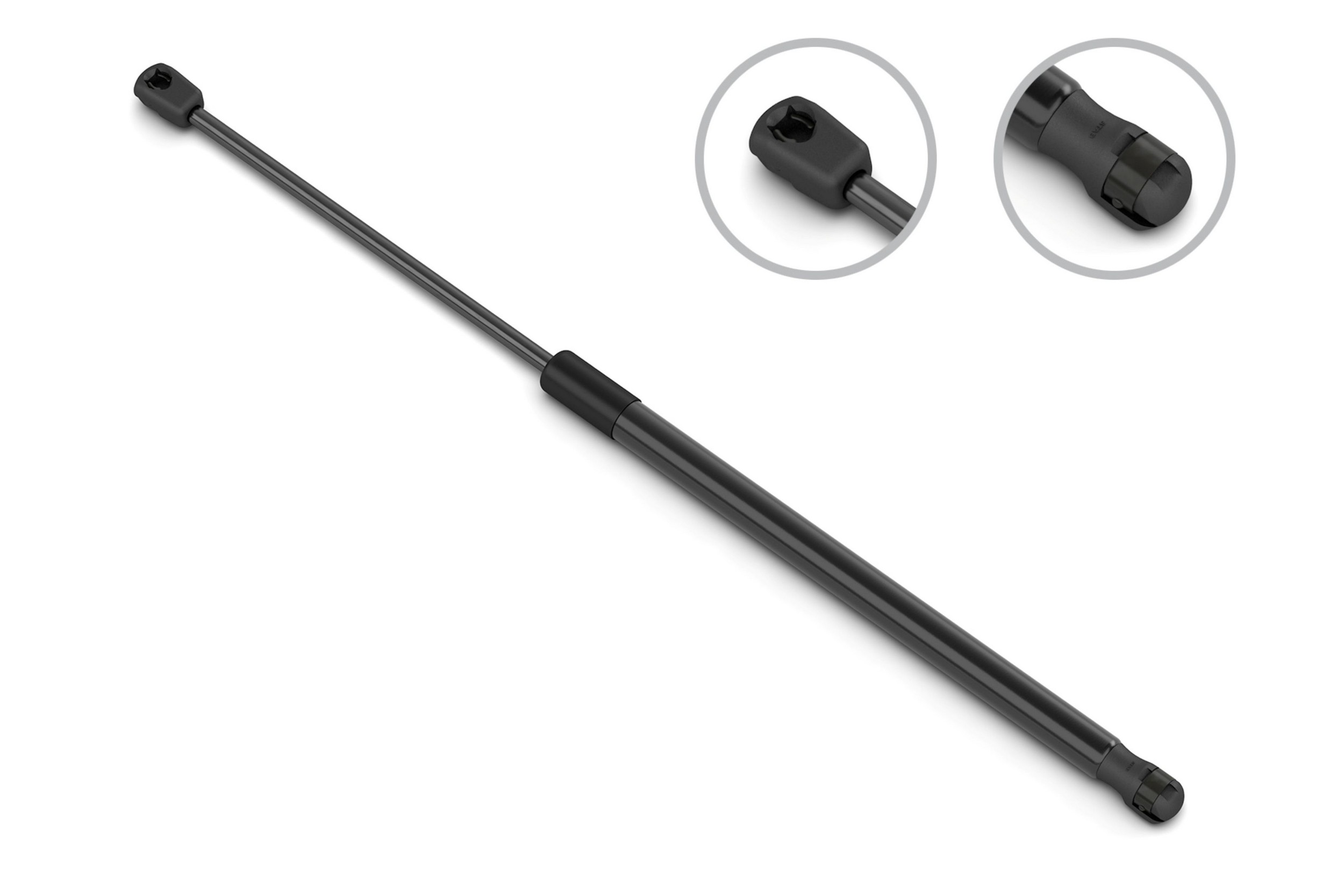

Stabilus 5B-631006 HOOD LIFT SUPPORT, 11.5 INCH, 24-19 GENESIS Pack of 2

Stabilus 5B-631006 HOOD LIFT SUPPORT, 11.5 INCH, 24-19 GENESIS Pack of 2

Stabilus 5B-631006 HOOD LIFT SUPPORT, 11.5 INCH, 24-19 GENESIS

A gas charged lift support with dynamic speed control.

Features:

Part coatings tested to automotive standards for corrosion resistance.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
Internal mechanical spring compresses in the closed position to give an added boost during initial opening.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.

Stabilus LIFT-O-MAT gas pressure springs are used whenever loads need to be lifted or lowered in a controlled manner. They provide force assist and damping properties that ensure optimum weight equalization. With LIFT-O-MAT, opening and closing doors and lids becomes child’s play, delivering safe, user-friendly motion sequences.

Attributes:

End 1 Type	Ball Socket
Type	GAS
3890	Nylon
Cylinder Outside Diameter	0.709 IN
End2 Mount Diameter	10 MM
End 2 Type	Ball Socket
Cylinder Outside Diameter	18 MM
End1 Mount Diameter	10 MM
Inner Shaft Diameter	0.315 IN
3889	Nylon
Stroke Length	3.9 IN
Compressed Length	7.6 IN
Mounting Hardware Included	No
Stroke Length	99 MM
Inner Shaft Diameter	8 MM
End1 Mount Diameter	0.394 IN
End2 Mount Diameter	0.394 IN
Maximum Force	62 LB
Extended Length	292 MM
Compressed Length	193 MM
Extended Length	11.5 IN
Maximum Force	275 NW
