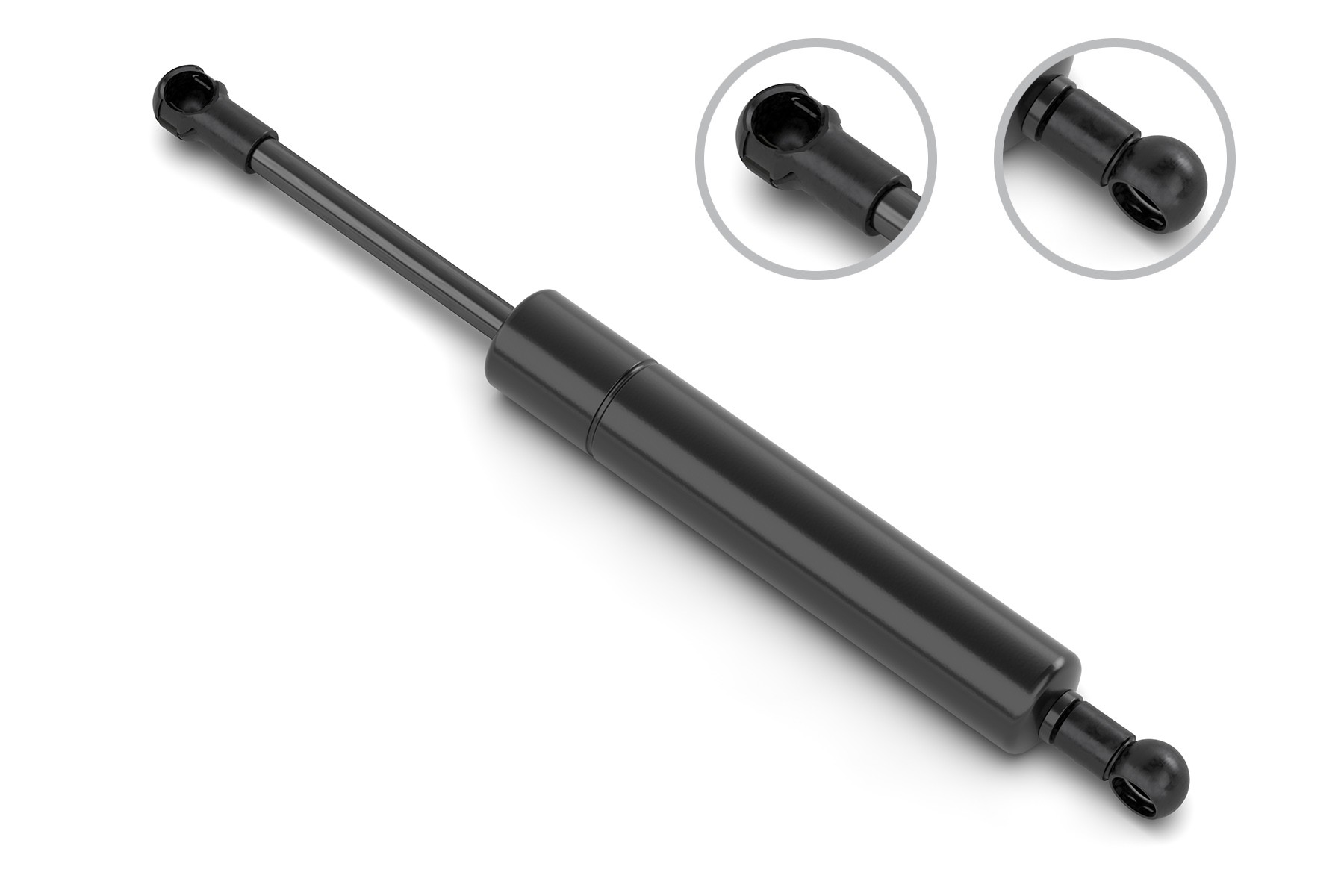

Stabilus 5B-8491UM LIFTGATE LIFT SUPPORT, 13.68 INCH, 06-04 MERCEDES

A gas charged lift support with dynamic speed control.

Features:

Part coatings tested to automotive standards for corrosion resistance.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
No bouncing or jerking during cycling.
Dynamic damping speed control creates a fluid opening motion.
Easy to install and require no special tools.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat with dynamic damping sets a new standard in controlled motion, delivering refined, adaptable performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping? Dynamic Damping Technology: Continuous gas flow controlled by custom groove geometry delivers superior motion control and precision. OE-Preferred Solution: The damping technology specified by leading automakers for refined, consistent performance. Superior Performance: Engineered to deliver performance and precision beyond what hydraulic damping systems can achieve. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that delivers superior, engineered performance and a smooth, gentle stop every time.

Attributes:

Stroke Length	100 MM
Type	GAS
3889	Steel
3890	Steel
Maximum Force	1300 NW
End2 Mount Diameter	13.0 MM
End1 Mount Diameter	13.0 MM
Extended Length	13.68 IN
Compressed Length	9.74 IN
Stroke Length	3.94 IN
Inner Shaft Diameter	0.394 IN
End 2 Type	Ball Socket
Cylinder Outside Diameter	1.142 IN
End1 Mount Diameter	0.512 IN
End2 Mount Diameter	0.512 IN
Maximum Force	292 LB
Extended Length	347.5 MM
Compressed Length	247.5 MM
Inner Shaft Diameter	10 MM
End 1 Type	Ball Socket
Cylinder Outside Diameter	29 MM
Mounting Hardware Included	No
