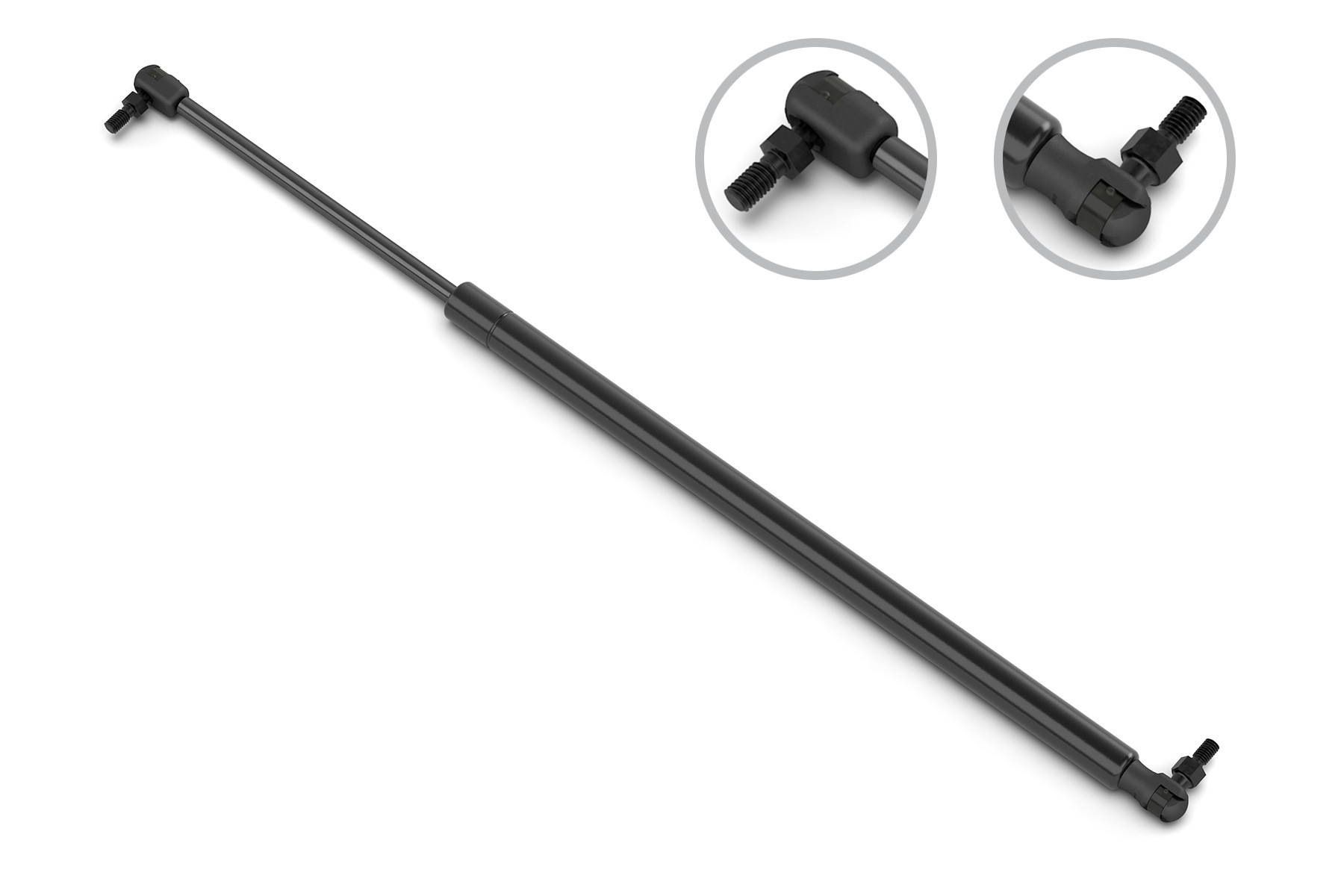

Stabilus 5B-854703 LIFTGATE LIFT SUPPORT, 14.17 INCH, 04-00 MITSUBISHI Pack of 2

Stabilus 5B-854703 LIFTGATE LIFT SUPPORT, 14.17 INCH, 04-00 MITSUBISHI Pack of 2

Stabilus 5B-854703 LIFTGATE LIFT SUPPORT, 14.17 INCH, 04-00 MITSUBISHI

A hydraulically dampened gas charged lift support.

Features:

Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
Clog free design prevents binding due to contamination.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

Mounting Hardware Included	No
End1 Mount Diameter	0.394 IN
Stroke Length	113.5 MM
Type	GAS
End2 Mount Diameter	0.394 IN
Maximum Force	169 LB
Extended Length	360 MM
Compressed Length	246.5 MM
End 2 Type	Ball Socket
End 1 Type	Ball Socket
3890	Nylon
3889	Nylon
Maximum Force	750 NW
End2 Mount Diameter	10.0 MM
End1 Mount Diameter	10.0 MM
Cylinder Outside Diameter	22 MM
Inner Shaft Diameter	10 MM
Extended Length	14.17 IN
Compressed Length	9.71 IN
Stroke Length	4.46 IN
Inner Shaft Diameter	0.394 IN
Cylinder Outside Diameter	0.866 IN
