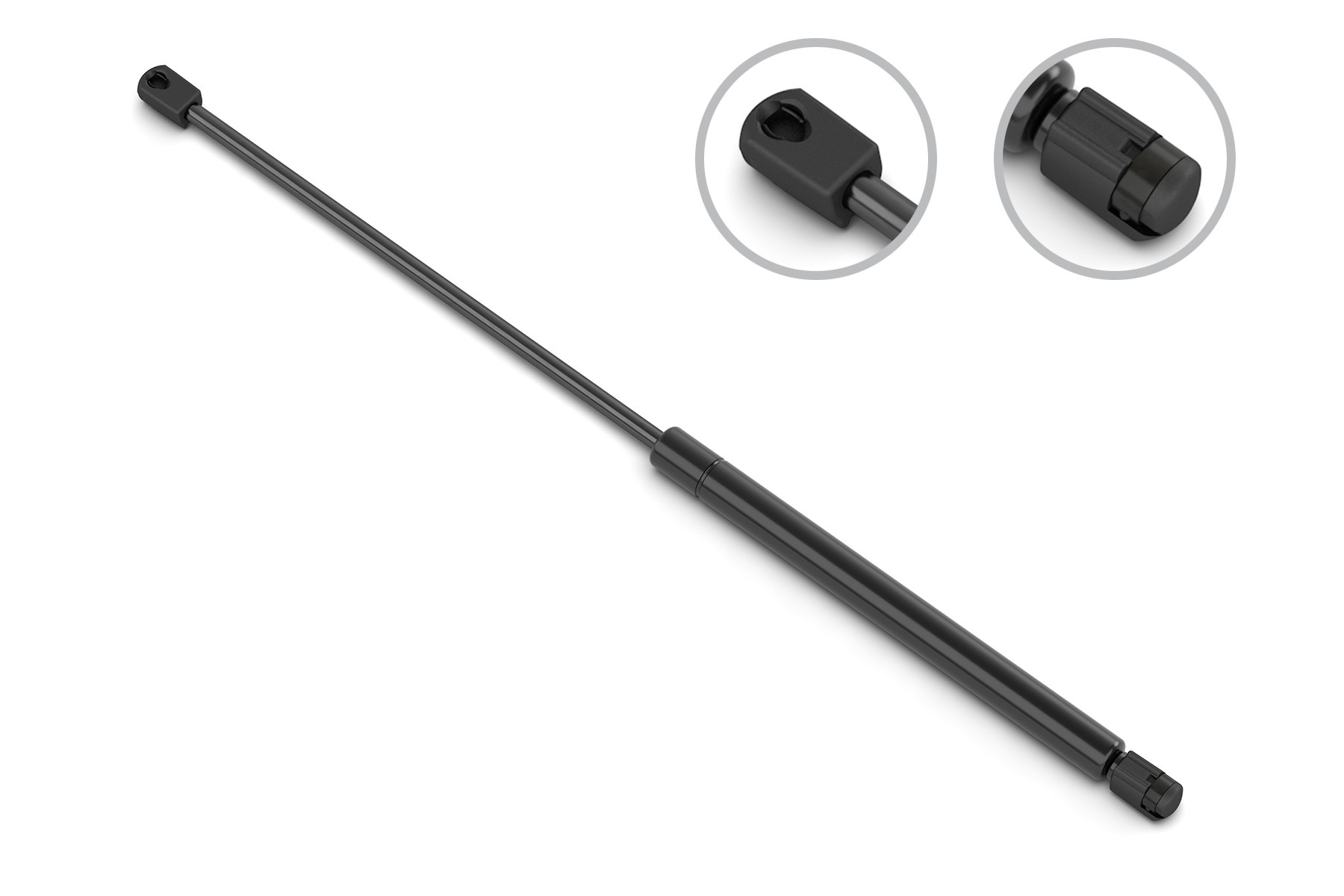

Stabilus 5D-9923VY HOOD LIFT SUPPORT, 12.01 INCH, 06-03 DODGE Pack of 2

Stabilus 5D-9923VY HOOD LIFT SUPPORT, 12.01 INCH, 06-03 DODGE Pack of 2

Stabilus 5D-9923VY HOOD LIFT SUPPORT, 12.01 INCH, 06-03 DODGE

A gas charged lift support with multiple stopping positions within the stroke.

Features:

Special coil spring supported piston reduces the extension force
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
Allows the application to be held open at multiple predetermined angles.

Interstop by Stabilus – Precision Control with Dynamic Damping. Interstop by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. The unique segmented groove design creates predefined stopping points along the stroke, enabling precise control over extension movement at exactly where it’s needed. An integrated coil spring supported piston package reduces extension force, allowing the lift support to be easily stopped at desired points without additional hardware. The groove profile is expertly crafted to ensure gentle, controlled stops with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Interstop offers OE performance and design across industries requiring precision control. When your application requires the ability to stop at specific positions during operation, choose Interstop by Stabilus – the only aftermarket solution that delivers true OE-level performance with predefined stopping control. Why Choose Interstop? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Predefined Stopping Points: Segmented groove design enables precise stops at specific stroke positions. Integrated Coil Spring Package: Reduces extension force for effortless stopping at desired points. OE-Preferred Solution: Advanced features specified by leading automakers for refined, controlled performance. Choose Interstop by Stabilus for precision control and effortless operation with every use.

Attributes:

Maximum Force	745 NW
3889	Nylon
3890	Nylon
Mounting Hardware Included	No
End 1 Type	Ball Socket
End 2 Type	Ball Socket
Type	GAS
Extended Length	12.01 IN
Compressed Length	8.07 IN
Stroke Length	3.94 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	0.748 IN
End1 Mount Diameter	0.315 IN
End2 Mount Diameter	0.394 IN
Maximum Force	167 LB
Extended Length	305 MM
Compressed Length	205 MM
Stroke Length	100 MM
Inner Shaft Diameter	8 MM
Cylinder Outside Diameter	19 MM
End1 Mount Diameter	8.0 MM
End2 Mount Diameter	10.0 MM
