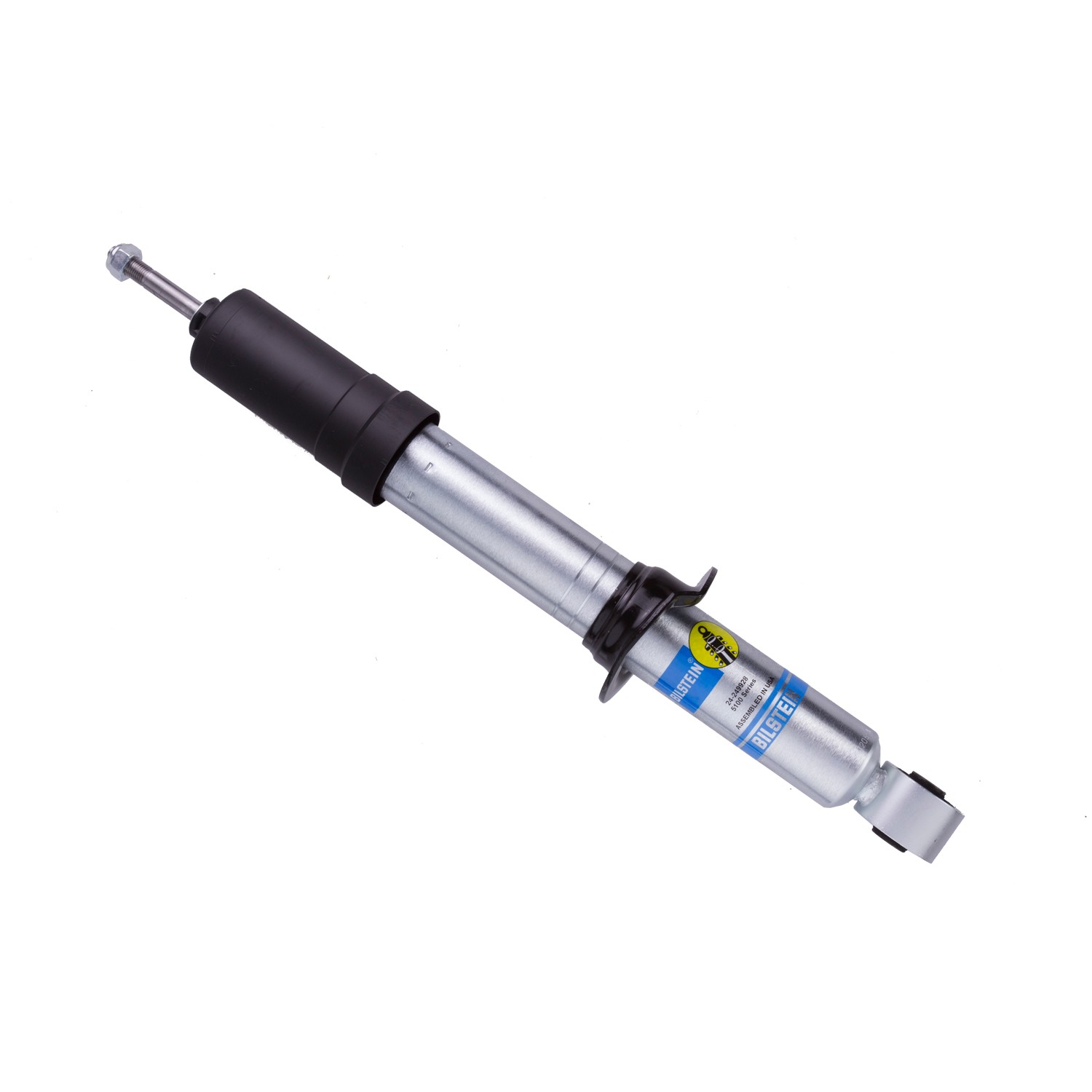

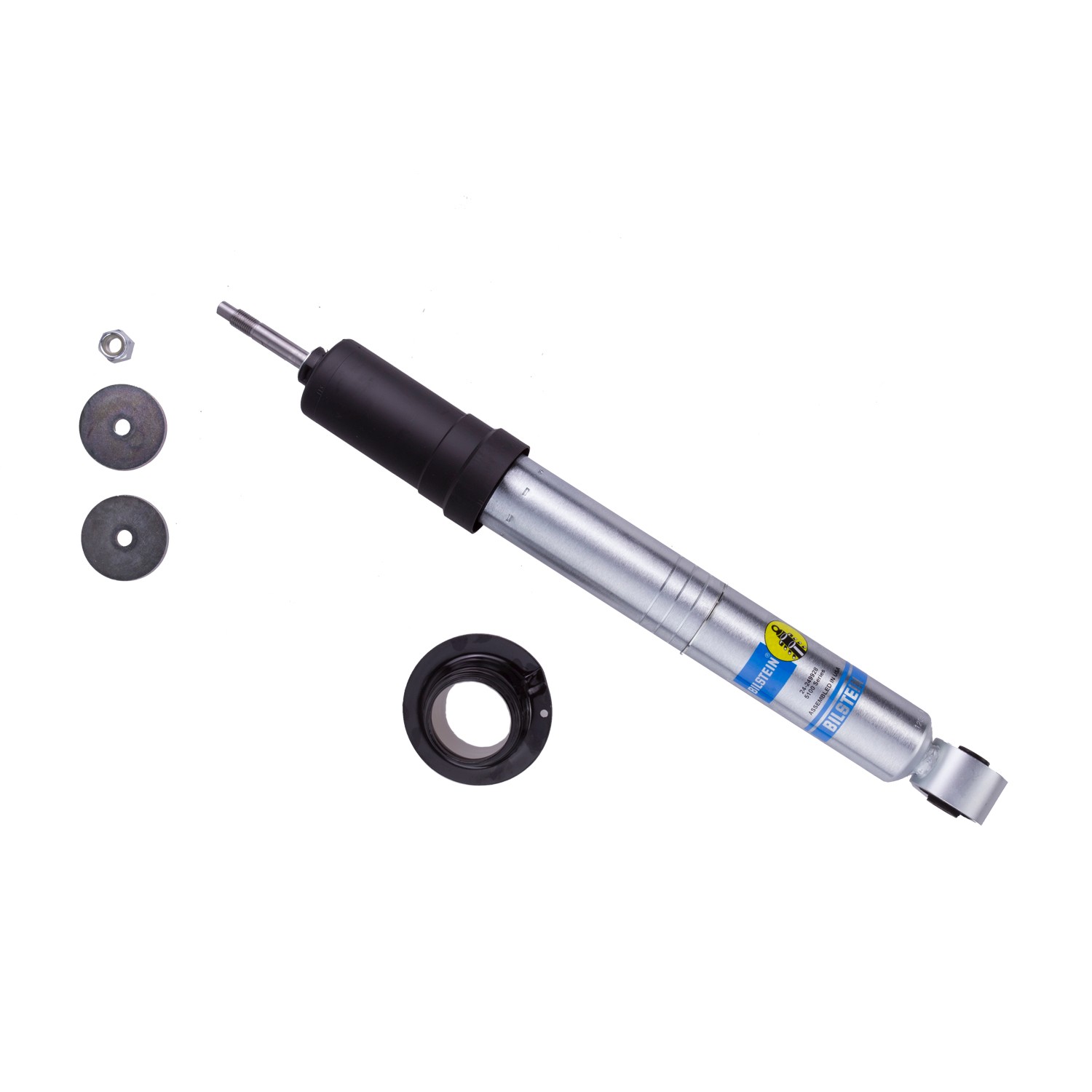

Bilstein 24-249928 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber Pack of 2

Bilstein 24-249928 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber Pack of 2

Bilstein 24-249928 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

46mm monotube design ensures consistent, fade-free performance in all conditions
Adjustable spring seat offers 0-2.75in of lift, depending on the application
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Attributes:

Upper Mount Type	Stem
PartType	Shocks / Struts
Reservoir	No
Adjustable Damping	Non-Adjustable
Stroke/Travel Length (mm)	121.9
Internal Design	Monotube
Lower Mount Type	Eye 14.2mm
Segment	Light Truck
Collapsed Length (MM)	352.0
Title	Bilstein Shock Absorbers
Finish	Zinc Plated
Extended Length (IN)	18.66
Series	B8 5100 (Ride Height Adjustable)
Collapsed Length (IN)	13.86
Spring Seat Included	Yes
Boot Included	Black Straight
Shaft Diameter	14mm
Body Design	Snap Ring Grooved Body (Coilover)
Piston Diameter	46mm
Extended Length (MM)	474.0
Stroke/Travel Length (IN)	4.80
