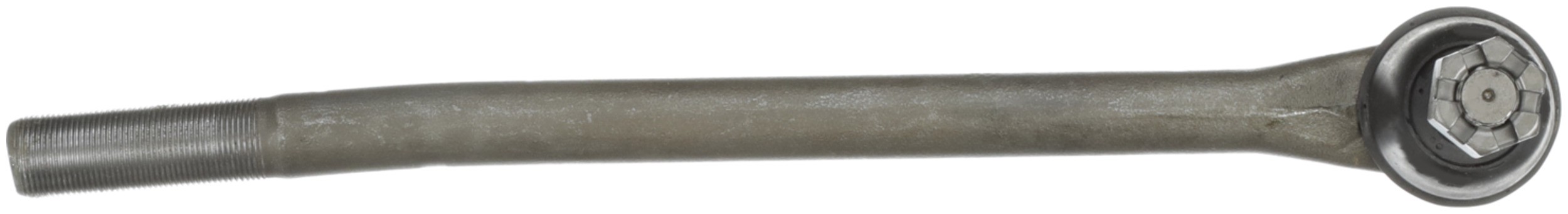

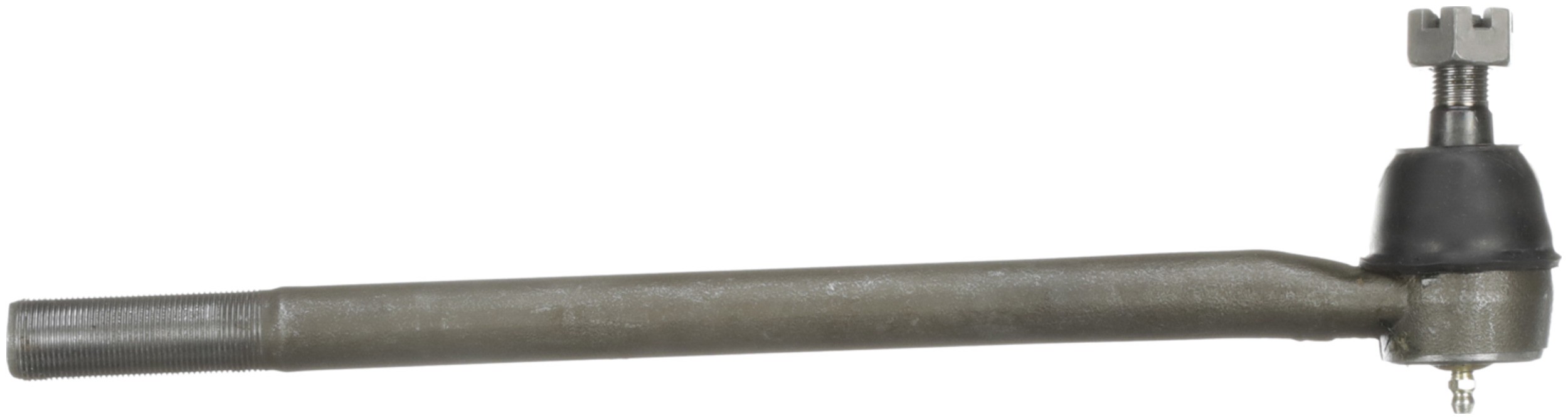

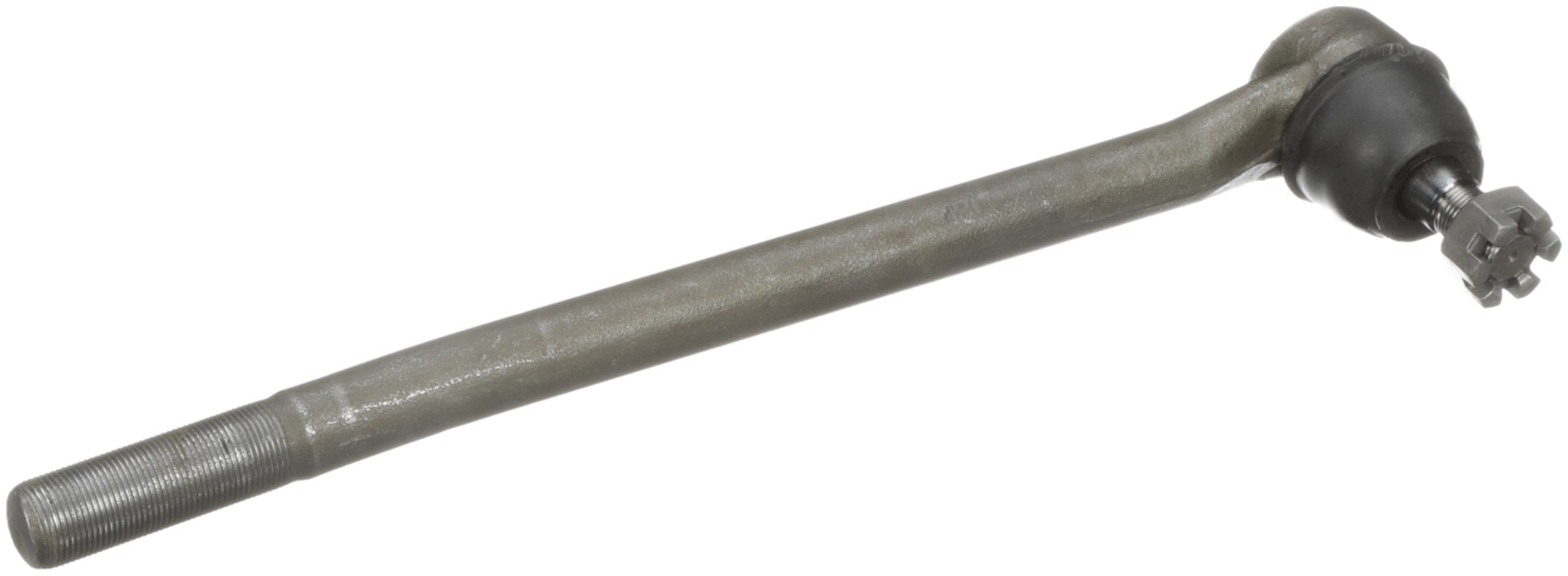

Delphi TA5740 Steering Tie Rod End

Delphi TA5740 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
1786	0.659 IN
1786	16.74 MM
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	Yes
Greaseable	Yes
Boot Colour	Black
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
662	16.74 MM
662	0.659 IN
627	3.22 LB
Length	373.90 MM
Stud Length	0.659 IN
Stud Length	16.74 MM
Width	44 MM
Height	102.00 MM
Length – Stud Centre to End	14.724 IN
Length – Stud Centre to End	374.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
9091	Steel
9090	Chloroprene Rubber (CR)
881	Threaded
Position(s)	Inner, Left Inner. For the position specific to your vehicle, refer to the Applications.

Vehicle Applications:

Make	Model	Years
Dodge	B2500	1995 to 1998
Dodge	B250	1994 to 1994
Dodge	B300	1979 to 1980
Dodge	B3500	1995 to 1998
Dodge	B350	1981 to 1994
Dodge	CB300	1979 to 1980
Dodge	Ram 1500 Van	1999 to 2000
Dodge	Ram 2500 Van	1999 to 2003
Dodge	Ram 3500 Van	1999 to 2003
Plymouth	PB300	1979 to 1980
Plymouth	PB350	1981 to 1983
