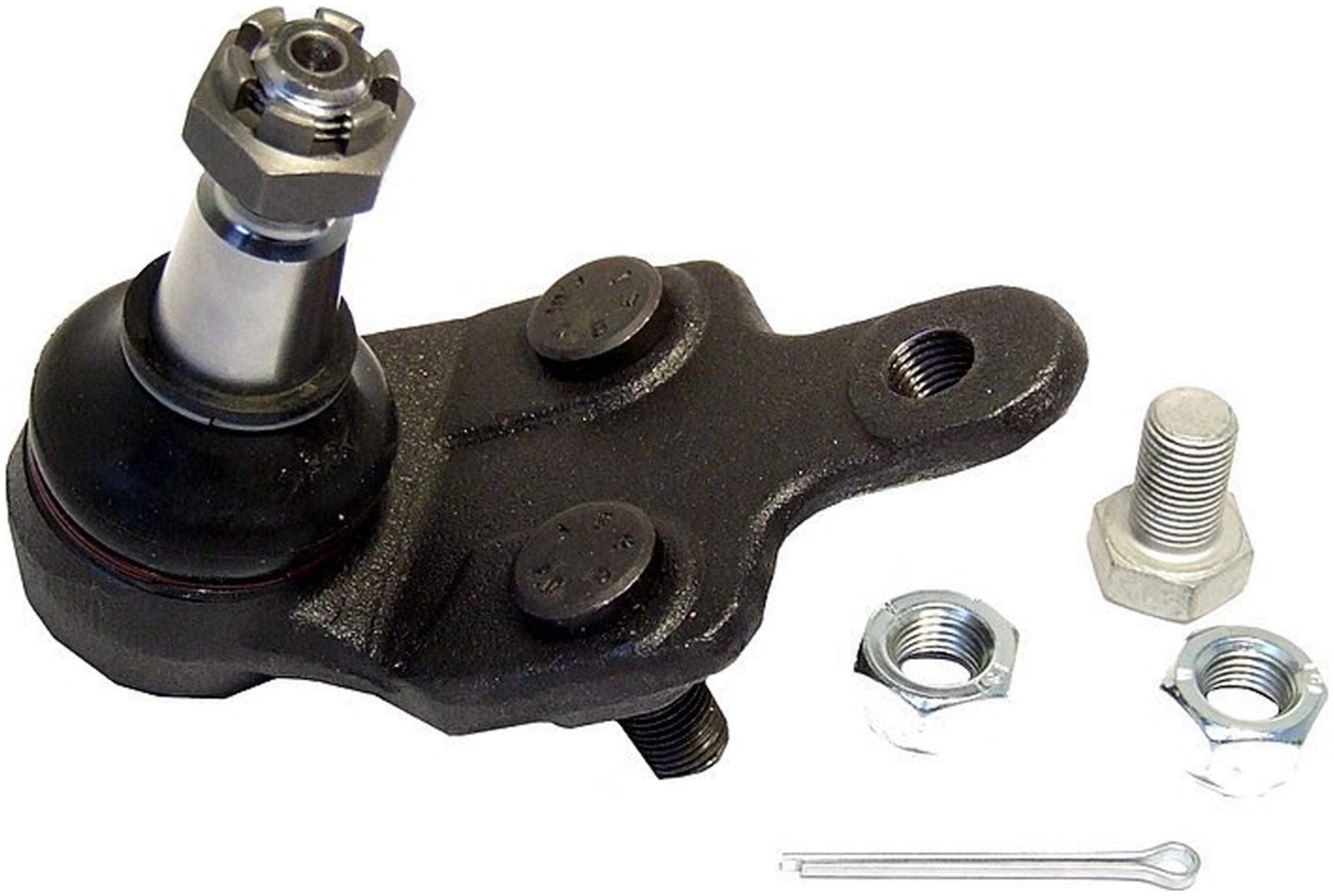

Delphi TC1514 Suspension Ball Joint

Delphi TC1514 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Adjustable	No
Mounting Hole Quantity	3
Washers Included	Yes
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
881	Threaded
9090	Rubber
9204	Yes
9209	No
9210	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Steel
3068	1.063 IN
Height	92.10 MM
Height	3.626 IN
Width	71.5 MM
Maximum Outside Diameter	44.80 MM
Maximum Outside Diameter	1.764 IN
2381	Yes
2334	Yes
Position(s)	Front Left Lower
2827	Yes
839	19mm
3068	27.00 MM
4966	0.728 IN
4966	18.5 MM
9058	41.50 MM
9202	0.472 IN
9202	12.00 MM
9203	0.866 IN
9203	22.00 MM
9207	0.787 IN
9207	20.00 MM
9212	0.827 IN
9212	21 MM
9213	0.689 IN
9213	17.5 MM
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In

Vehicle Applications:

Make	Model	Years
Lexus	ES300	2002 to 2003
Lexus	ES330	2004 to 2006
Lexus	RX330	2004 to 2006
Lexus	RX350	2007 to 2009
Lexus	RX400h	2006 to 2008
Toyota	Camry	2002 to 2006
Toyota	Highlander	2001 to 2007
Toyota	Sienna	2004 to 2010
Toyota	Solara	2004 to 2008
