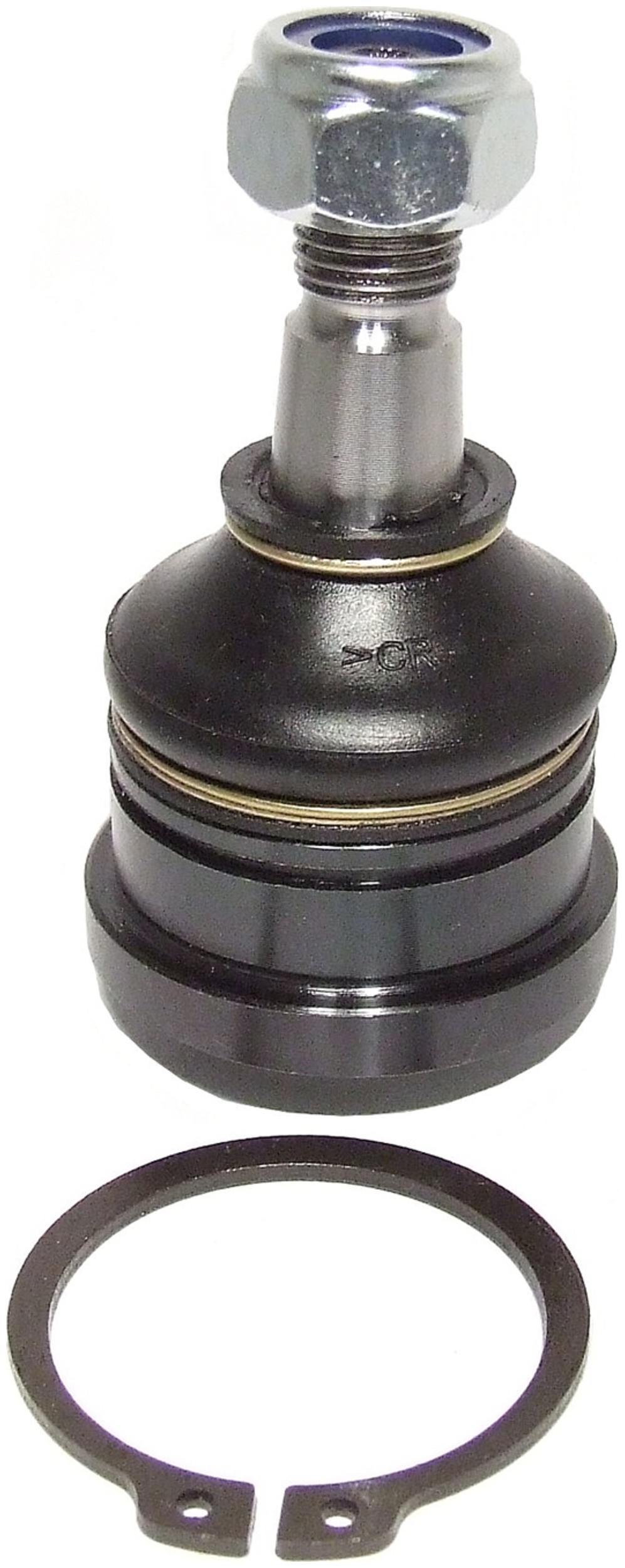

Delphi TC1631 Suspension Ball Joint

Delphi TC1631 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Maximum Outside Diameter	1.870 IN
Maximum Outside Diameter	47.50 MM
Width	47.5 MM
Height	3.465 IN
Height	88.00 MM
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
4966	0.866 IN
4966	22 MM
9211	0.125 IN
9212	0.581 IN
9212	14.75 MM
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	Yes
9210	Yes
Position(s)	Front Lower
2381	Yes
881	Threaded
Greaseable	No
Adjustable	No
9213	16.6 MM
9213	0.654 IN
9209	No
9204	No
