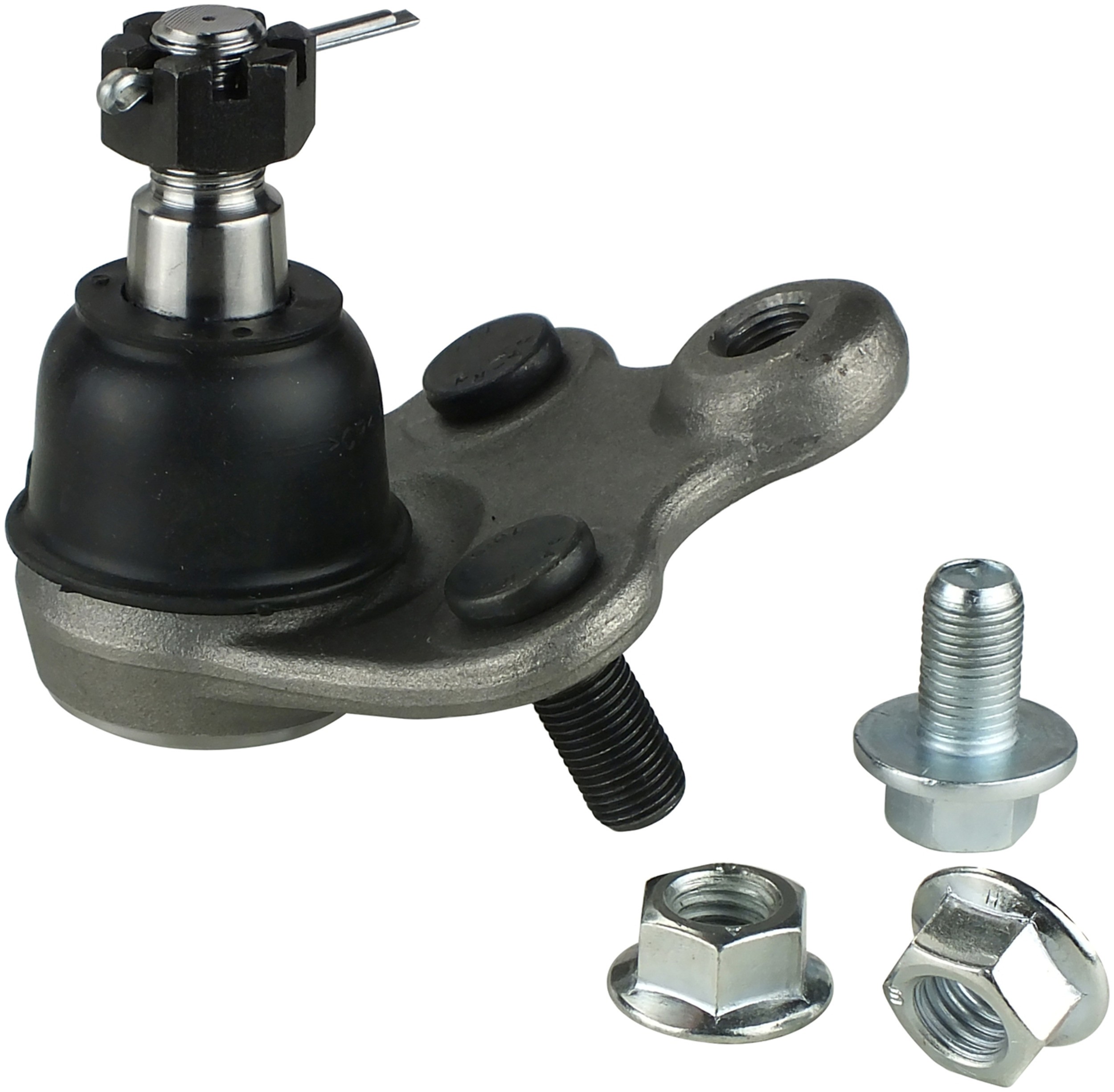

Delphi TC2627 Suspension Ball Joint

Delphi TC2627 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Suspension Grade Type	Standard Replacement
3068	20.00 MM
Adjustable	No
Mounting Hole Quantity	3
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
3068	0.787 IN
839	16mm
2827	Yes
2381	Yes
2334	Yes
Position(s)	Front Lower
4966	22 MM
Height	87.00 MM
9203	26.60 MM
9203	1.047 IN
9202	0.470 IN
9202	12.00 MM
Height	3.327 IN
Width	112 MM
Maximum Outside Diameter	27.00 MM
Maximum Outside Diameter	1.063 IN
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Greaseable	No
Mounting Type	Bolt-In
4966	0.866 IN
9213	20 MM
9213	0.787 IN
9212	17.4 MM
9210	Yes
9212	0.685 IN
9211	0.125 IN
9207	0.710 IN
9207	18.00 MM
9209	No
9204	Yes
9090	Rubber
881	Threaded
