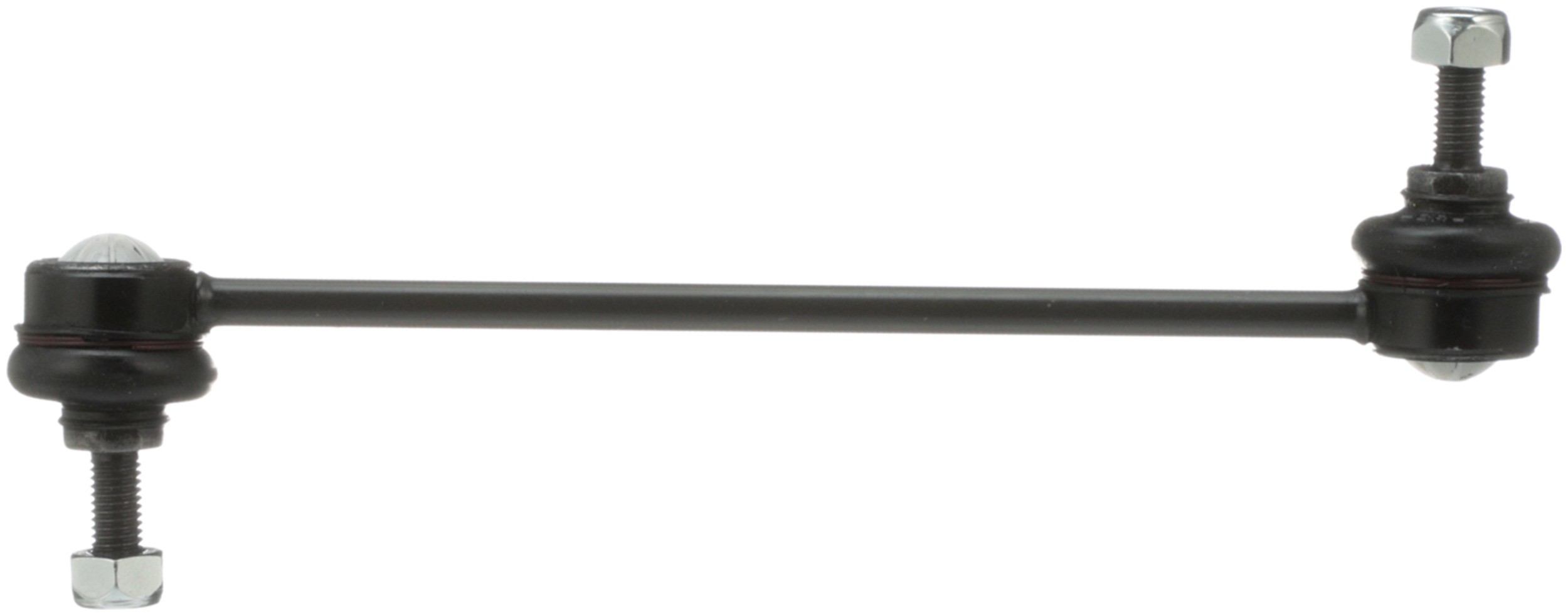

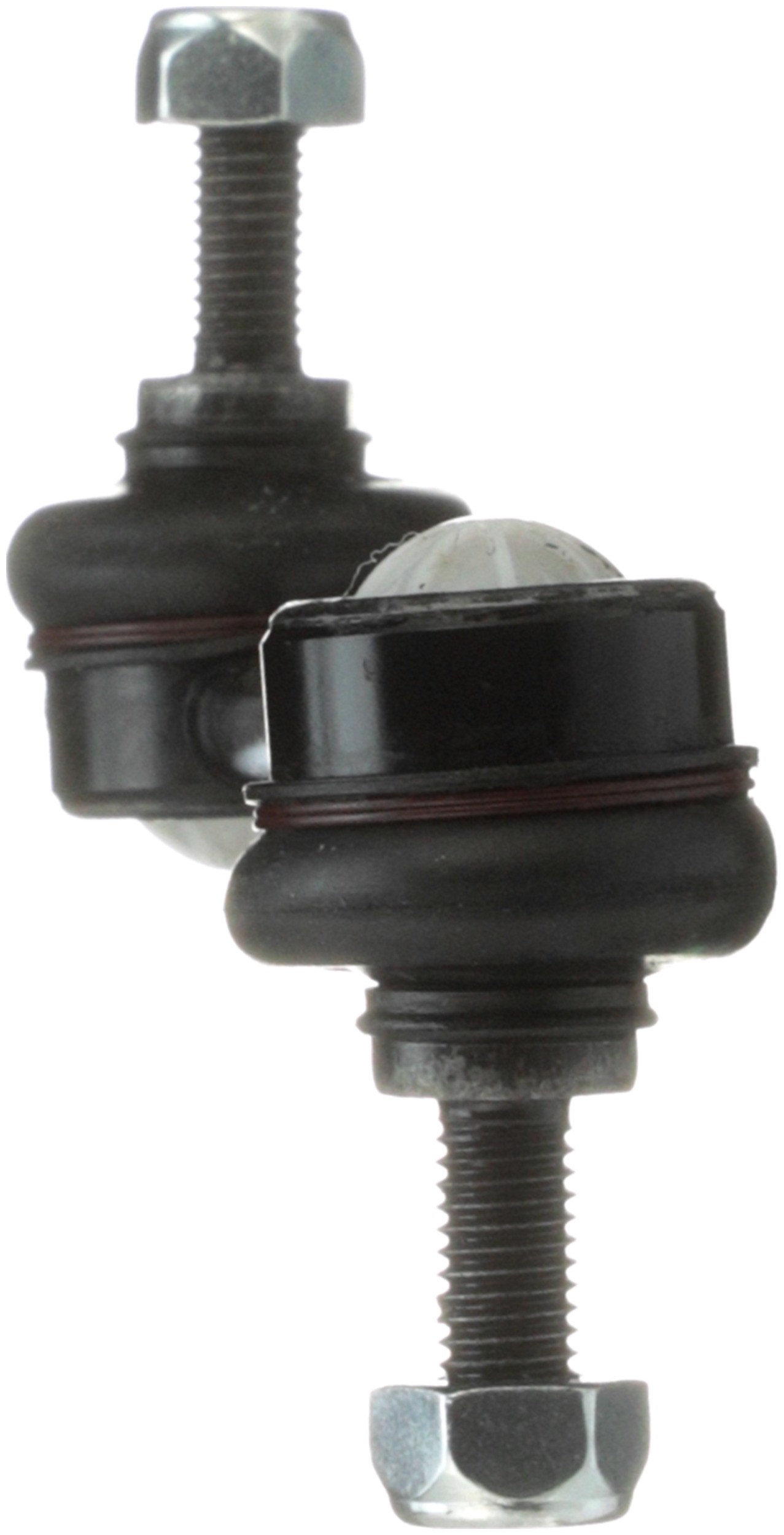

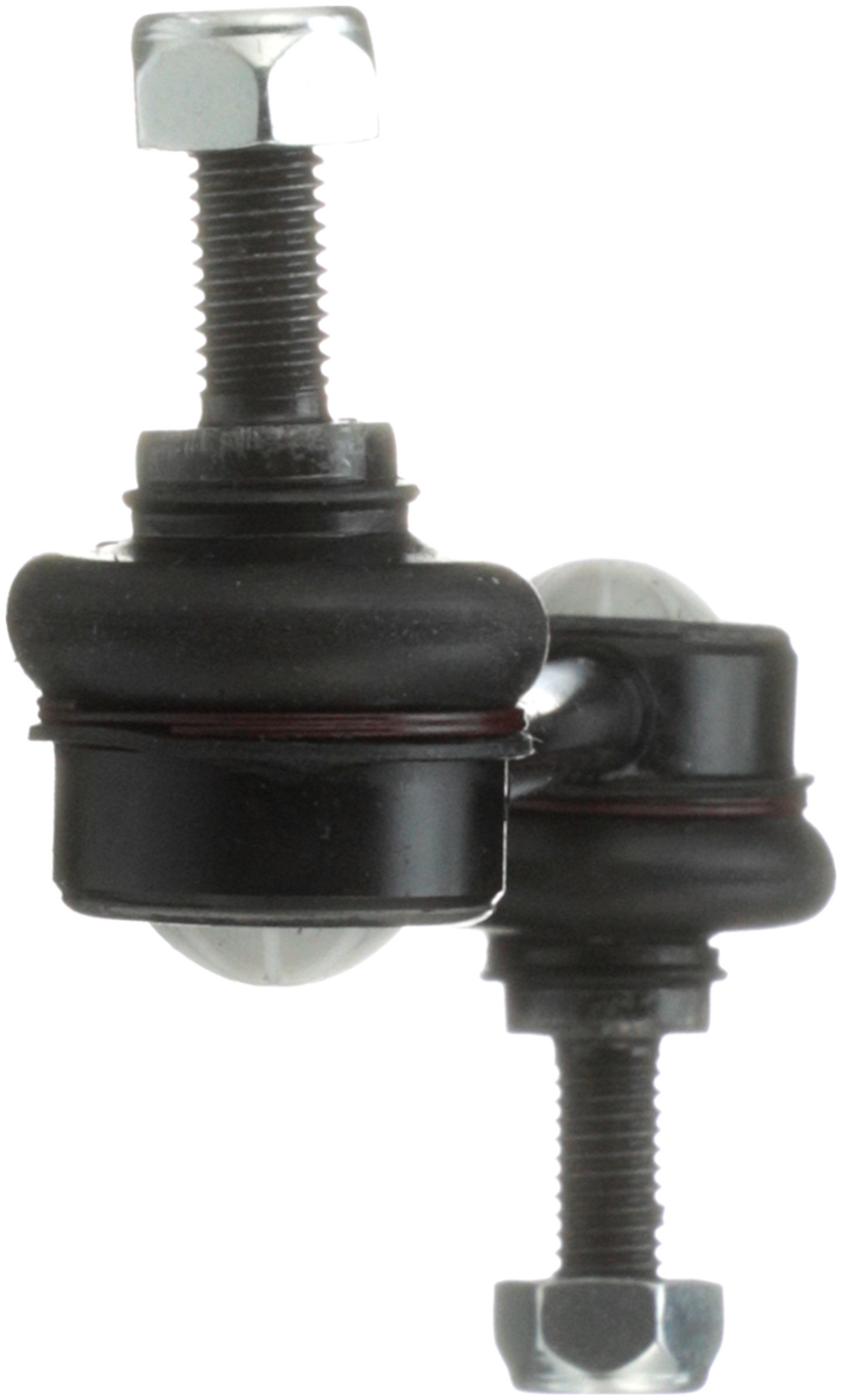

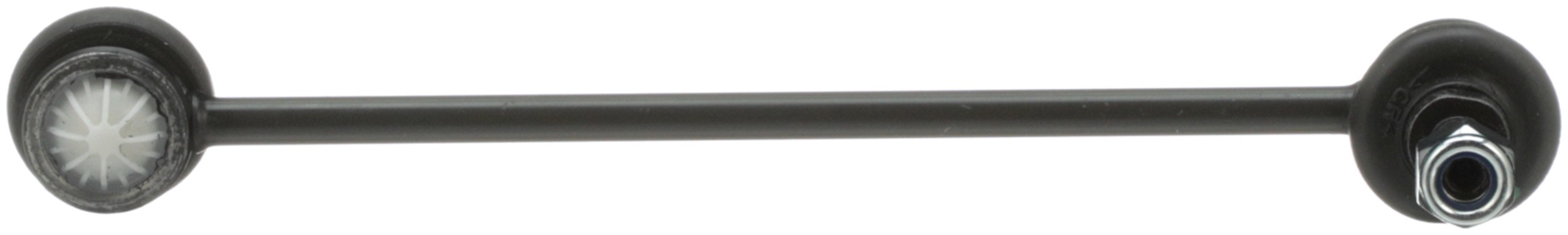

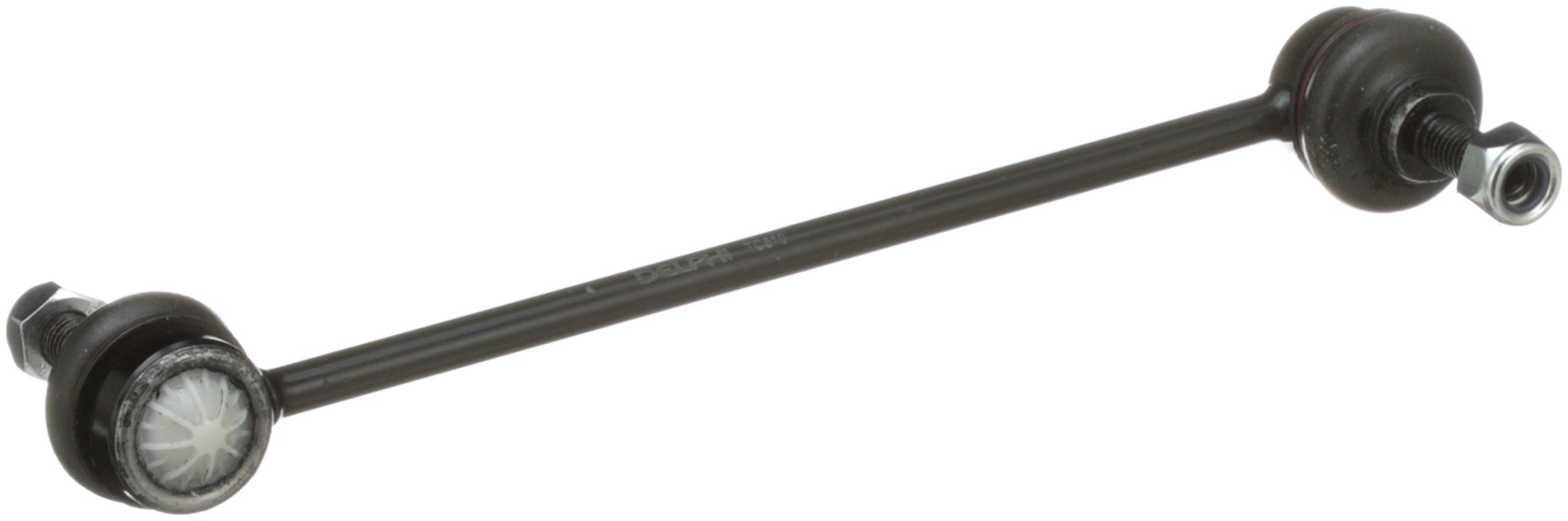

Delphi TC510 Suspension Stabilizer Bar Link

Delphi TC510 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolt Length	9.488 IN
627	0.78 LB
Bushing Type	Rubber
Position(s)	Front
9296	Yes
Grade Type	Standard Replacement
Width	1.575 IN
Width	40 MM
Length	241.00 MM
Length	9.488 IN
Height	3.543 IN
Greaseable	No
Housing Material	Steel
Height	90.00 MM
Bolts Included	No
Washers Included	No
Dust Boot Included	Yes
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
Bushing Colour	Black
Bolt Length	241.00 MM

Vehicle Applications:

Make	Model	Years
BMW	524td	1985 to 1986
BMW	525i	1989 to 1995
BMW	525iT	1993 to 1993
BMW	528e	1984 to 1988
BMW	530i	1994 to 1995
BMW	533i	1983 to 1984
BMW	535i	1985 to 1993
BMW	535is	1988 to 1988
BMW	540i	1994 to 1995
BMW	633CSi	1983 to 1984
BMW	635CSi	1985 to 1989
BMW	735i	1986 to 1992
BMW	735iL	1988 to 1992
BMW	750iL	1988 to 1995
BMW	840Ci	1994 to 1997
BMW	850CSi	1994 to 1995
BMW	850Ci	1993 to 1997
BMW	850i	1991 to 1992
BMW	M3	1988 to 1991
BMW	M5	1988 to 1993
BMW	M6	1987 to 1988
