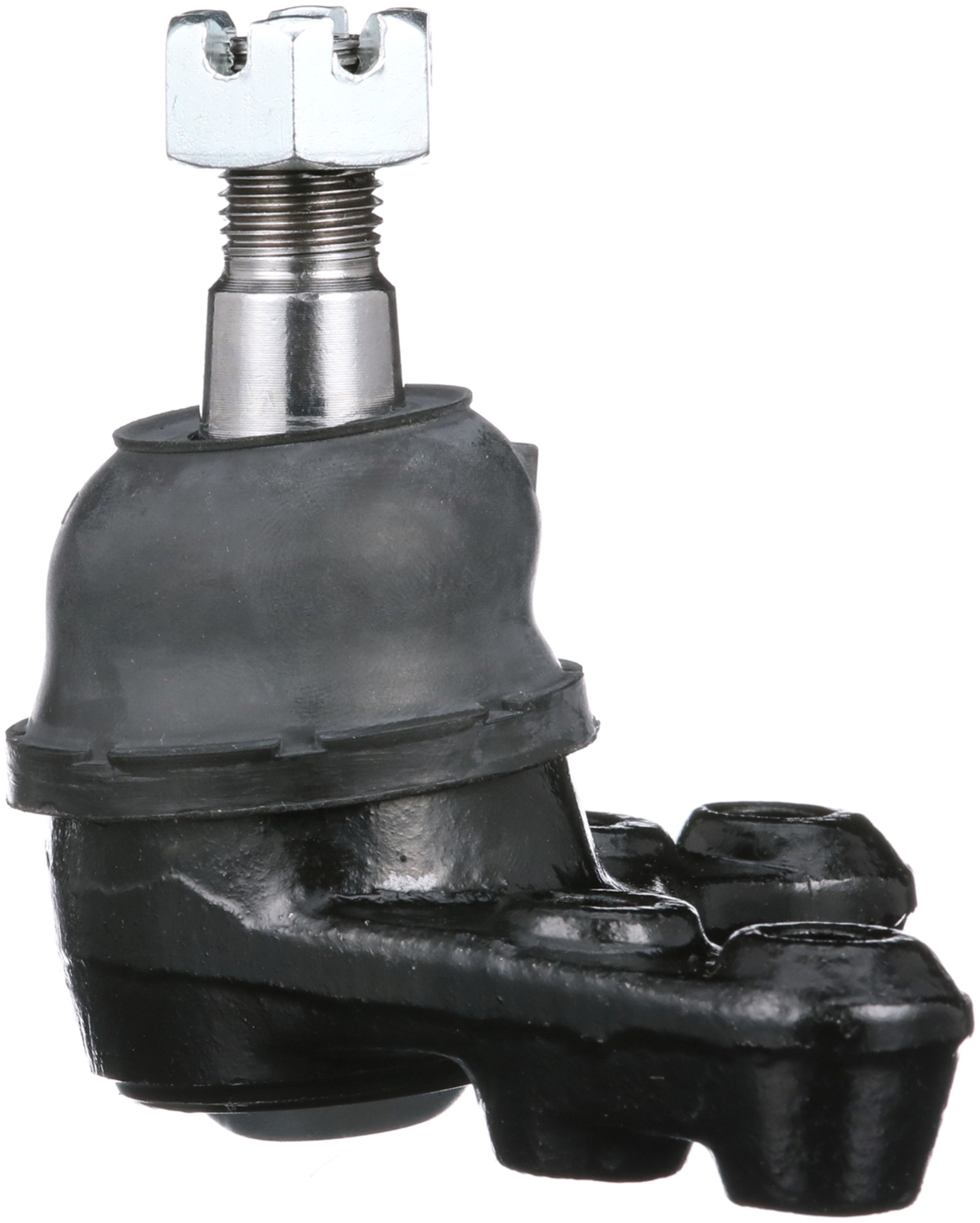

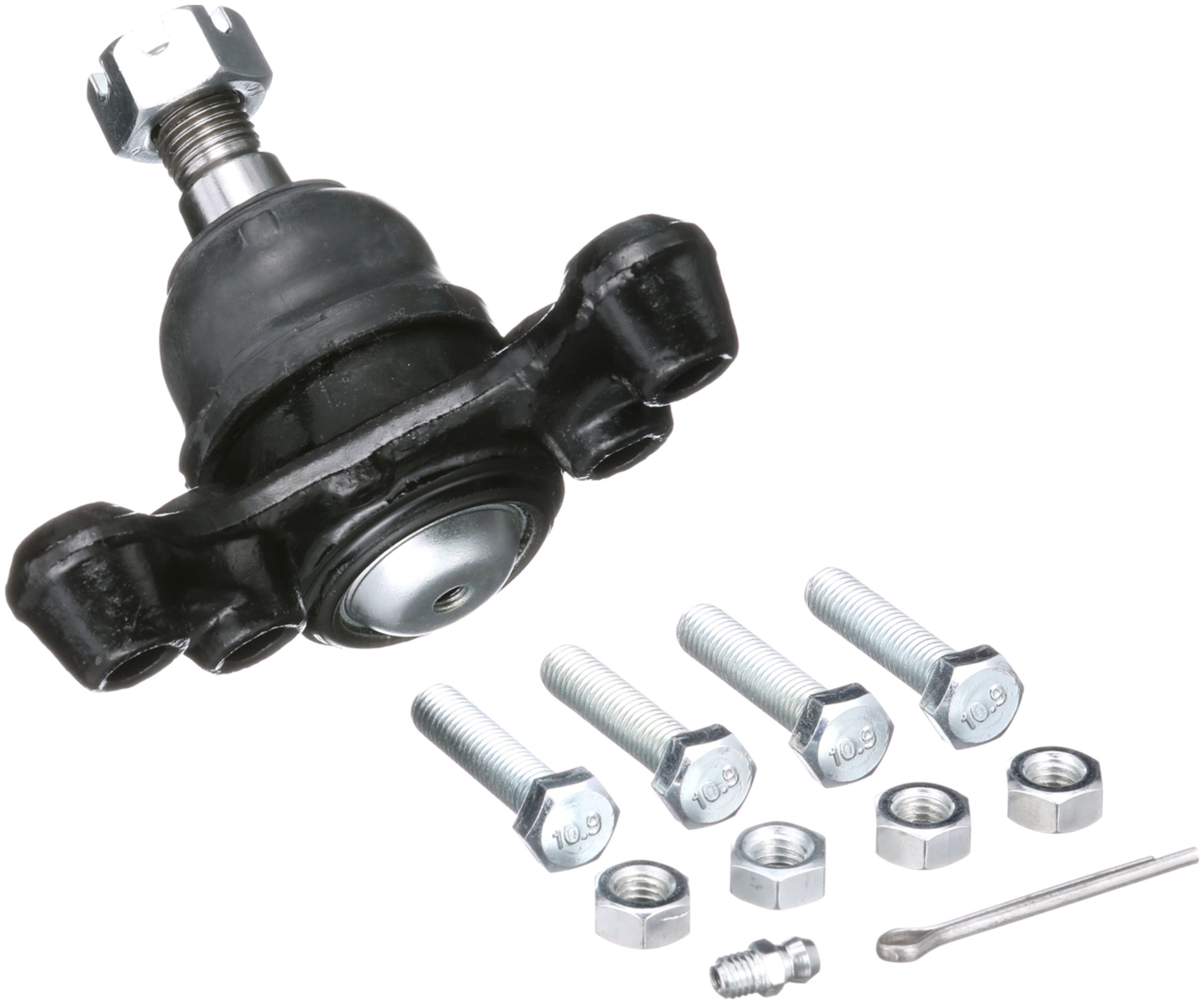

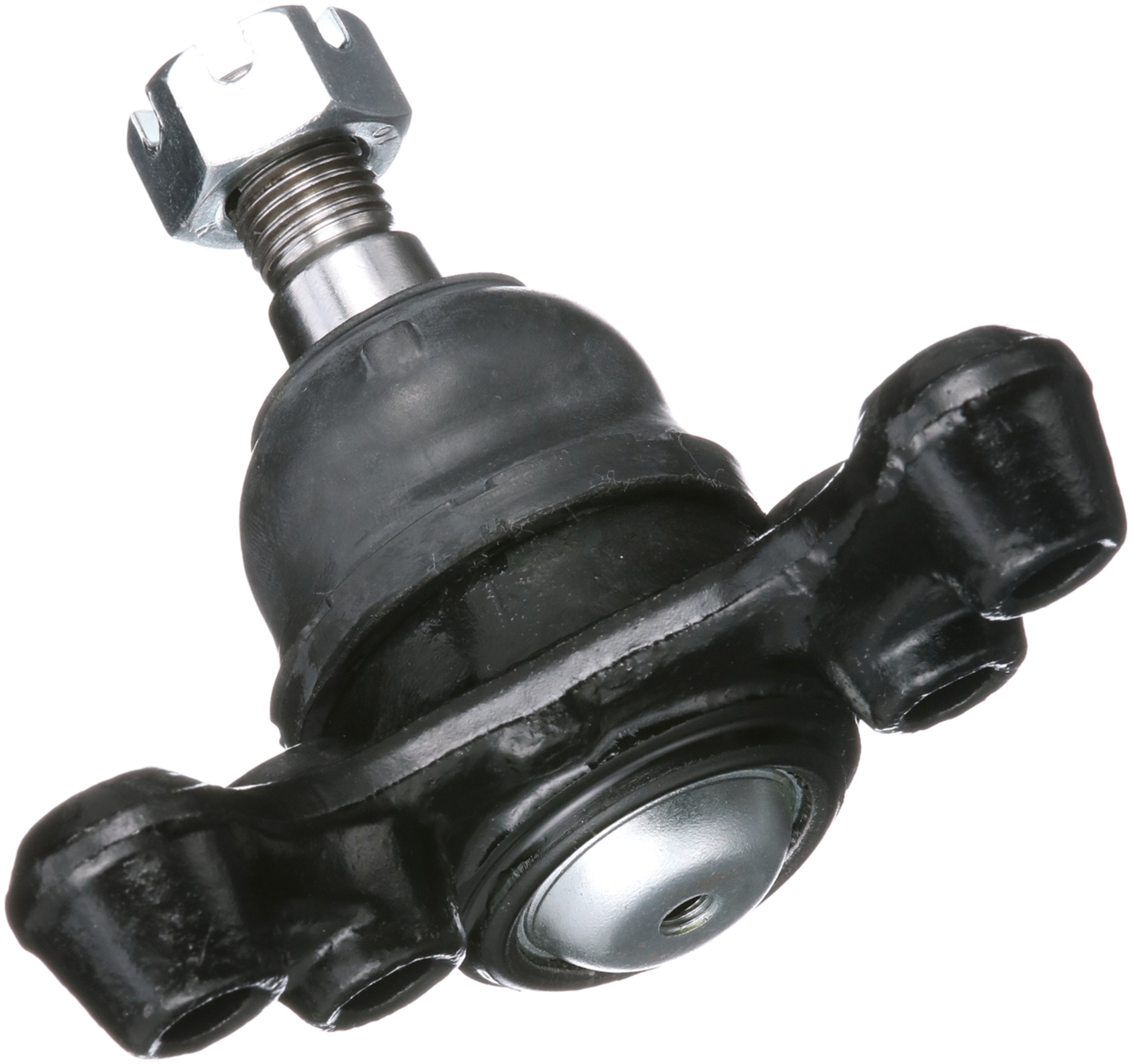

Delphi TC5139 Suspension Ball Joint

Delphi TC5139 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Type	Threaded
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Mounting Hole Diameter	9.00 MM
881	Threaded
9209	No
9906	Yes
Height	3.46 IN
Height	88.00 MM
Washers Included	No
Mounting Hole Quantity	4
Adjustable	No
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
Thread Direction	Clockwise (Right)
Pre-greased	Yes
Grease Fitting Included	No
Bearing Type	Plastic
Greaseable	No
Boot Colour	Black
Length	76.00 MM
Maximum Outside Diameter	1.65 IN
Maximum Outside Diameter	42.00 MM
Position(s)	Front Left Upper
2334	Yes
2381	Yes
2827	Yes
9090	Rubber
9204	Yes
9210	Yes
Length	2.99 IN
Outside Diameter	42.00 MM
Width	3.97 IN
Width	101.00 MM
9212	0.70 IN
9212	18.00 MM
9207	1.37 IN
9207	35.00 MM
Mounting Hole Diameter	0.35 IN
9202	0.31 IN
9058	0.70 IN
4966	0.87 IN
4966	22.00 MM
3068	1.37 IN
3068	35.00 MM
9211	8 IN
9202	8.00 MM
9058	18.00 MM
Outside Diameter	1.65 IN
Material	Steel
Color	Black
Bushings Included	No
Dust Boot Included	Yes
