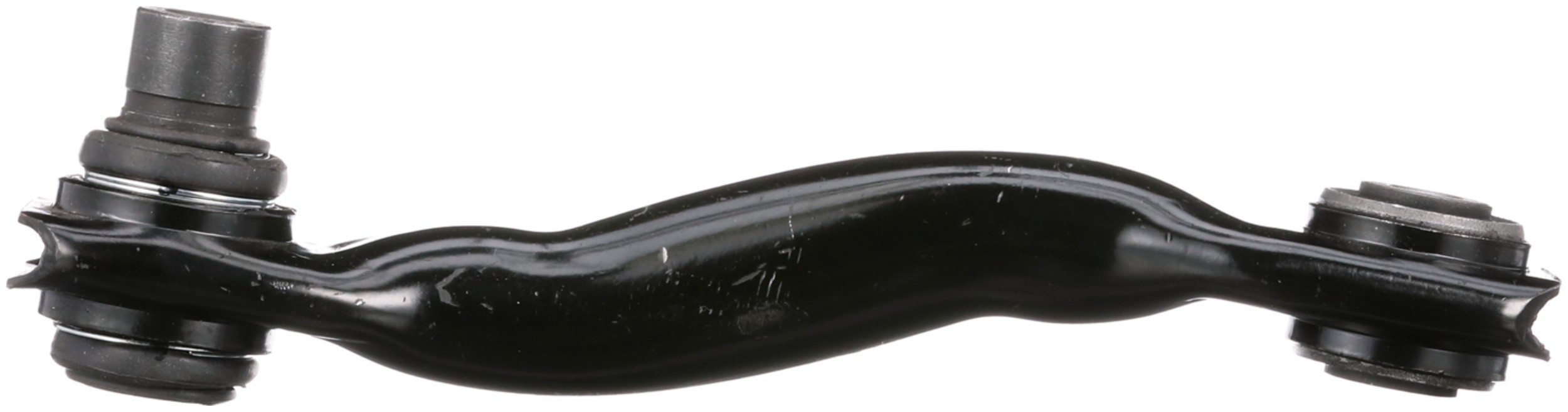

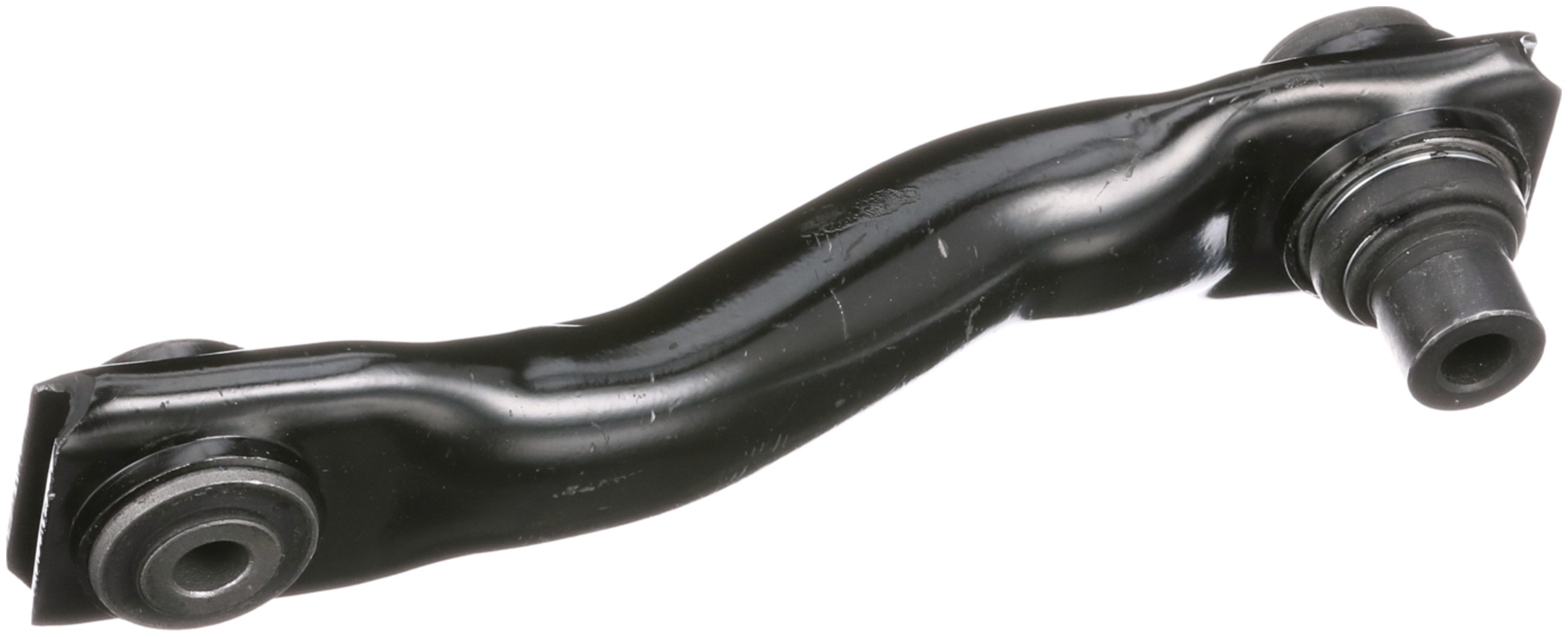

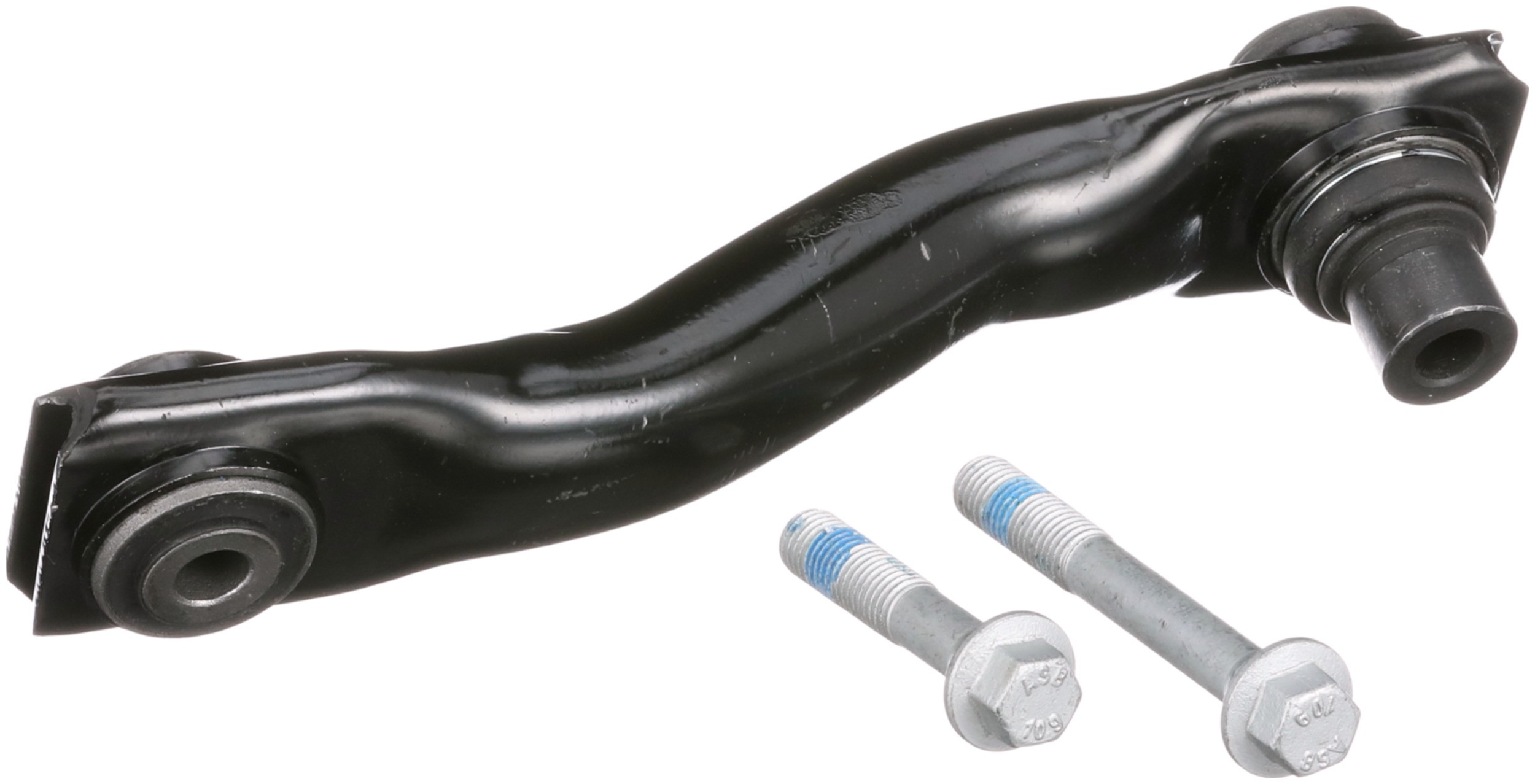

Delphi TC5494 Suspension Control Arm

Delphi TC5494 Suspension Control Arm

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Bushing Inside Diameter	0.48 IN
Position(s)	Rear Lower Forward
158	Stamped
Bushing Length	67.50 MM
Bushing Length	2.65 IN
Bushing Length	1.38 IN
Bushing Length	35.00 MM
Pre-greased	No
Bushing Type	Rubber
Color	Black
Bushing Colour	Black
Finish	Painted
9532	215.00 MM
9532	8.46 IN
9058	215.0 MM
Material	Steel
Mounting Hardware Included	No
Adjustable	No
Bearing Type	Rubber
Bushings Included	Yes
Grease Fitting Included	No
Length	268.0 MM
Length	10.55 IN
Width	55.0 MM
Height	75.0 MM
Bushing Inside Diameter	0.48 IN
Bushing Inside Diameter	12.20 MM
Bushing Inside Diameter	12.20 MM
