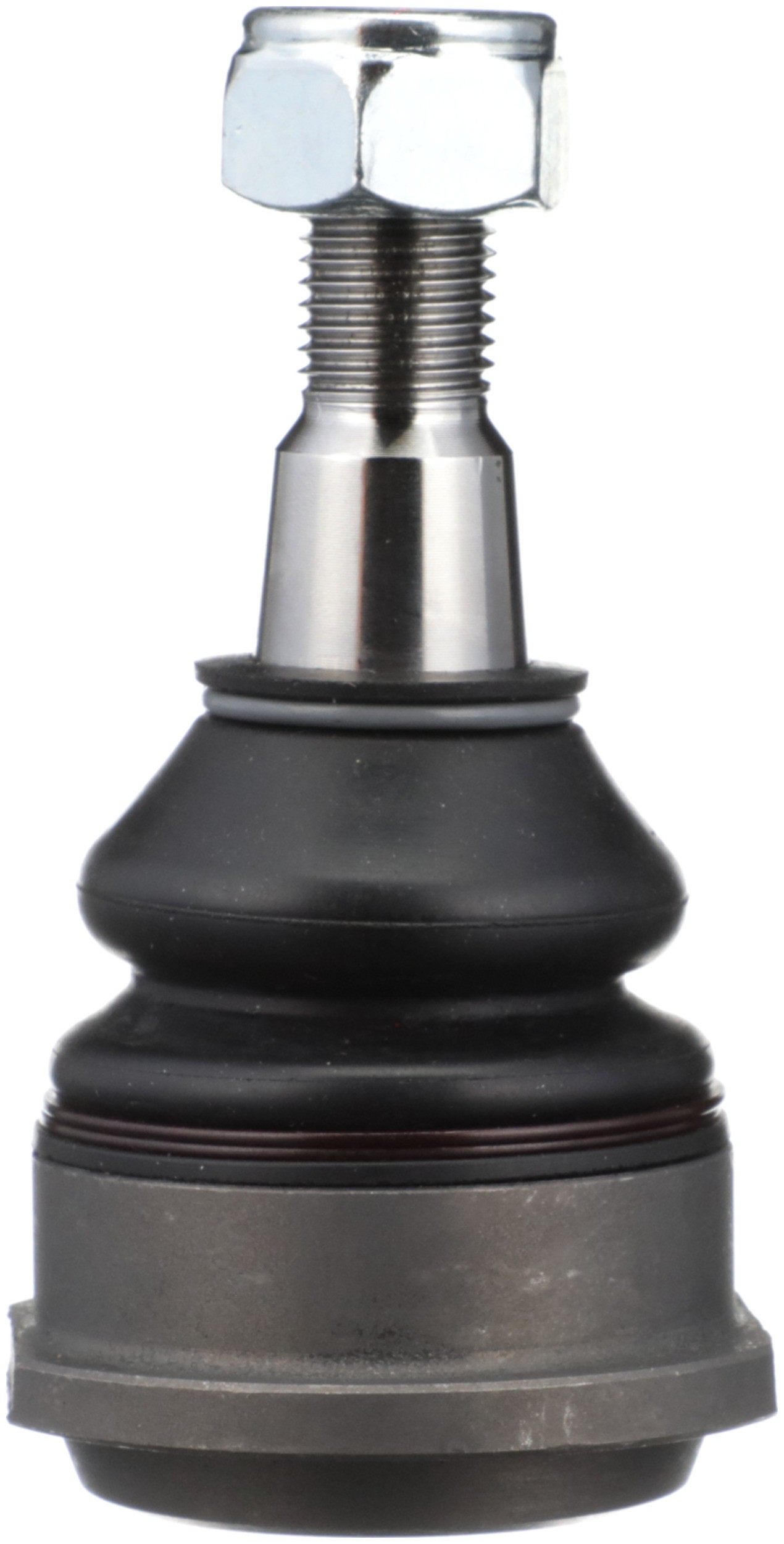

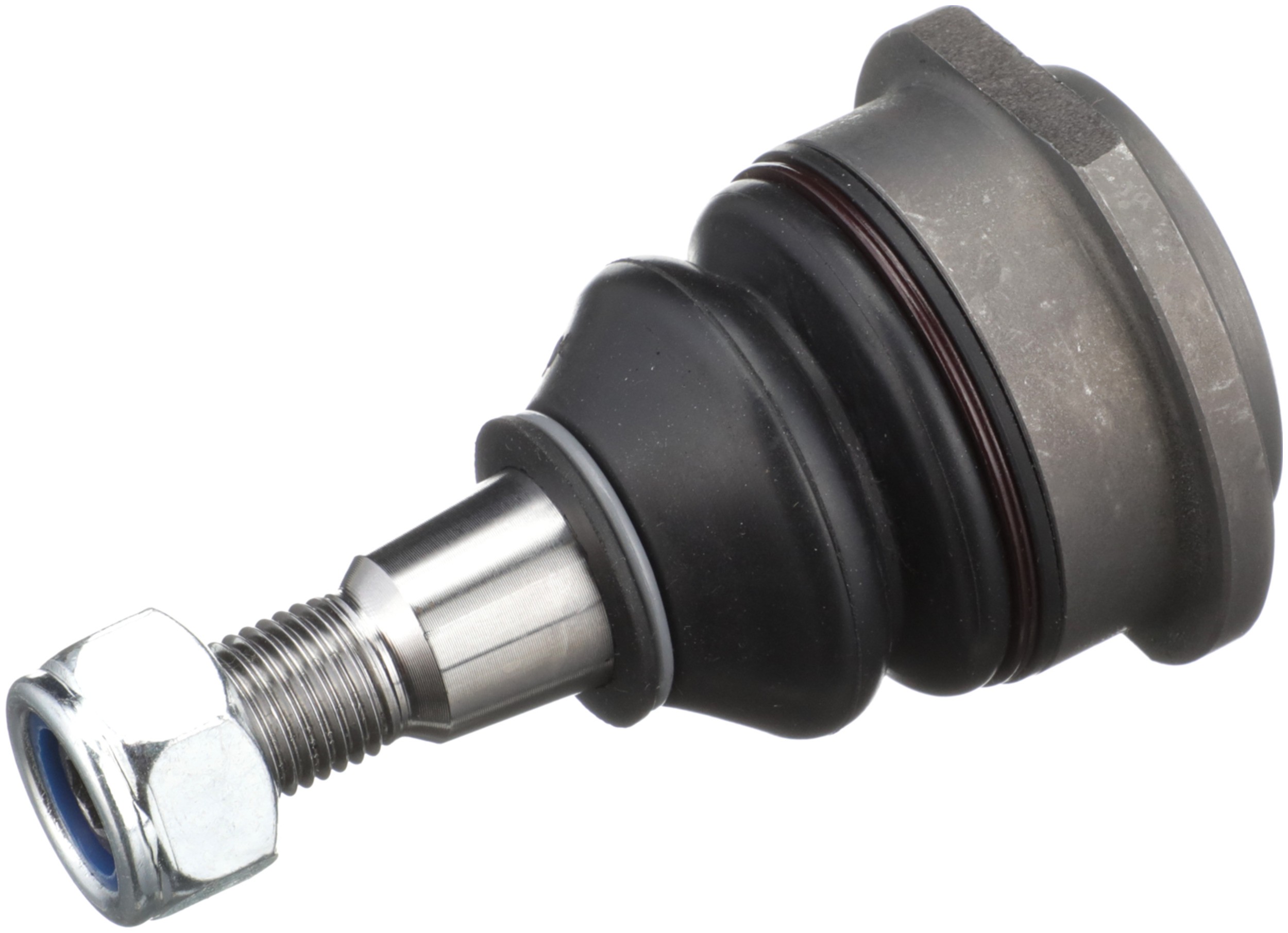

Delphi TC5528 Suspension Ball Joint

Delphi TC5528 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9212	0.659 IN
9212	16.75 MM
9213	0.789 IN
9213	20.05 MM
Height	100.00 MM
Height	3.937 IN
Width	58 MM
Length	3.940 IN
Length	100.00 MM
Maximum Outside Diameter	58.00 MM
Maximum Outside Diameter	2.283 IN
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Position(s)	Front Upper
2334	No
2381	Yes
2827	No
881	Threaded
9090	Rubber
9210	Yes
9209	No
9204	No
3068	0.789 IN
3068	20.05 MM
4966	0.659 IN
4966	16.74 MM
9211	0.167 IN
