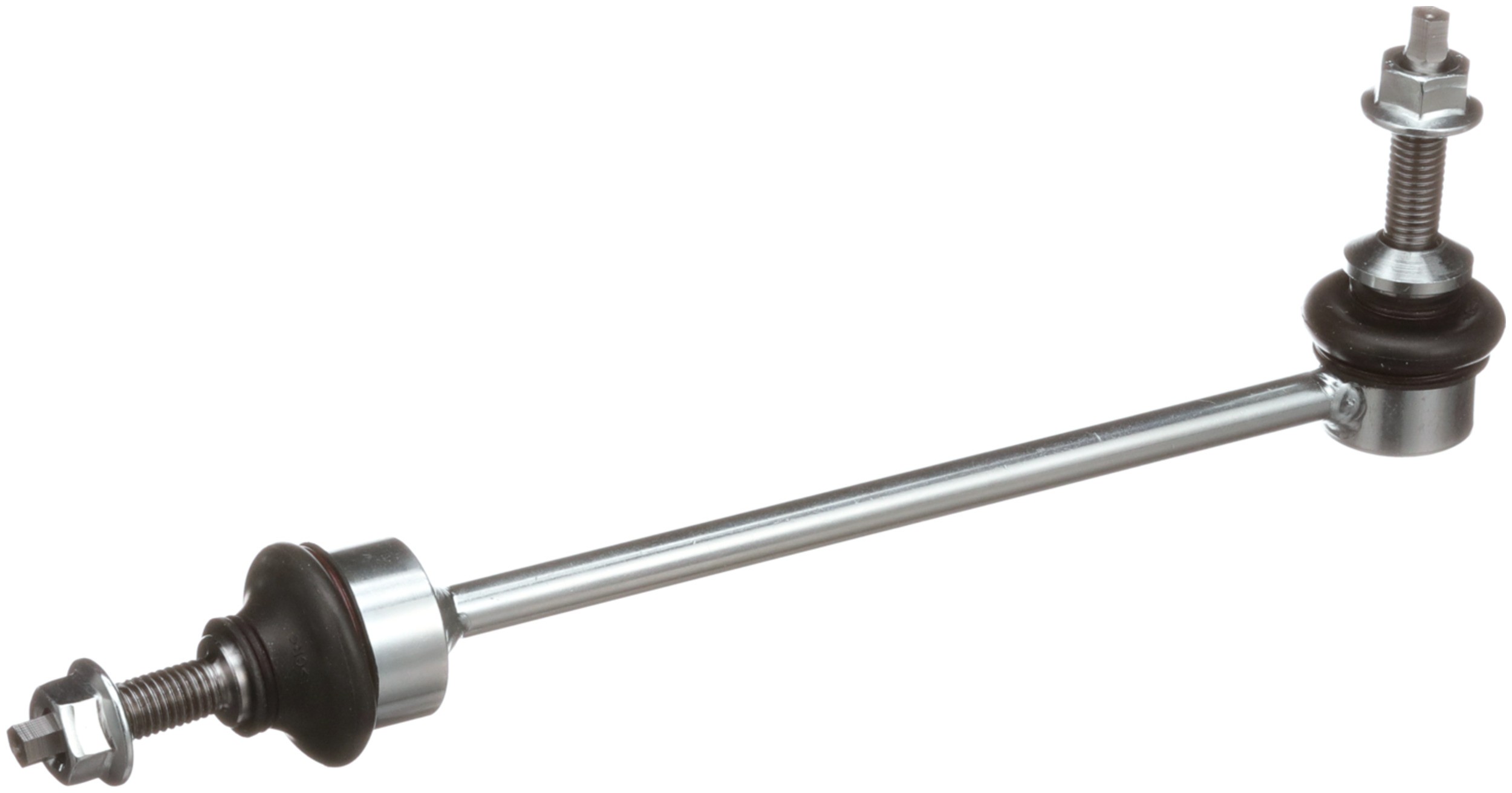

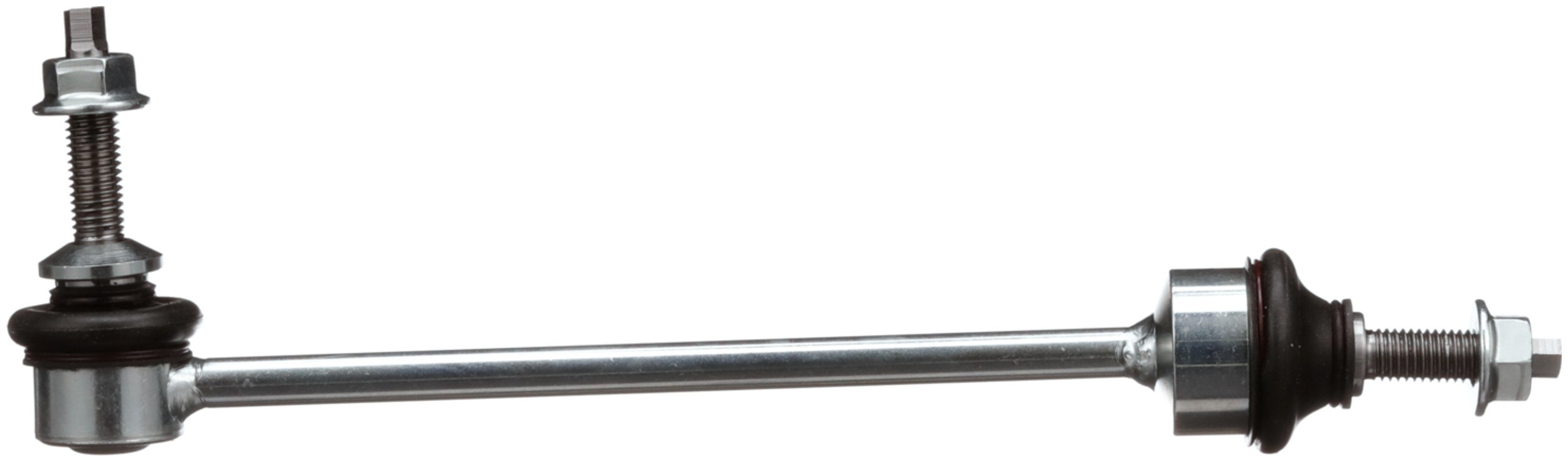

Delphi TC5650 Suspension Stabilizer Bar Link

Delphi TC5650 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Type	Ball Joint
Position(s)	Front
9296	Yes
Greaseable	No
Bearing Material	Plastic
4504	12.00 MM
Grade Type	Standard Replacement
Height	3.937 IN
Bushings Included	No
Dust Boot Included	Yes
Washers Included	No
Bolts Included	No
Housing Material	Steel
End 2 Type	Ball Joint
Length	12.354 IN
Length	313.80 MM
4504	0.470 IN
Width	45 MM
Width	1.772 IN
Height	100.00 MM
Bolt Length	1.961 IN
Bolt Length	49.80 MM
627	0.32 LB
