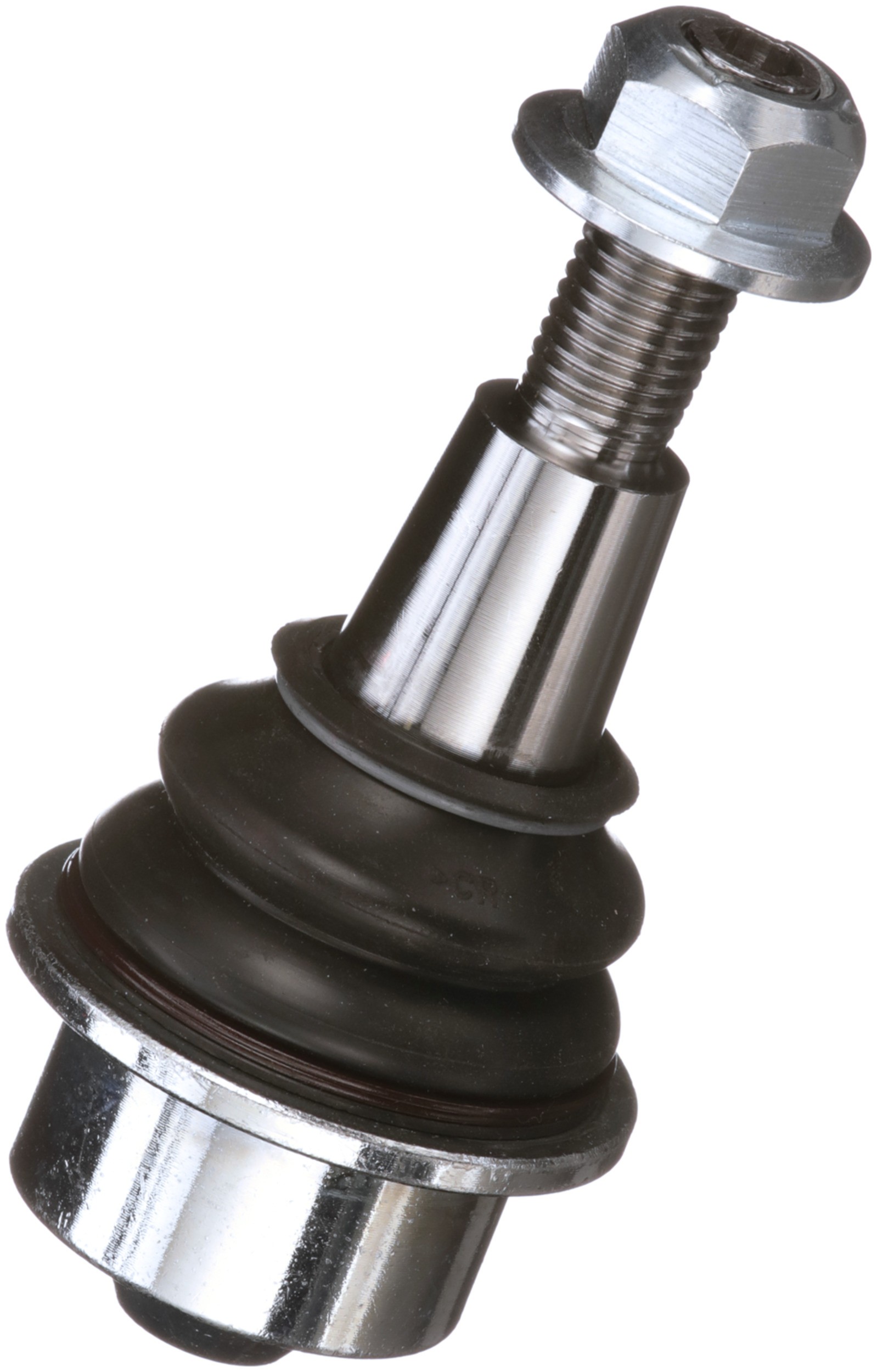

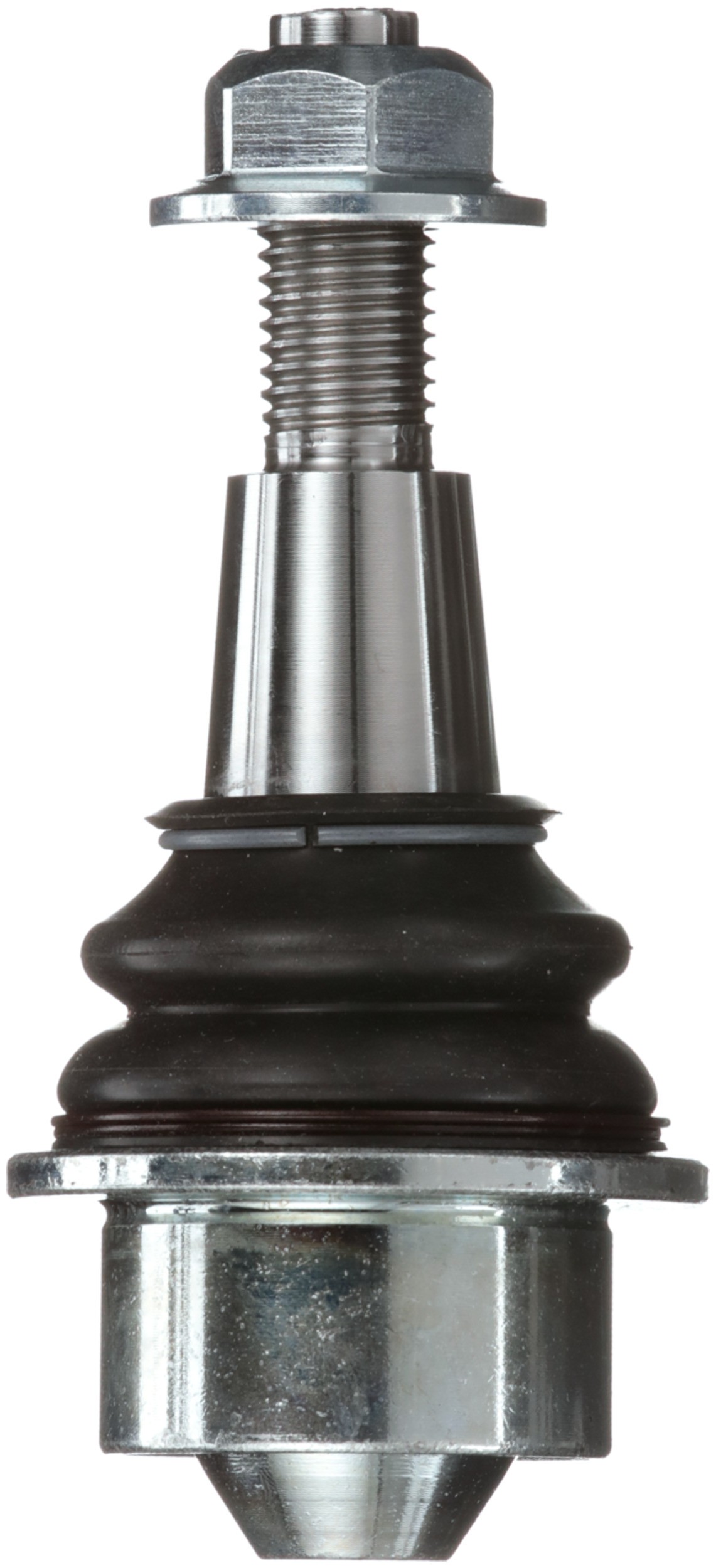

Delphi TC5664 Suspension Ball Joint

Delphi TC5664 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
Height	134.01 MM
Height	5.276 IN
Width	61 MM
Length	5.280 IN
Length	134.00 MM
Maximum Outside Diameter	61.00 MM
Maximum Outside Diameter	2.402 IN
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Greaseable	No
Adjustable	No
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Silver
Material	Steel
4966	1.26 IN
4966	32 MM
9211	0.167 IN
9212	0.843 IN
9212	21.4 MM
9213	1.106 IN
9213	28.1 MM

Vehicle Applications:

Make	Model	Years
Cadillac	Escalade ESV	2015 to 2016
Cadillac	Escalade	2015 to 2016
Chevrolet	Silverado 1500	2014 to 2016
Chevrolet	Suburban	2015 to 2016
Chevrolet	Tahoe	2015 to 2016
GMC	Sierra 1500	2014 to 2016
GMC	Yukon XL	2015 to 2016
GMC	Yukon	2015 to 2016
