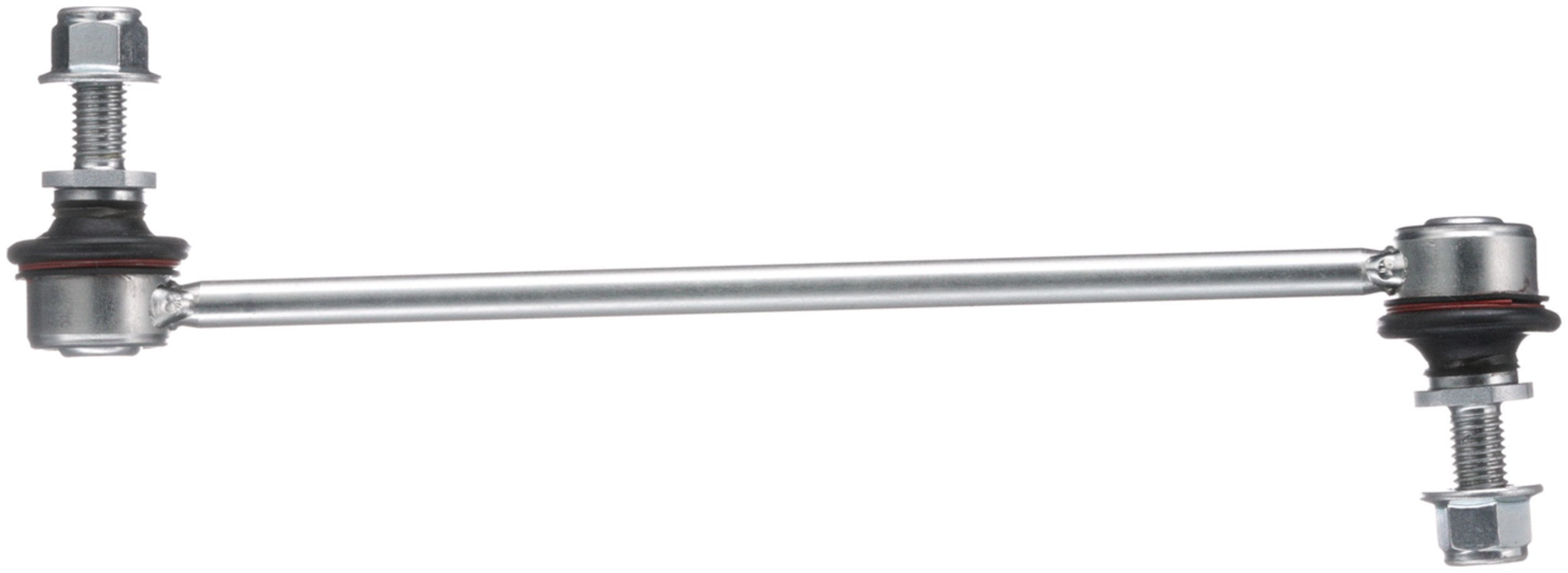

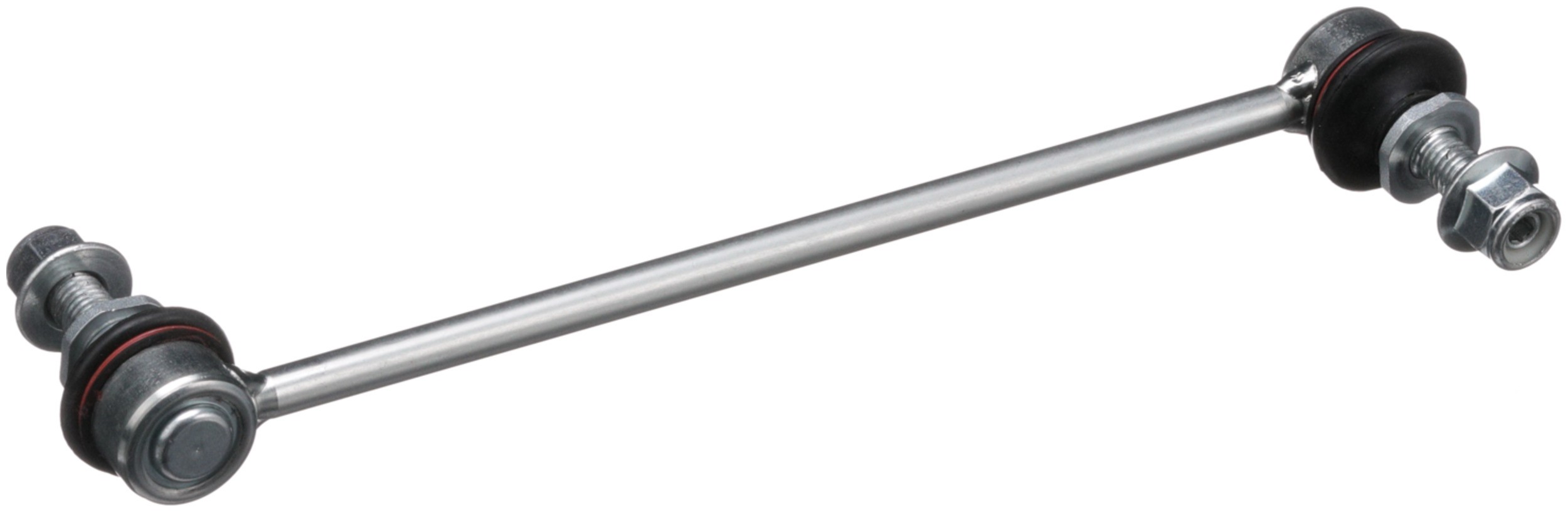

Delphi TC5769 Suspension Stabilizer Bar Link

Delphi TC5769 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolts Included	No
Position(s)	Front
9296	Yes
Bolt Length	30.50 MM
Bolt Length	1.200 IN
Height	1.770 IN
Height	45.00 MM
Width	4.53 IN
Width	115 MM
Length	12.800 IN
Length	325.00 MM
Bushings Included	No
Dust Boot Included	Yes
Washers Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
Grade Type	Standard Replacement
627	0.22 LB
4504	0.790 IN
4504	20.00 MM
