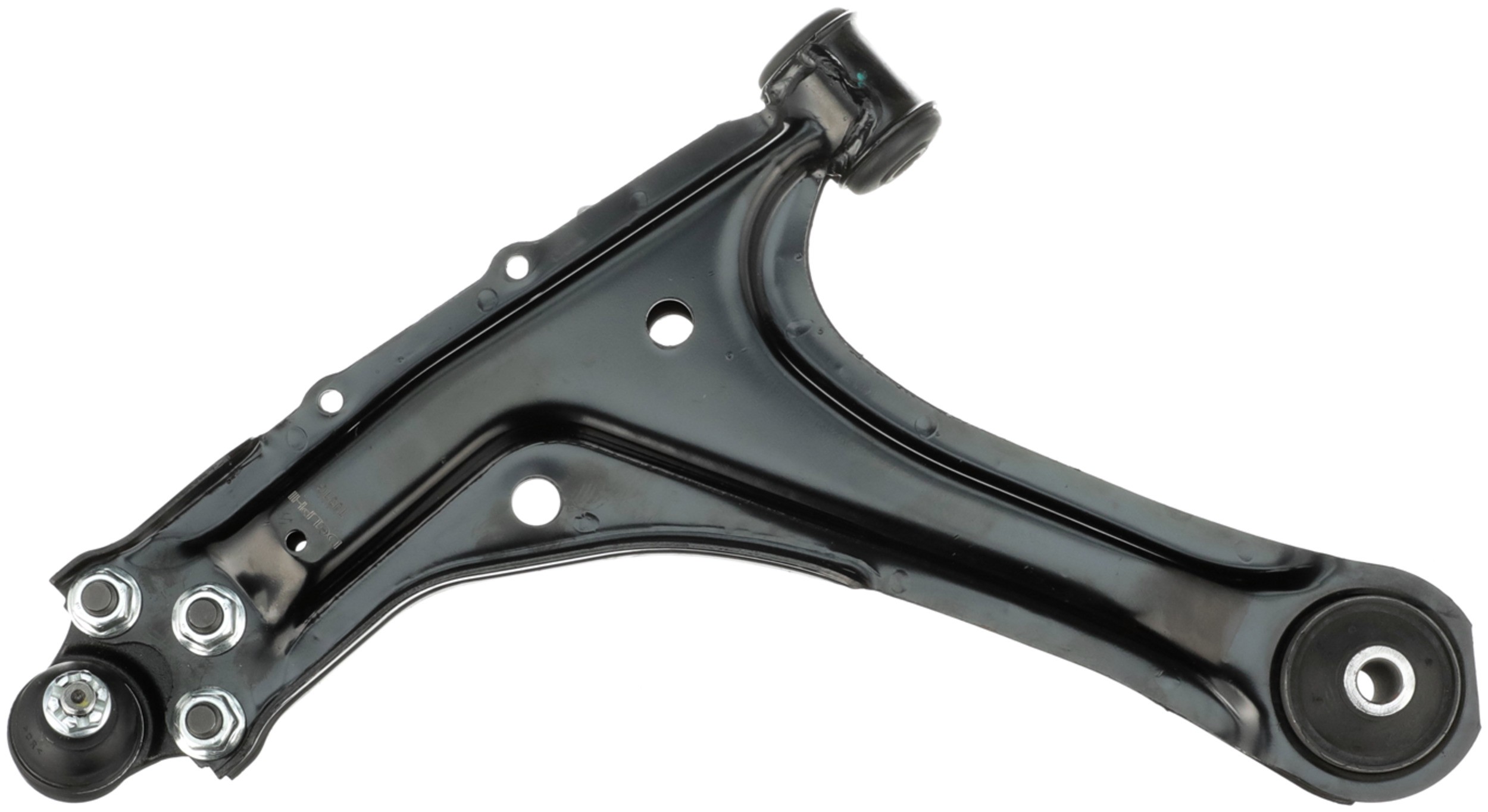

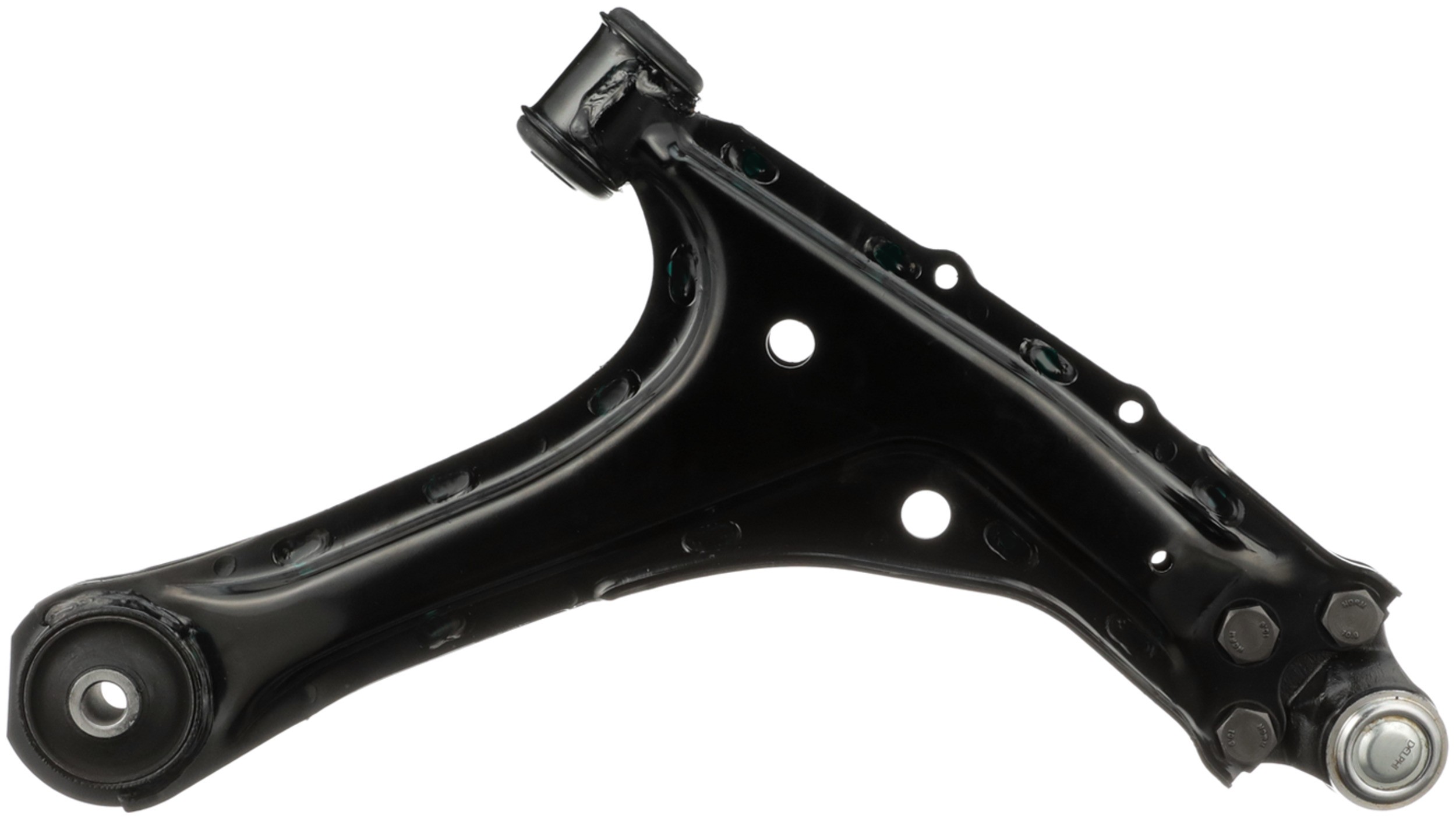

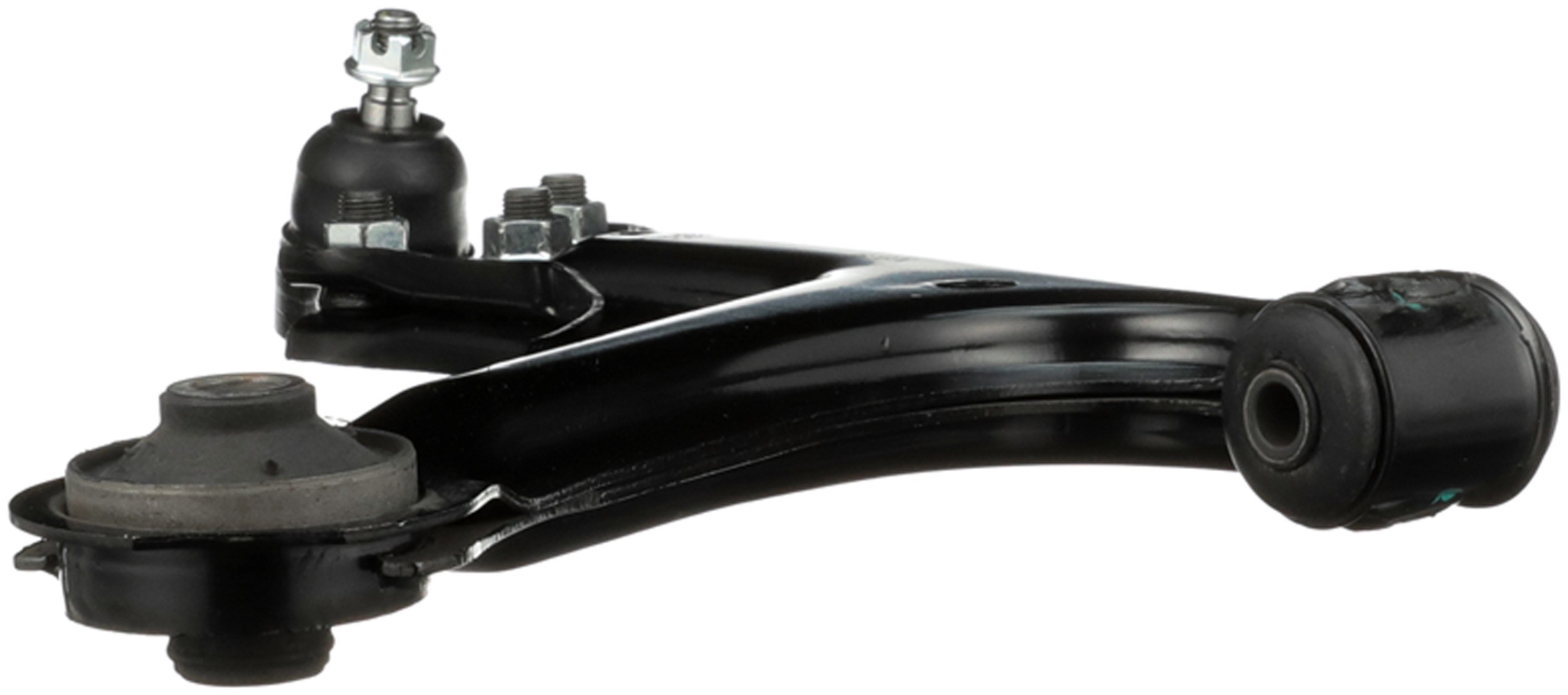

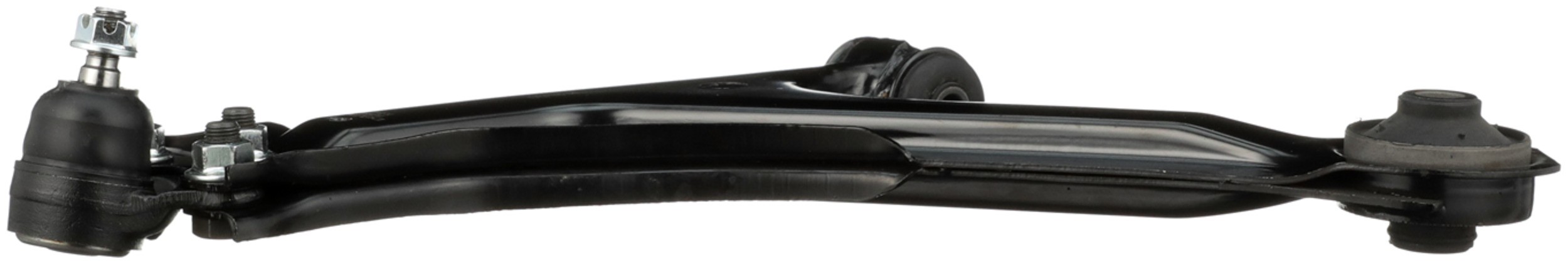

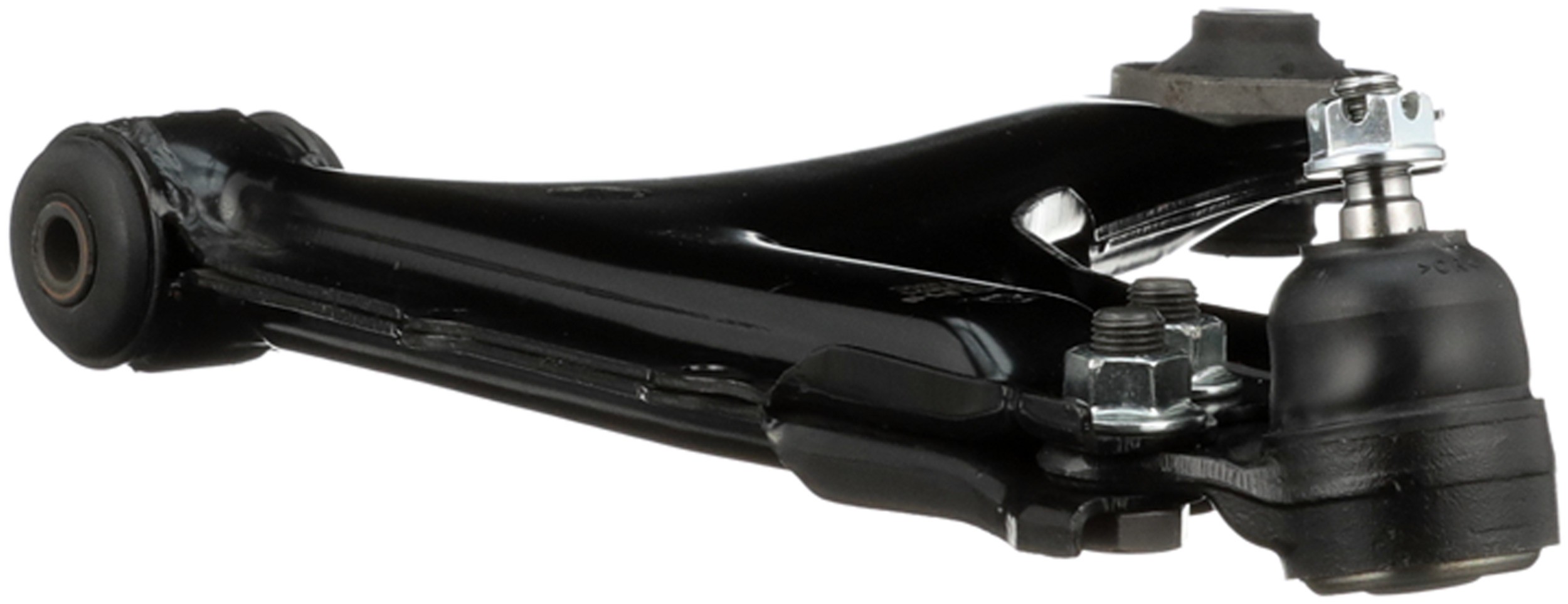

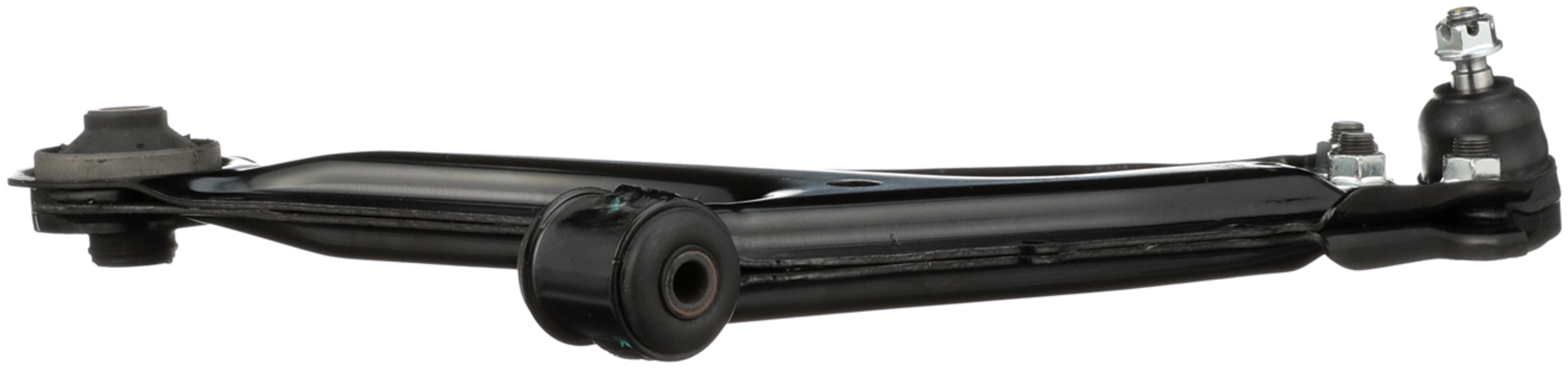

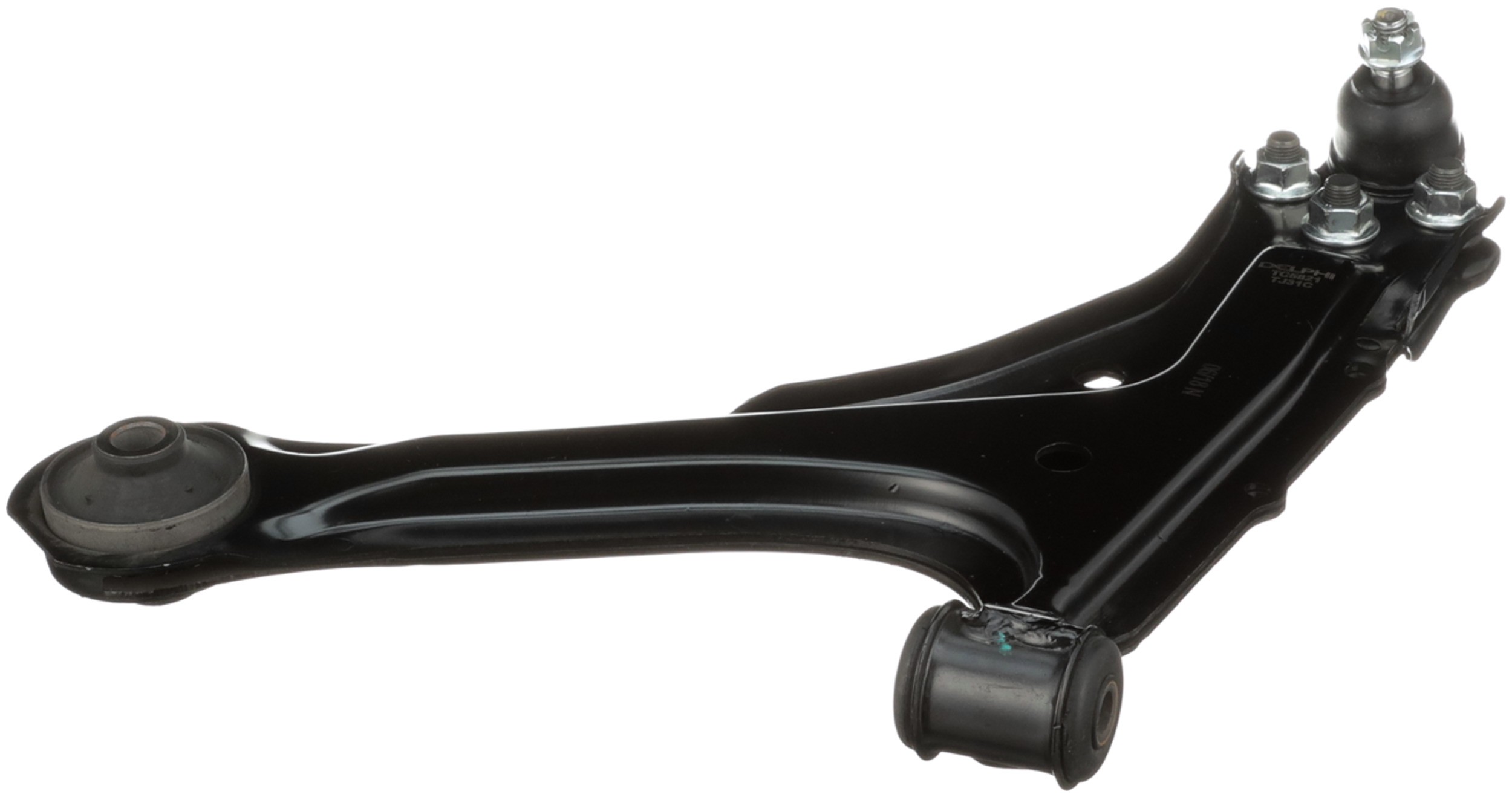

Delphi TC5821 Suspension Control Arm and Ball Joint Assembly

Delphi TC5821 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
4890	75.00 MM
Position(s)	Front Left Lower
2384	Yes
2386	Stamped
4241	Yes
Length	16.142 IN
Mounting Hole Diameter	12.30 MM
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	0.484 IN
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.563 IN
Finish	Black
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Length	410.00 MM
4887	3.346 IN
4887	85.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
4890	2.953 IN
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Bolt In
