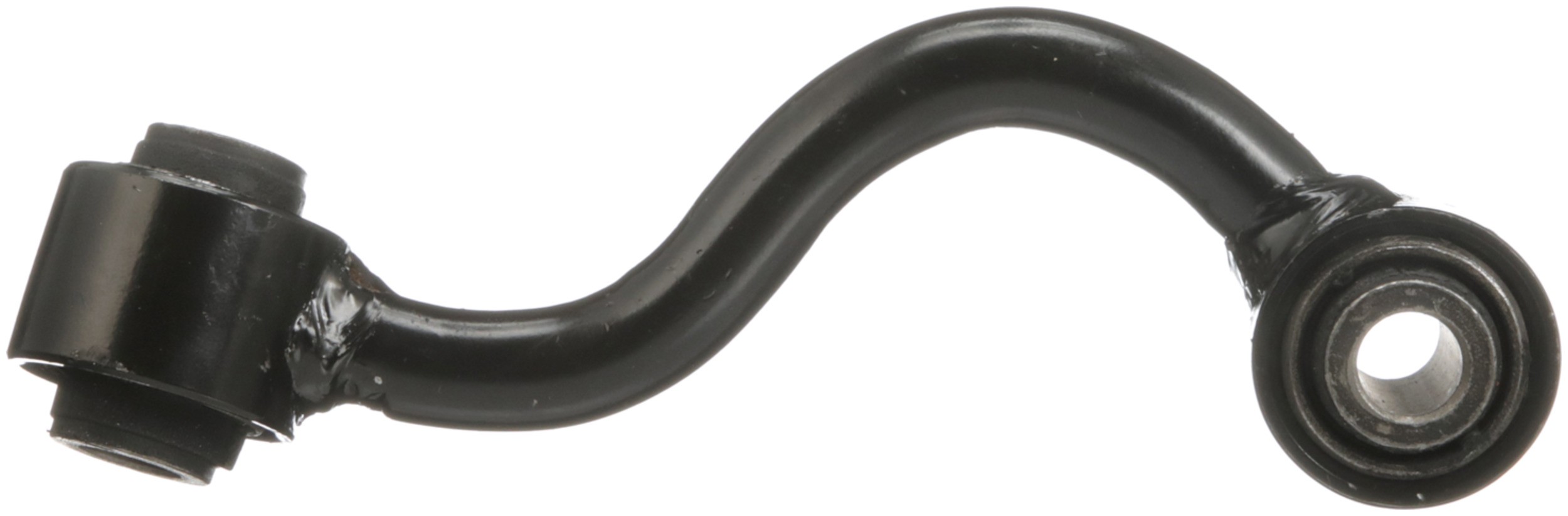

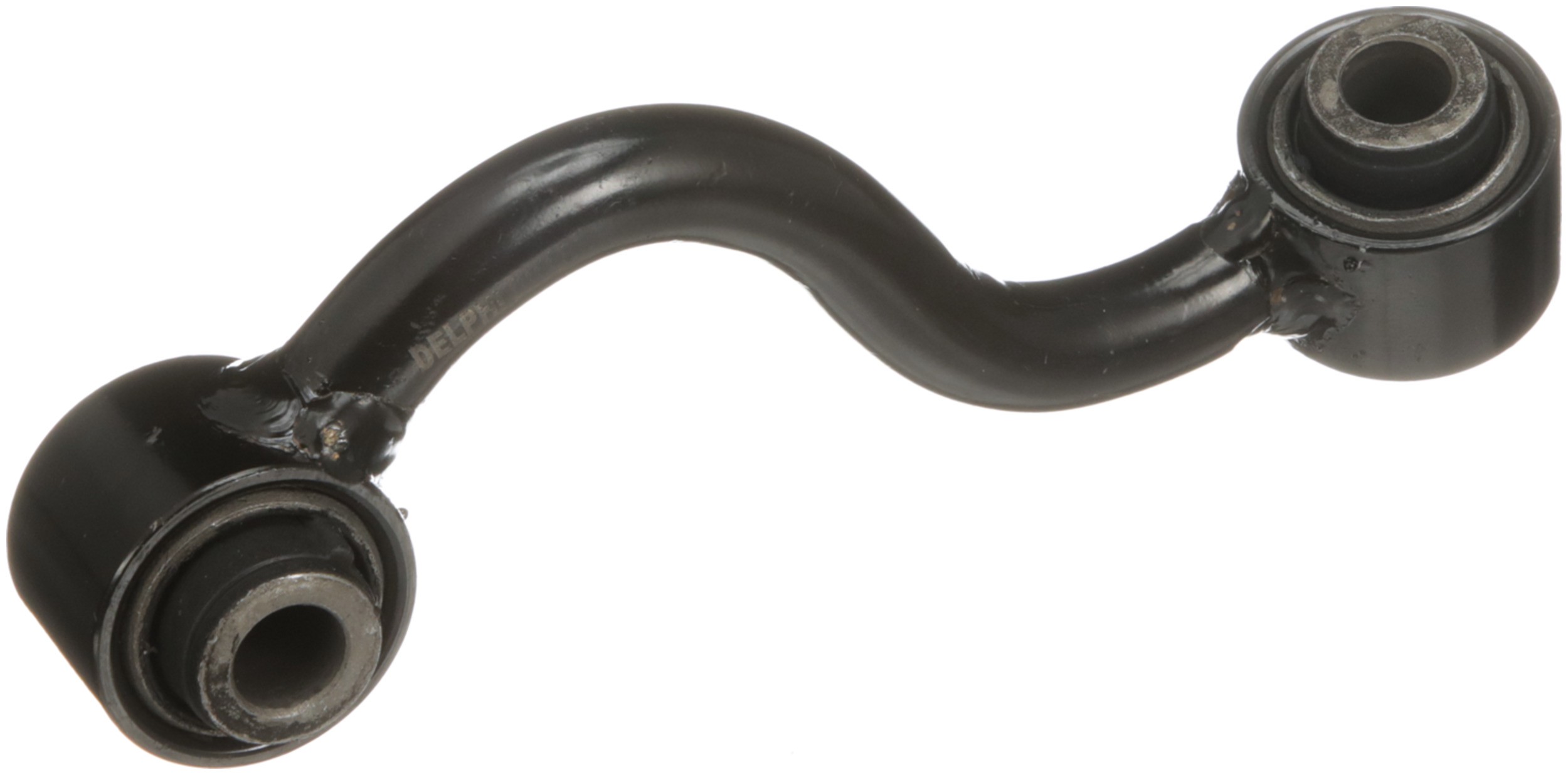

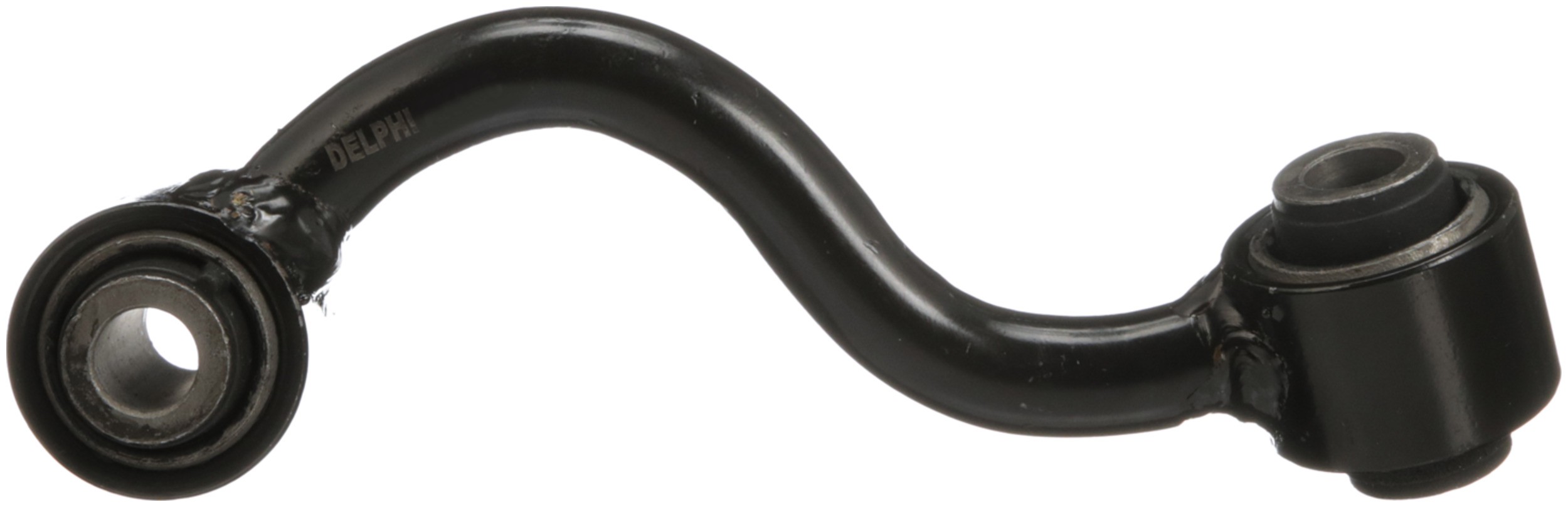

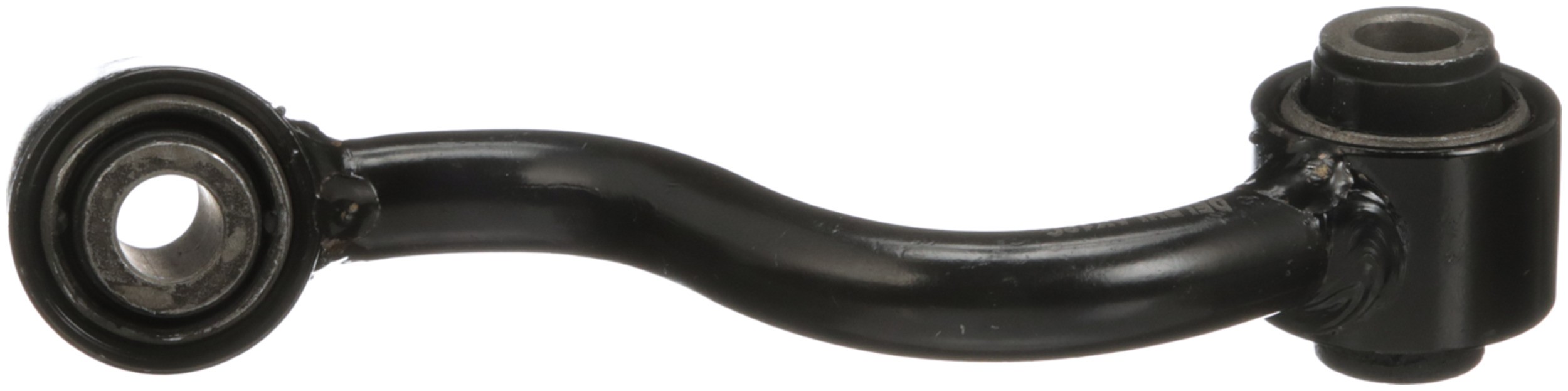

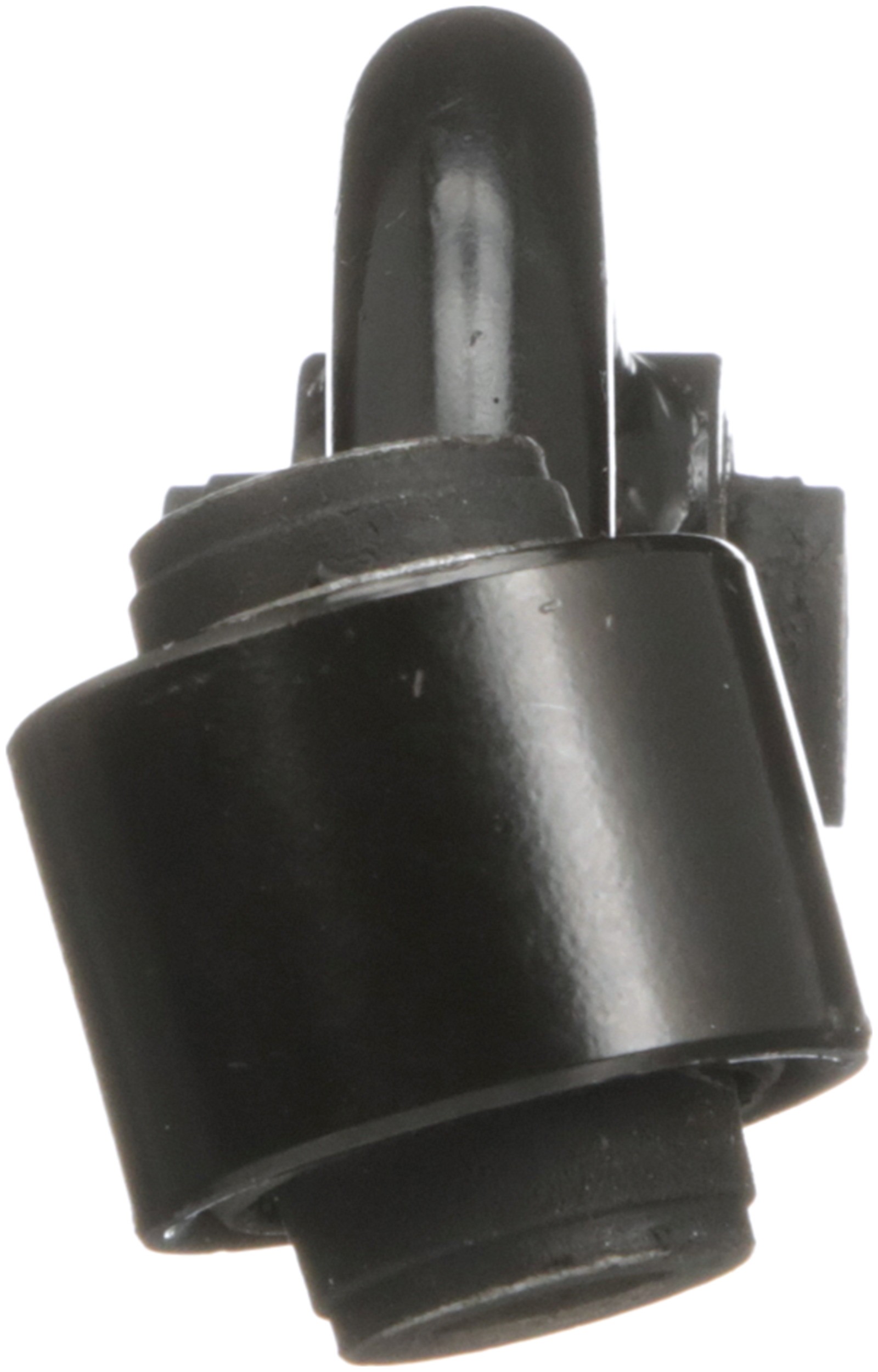

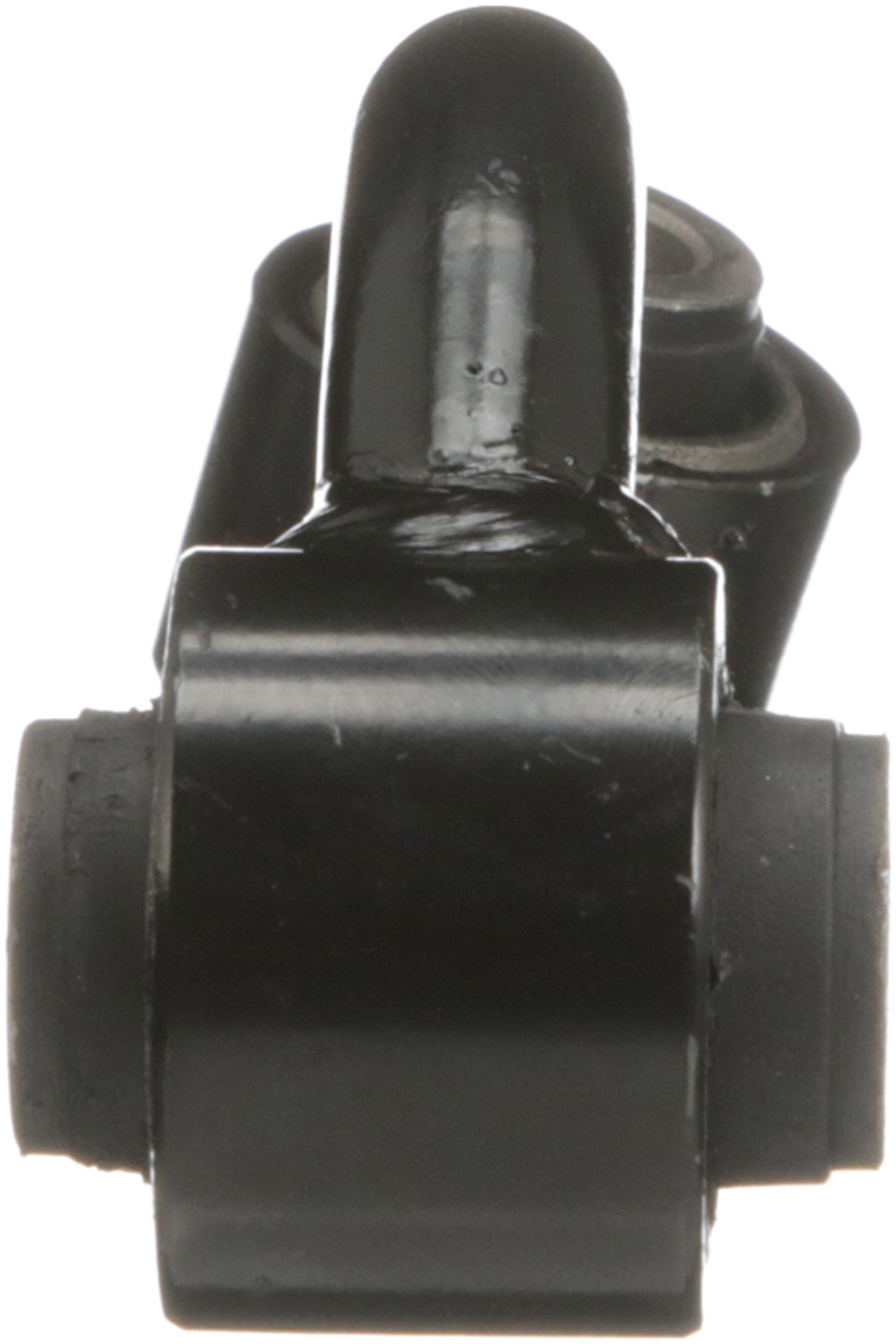

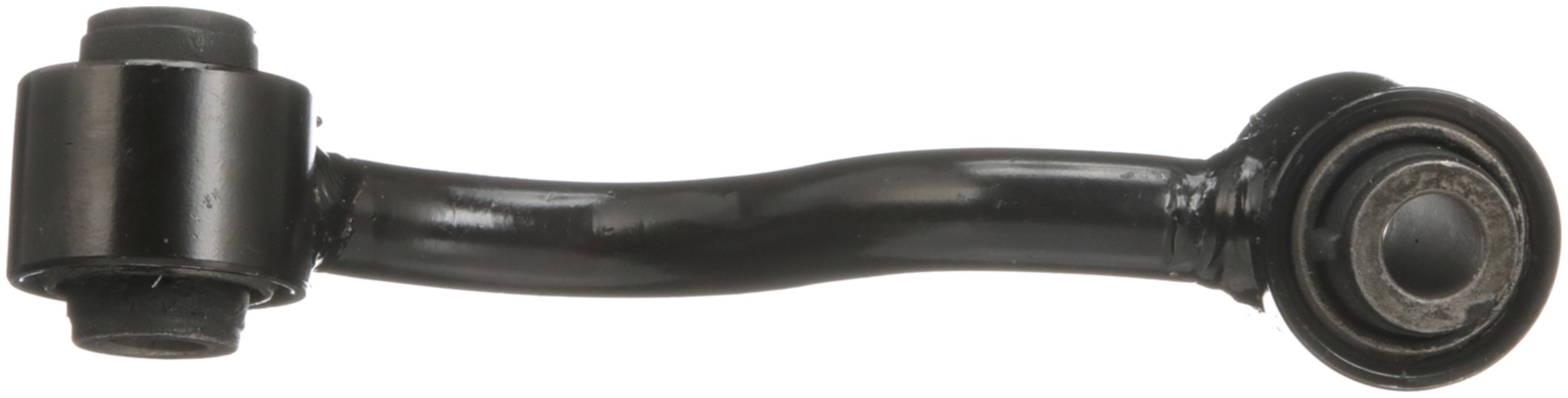

Delphi TC5856 Suspension Stabilizer Bar Link

Delphi TC5856 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Type	Bushing
627	1.65 LB
9058	141.00 MM
Length	6.690 IN
Width	50 MM
Bushings Included	Yes
Dust Boot Included	No
9296	No
Position(s)	Rear Right
Washers Included	No
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Rubber
Bushing Type	Rubber
Length	170.00 MM
Width	1.97 IN
Height	100.00 MM
End 1 Type	Bushing
Height	3.940 IN
Bushing Inside Diameter	0.480 IN
Bushing Inside Diameter	12.20 MM
Grade Type	Standard Replacement
Hardware Included	No
Bushing Colour	Black
