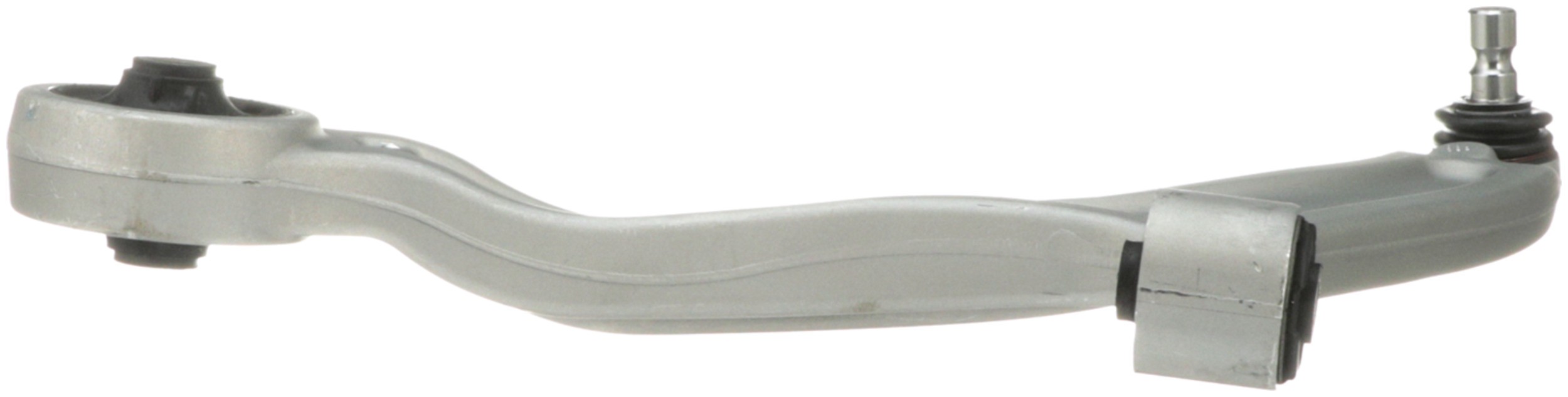

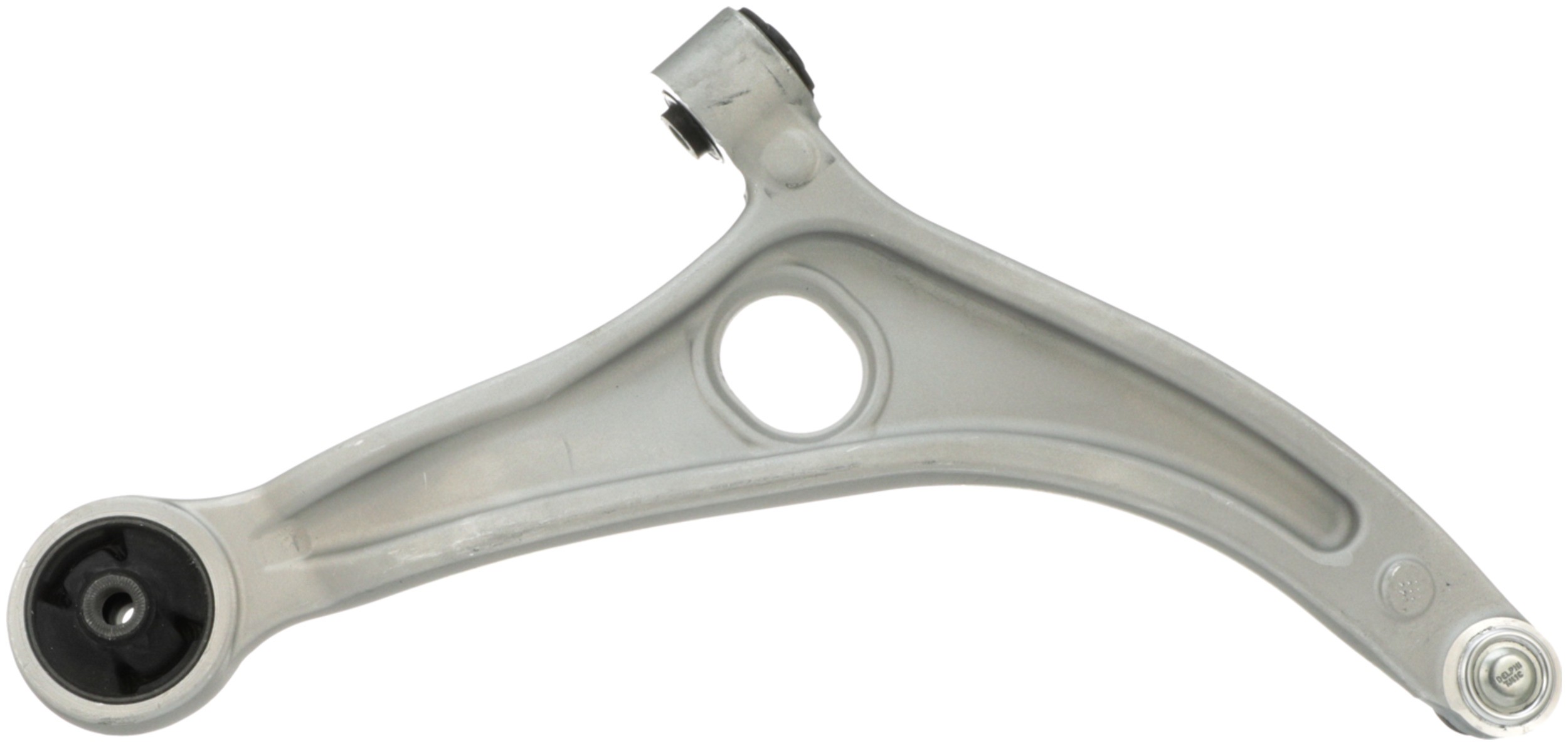

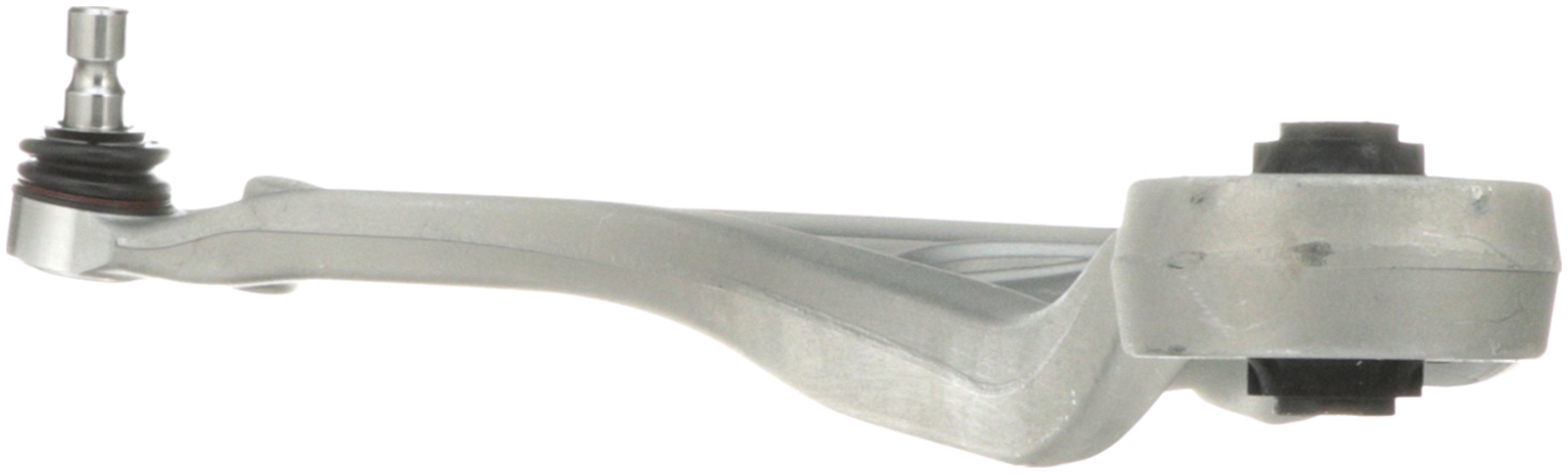

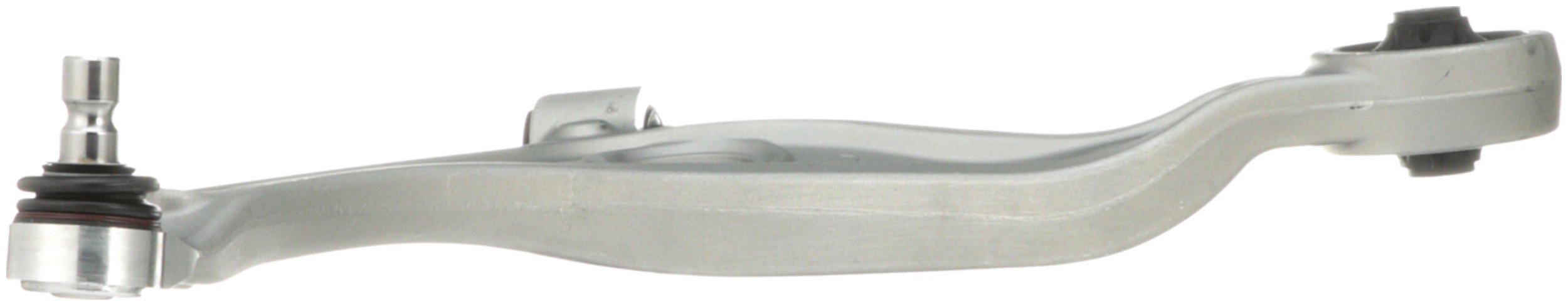

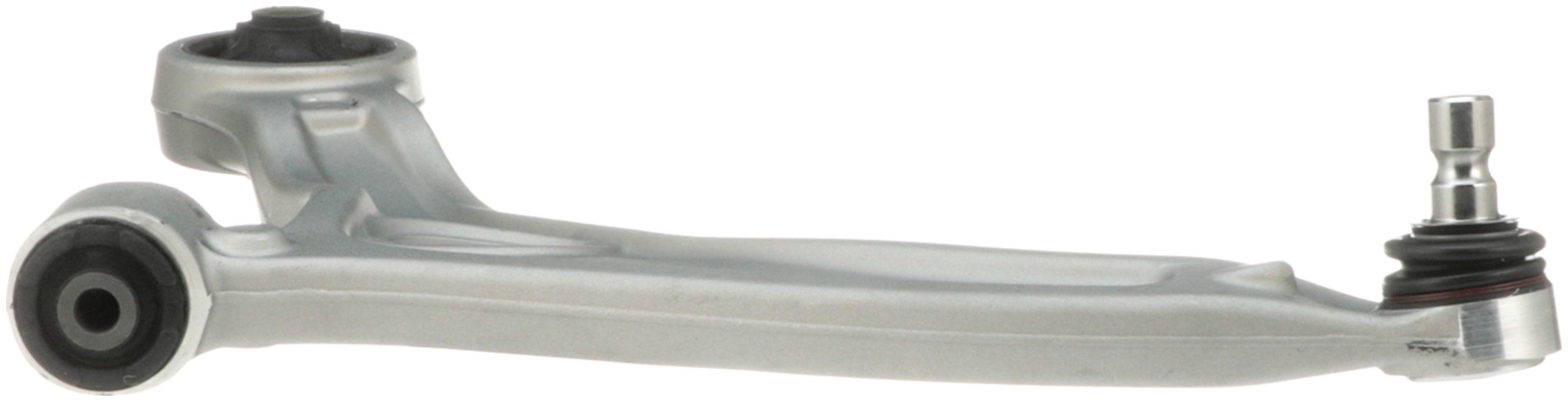

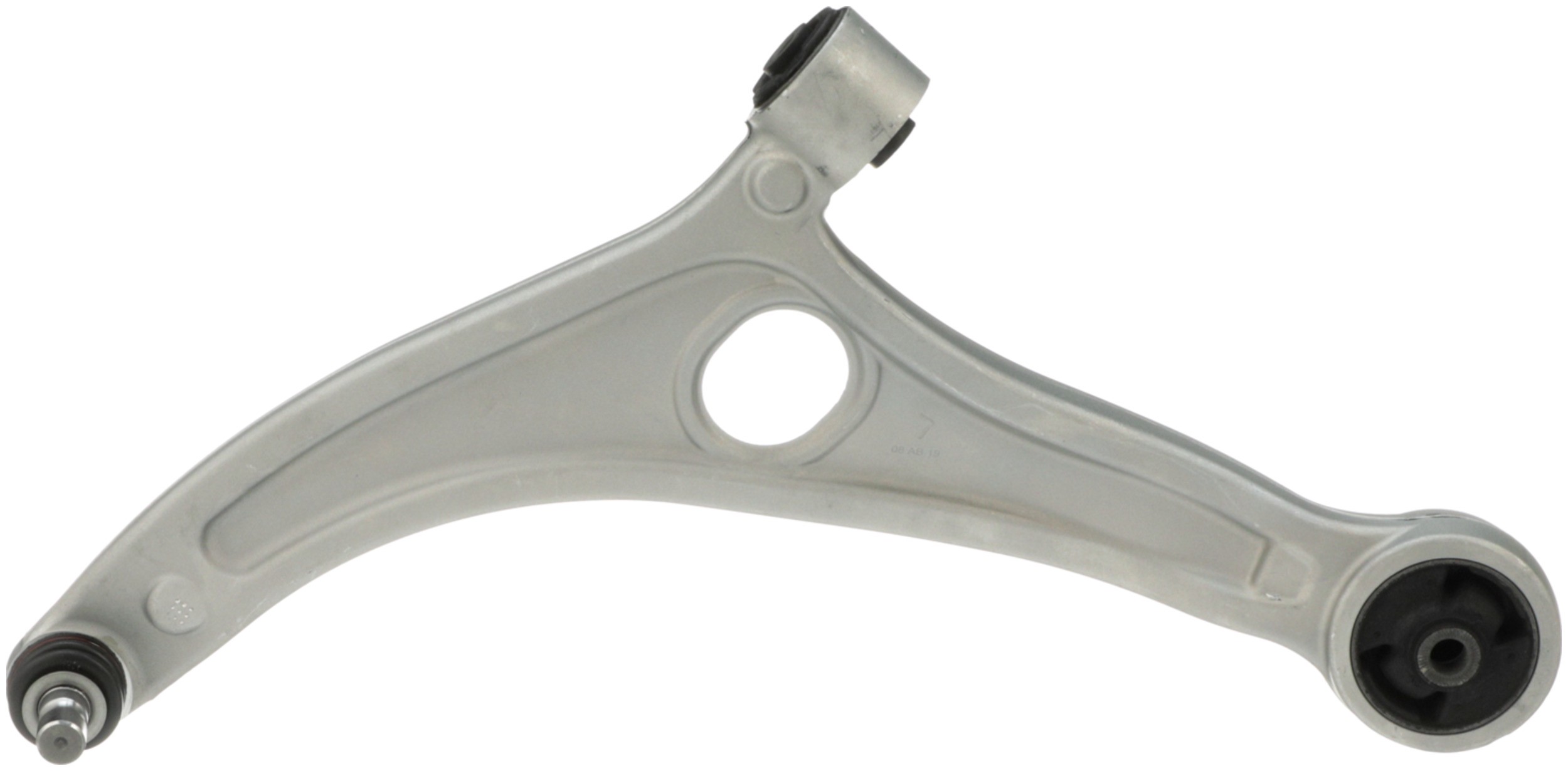

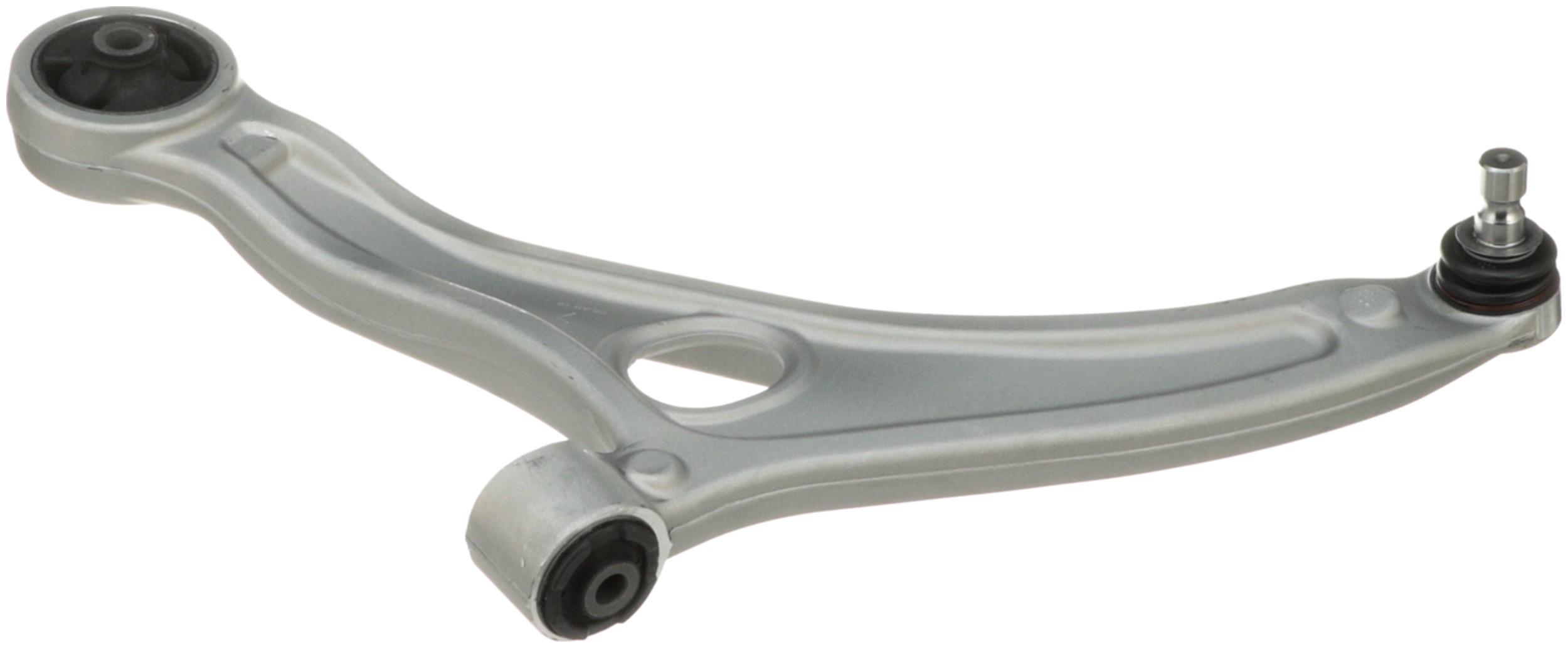

Delphi TC6383 Suspension Control Arm and Ball Joint Assembly

Delphi TC6383 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	1.488 IN
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	No
Material	Aluminum
Ball Joint Stud Type	Grooved
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Bushing Colour	Black
Position(s)	Front Left Lower
2384	Yes
2386	Casting/Forged
6529	Power
9090	Chloroprene Rubber (CR)
4887	432.00 MM
4887	17.008 IN
Finish	Gray
Length	447.00 MM
Length	17.598 IN
Mounting Hole Diameter	37.80 MM
Mounting Hole Diameter	70.00 MM
Mounting Hole Diameter	2.756 IN
