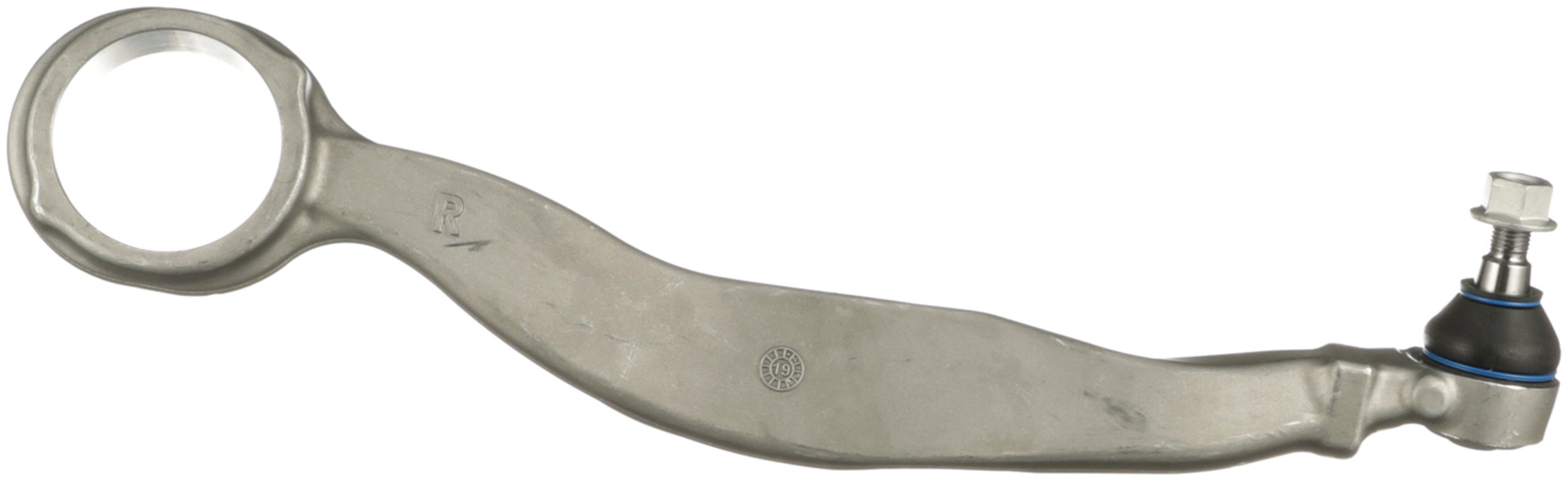

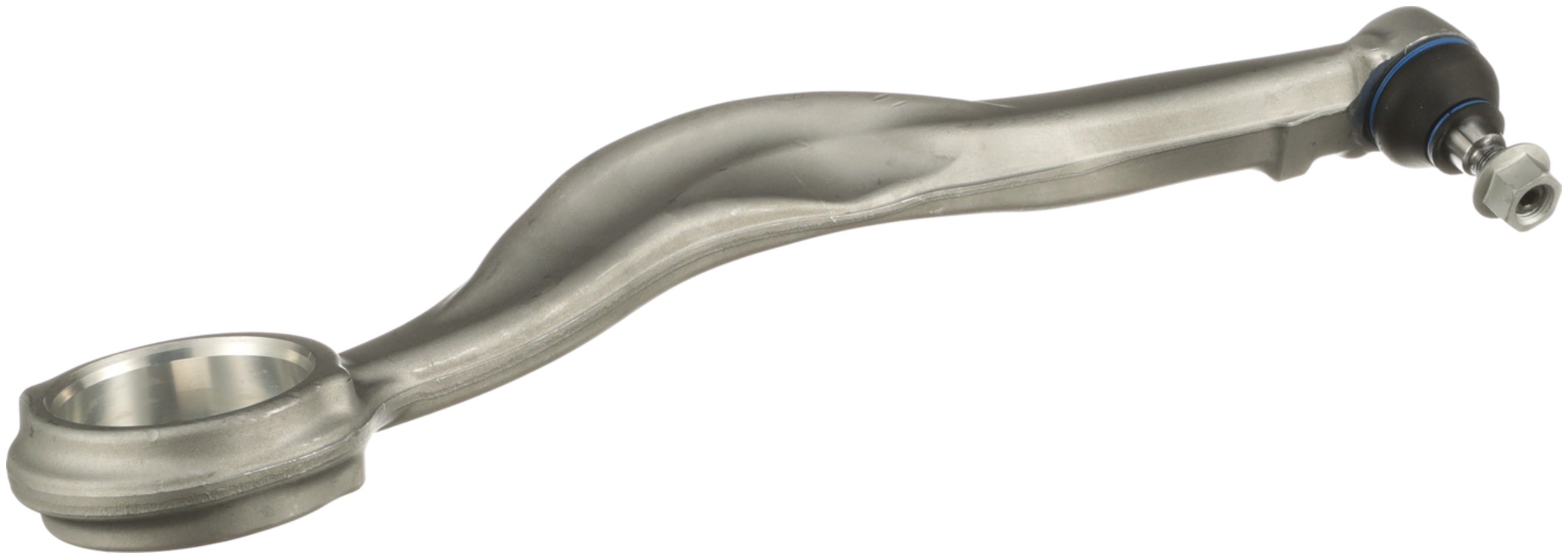

Delphi TC6726 Suspension Control Arm and Ball Joint Assembly

Delphi TC6726 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4887	2.362 IN
Mounting Hole Diameter	2.957 IN
Mounting Hole Diameter	75.10 MM
Length	17.717 IN
Length	450.00 MM
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Upper
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)
4887	60.00 MM
4890	71.00 MM
4890	2.795 IN

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	CLS400	2015 to 2017
Mercedes-Benz	CLS550	2012 to 2018
Mercedes-Benz	E300	2012 to 2016
Mercedes-Benz	E350	2010 to 2016
Mercedes-Benz	E400	2015 to 2016
Mercedes-Benz	E550	2010 to 2016
