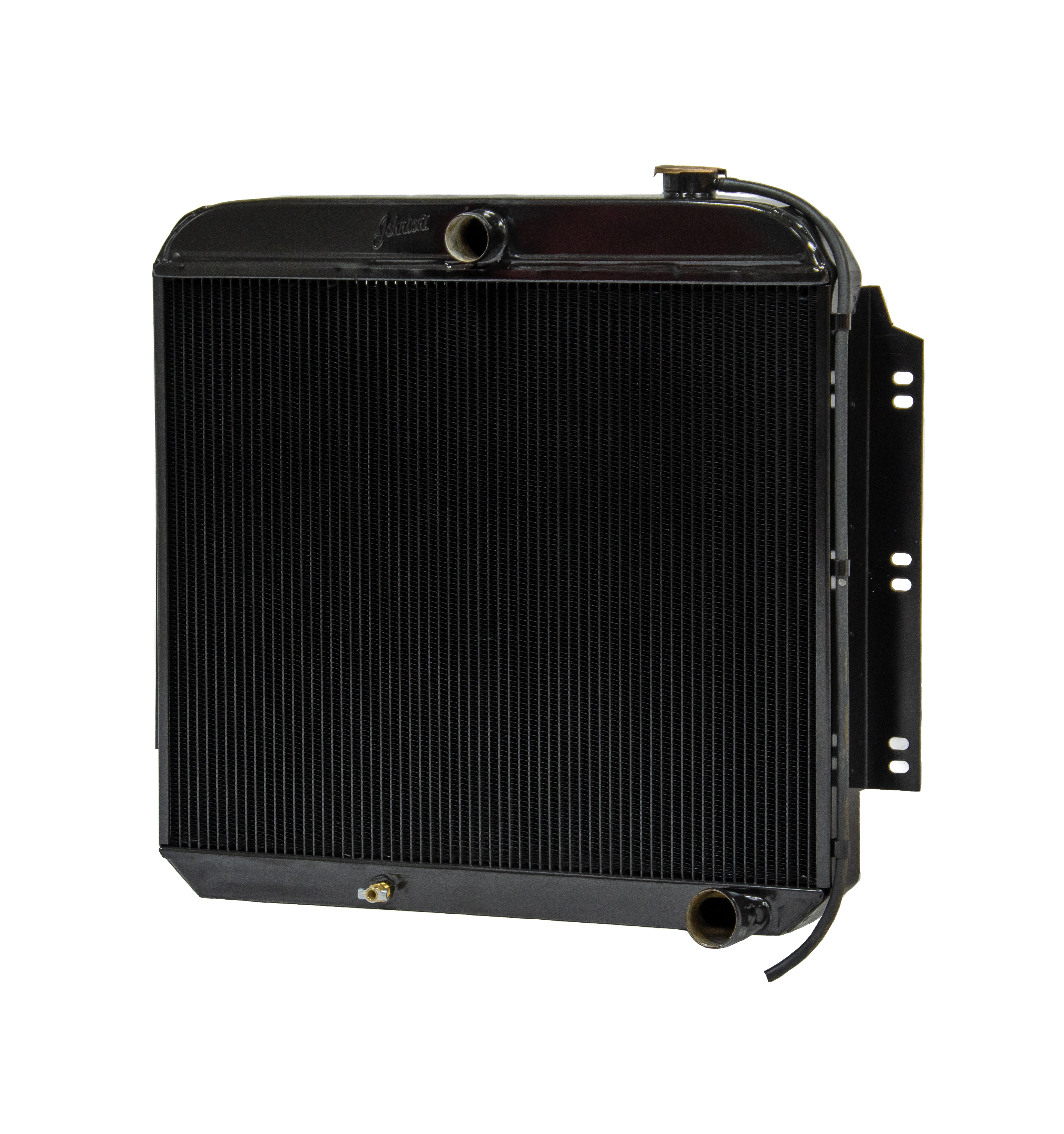

1960-66 CHEVY / GMC TRUCK RADIATOR

1960-66 CHEVY / GMC TRUCK RADIATOR

1960-66 CHEVY / GMC TRUCK RADIATOR

Features:

Bottom Outlet Location – Right
Engine – SB/BB Chevy
A/C – Non
Trans Cooler – No
Top Outlet Size – 1.500″
Top Outlet Location – Center
Bottom Outlet Size – 1.750″

Johnson’s Radiator Works radiators feature a 1.500″ top outlet and 1.750″ bottom outlet – high-flow copper core, ideal for the best cooling efficiency possible. Built as a direct fit for a stock replacement complete with the appropriate connections. Made with heavy gauge steel side brackets and mounting holes pre-stamped. Includes an optional built-in oil cooler for automatic transmissions. Johnsons has a 5 year full replacement warranty covering labor as well.

Attributes:

Outlet Header Width	N/A
Overall Length	26.63 IN
Overall Height	23.63 IN
Core Length	3.00 IN
Core Thickness	0.78 IN
Transmission Cooler	No
Mounting Type	Bracket Mount
Mounting Type	Bolted
Mounting Type	Bolt On
Mounting Hardware Included	No
Grade Type	Regular
Core Material	Copper
Core Material	Brass
Core Height	18.50 IN
397	22.88 IN
Core Dimension	18.50 x 22.88 IN
10291	1.500 IN
319	N/A
Transmission Oil Cooler Plate Quantity	N/A
Transmission Oil Cooler Length	N/A
323	N/A
Transmission Oil Cooler Fitting Gender	N/A
Transmission Oil Cooler Fitting Diameter	N/A
Transmission Oil Cooler Distance between Fittings	N/A
Transmission Oil Cooler Diameter	N/A
9482	No
305	Copper
305	Brass
Sub Category	Radiators, Coolers and Related Components
3683	Yes
Product Type	Radiator
11265	Single Pass
part type	Radiator
Overall Width	3.00
304	Bottom Right
Outlet Header Length	N/A
Outlet Diameter	1.75
10512	Hose
8655	No
8654	No
619	Top Center
Inlet Header Width	N/A
Inlet Header Length	N/A
Inlet Diameter	1.50
10511	Hose
Hose Location Outlet	Passenger
Hose Location Inlet	Center
5159	Yes
Fluid Capacity	N/A
9499	Round
9016	N/A
326	N/A
Engine Oil Cooler Number of Plates	N/A
Engine Oil Cooler Length	N/A
7164	No
Engine Oil Cooler Fittings Distance Apart	N/A
9000	N/A
Engine Oil Cooler Fitting Gender	N/A
Engine Oil Cooler Fitting Diameter	N/A
Engine Oil Cooler Diameter	N/A
11248	Aluminum
11250	Powder Coated
11257	Fabricated
11263	N/A
Emission Code	6
Drain Plug Thread Size	N/A
1948	Yes
7448	Down Flow
3664	N/A
Core Tube Inside Diameter	N/A
5061	4
11264	Powder Coated
Core Fin Quantity	N/A
11256	Tube-and-Fin
Core Construction	Copper
7556	Black
9498	No
10292	N/A
Category	Restoration
Category	Exterior
Category	Cooling
Category	Belts and Cooling
California Proposition 65	chrominum
Brand	Brothers Trucks
