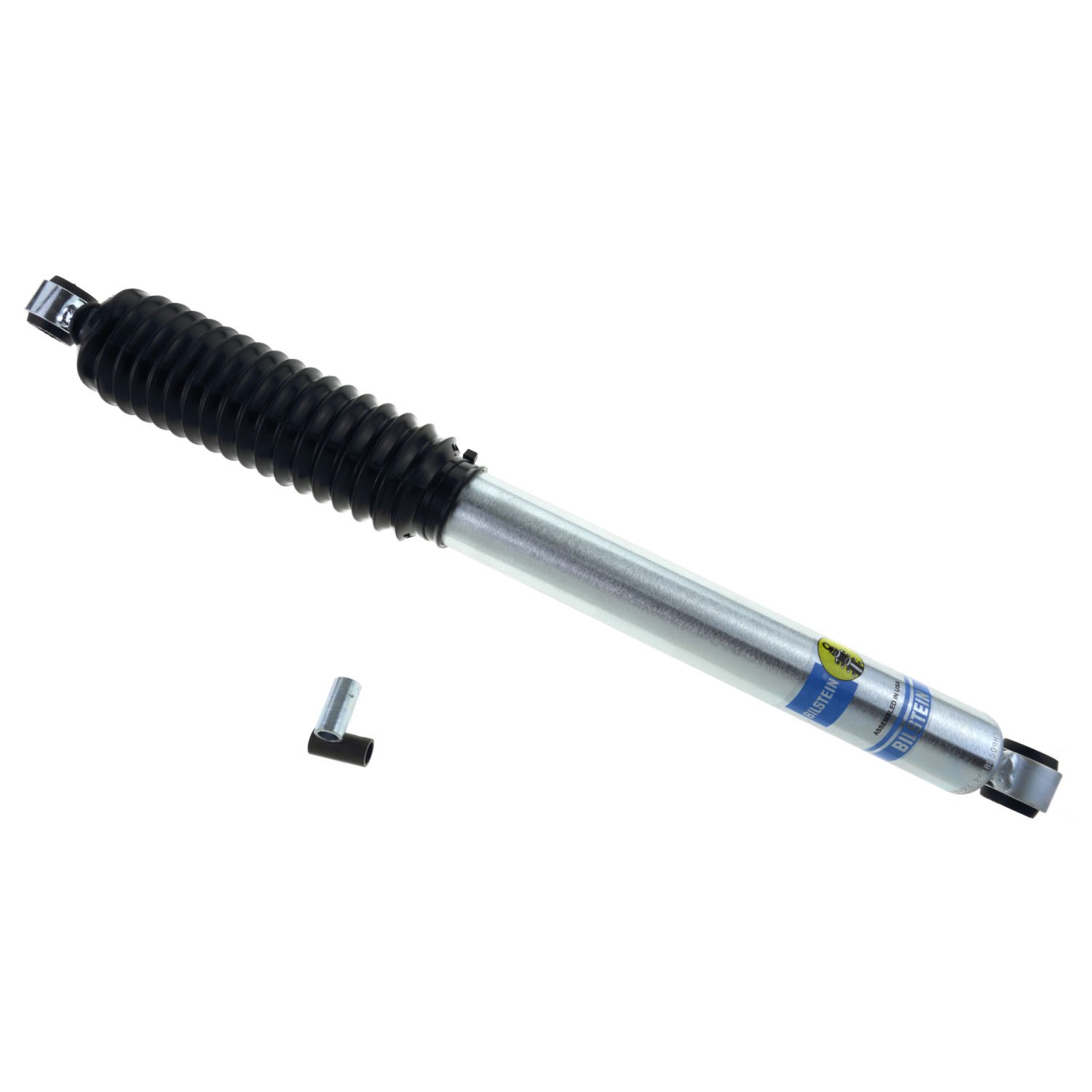

Bilstein 24-185509 B8 5100 - Suspension Shock Absorber

Bilstein 24-185509 B8 5100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Vehicle specific tuning
Patented digressive valving instantly reacts to changing surface conditions
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

Internal Design	Monotube
Stroke/Travel Length (IN)	10.02
Extended Length (MM)	664.5
Piston Diameter	46mm
Lower Mount Type	Eye 16mm
Adjustable Damping	Non-Adjustable
Title	Bilstein Shock Absorbers
Finish	Zinc Plated
Spring Seat Included	No
PartType	Shocks / Struts
Series	B8 5100
Collapsed Length (IN)	16.14
Upper Mount Type	Eye 16mm
Stroke/Travel Length (mm)	254.5
Segment	Light Truck
Body Design	Smooth Body (Non-Coilover)
Shaft Diameter	14mm
Collapsed Length (MM)	410.0
Boot Included	Black Bellows
Extended Length (IN)	26.16
Reservoir	No
