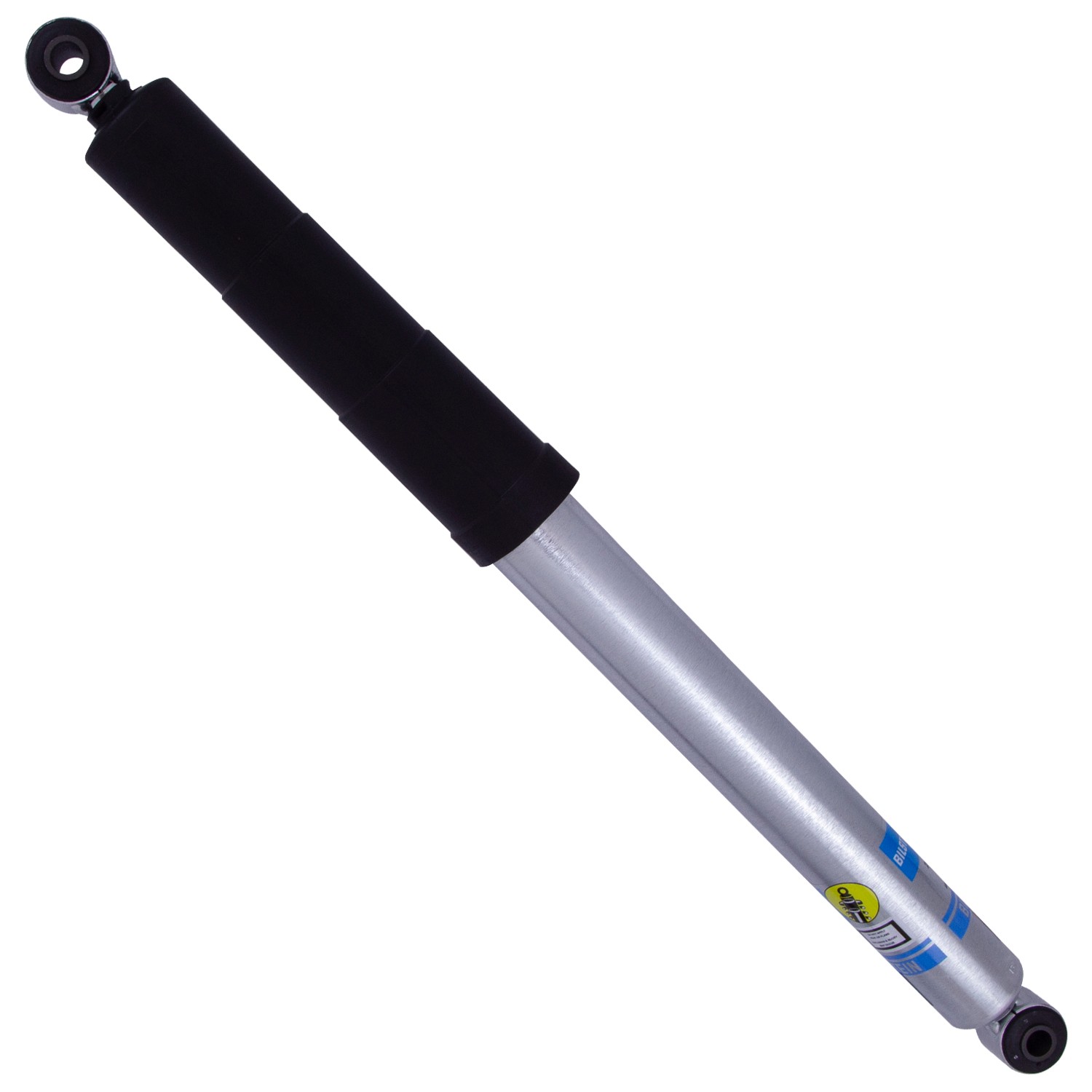

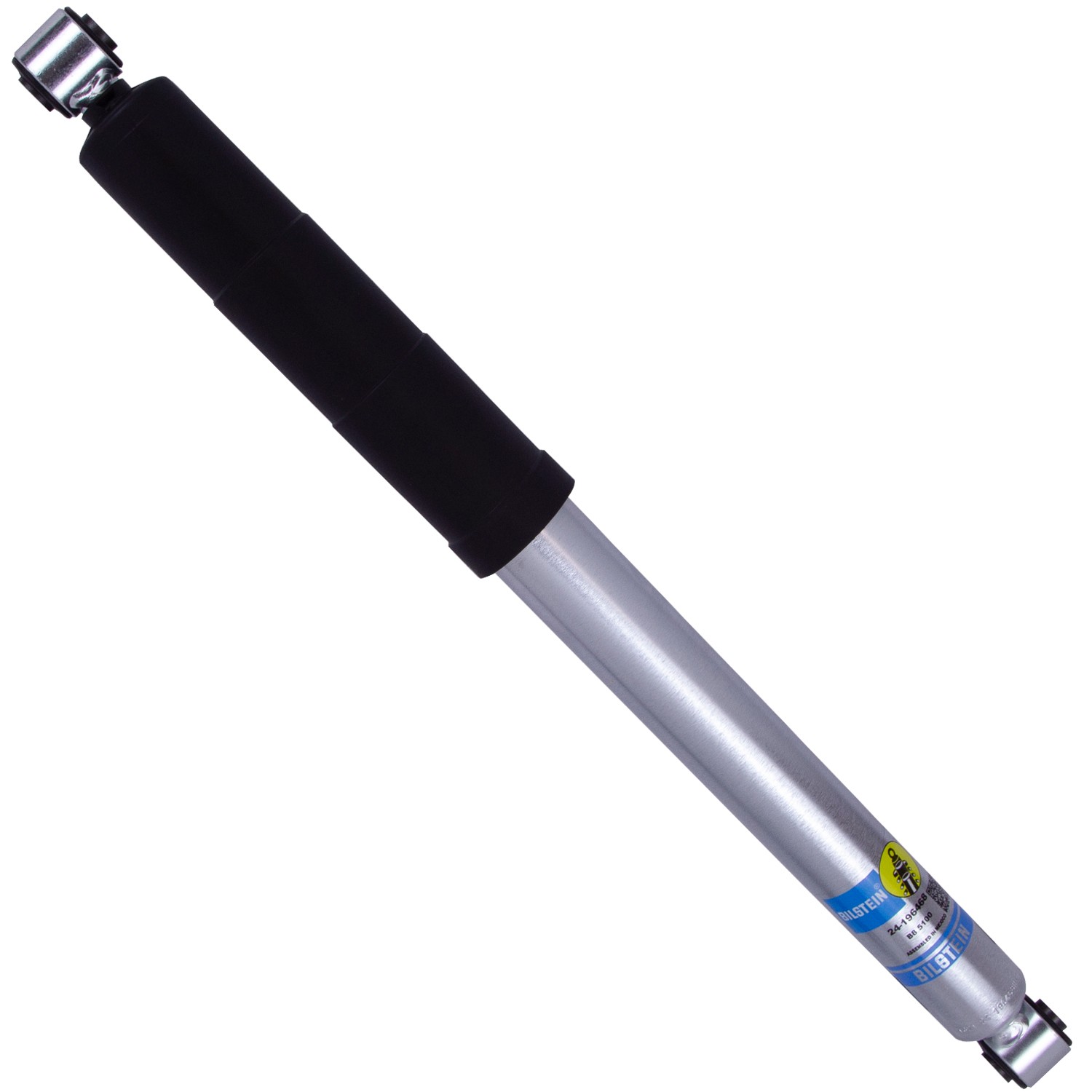

Bilstein 24-196468 B8 5100 - Suspension Shock Absorber Pack of 2

Bilstein 24-196468 B8 5100 – Suspension Shock Absorber Pack of 2

Bilstein 24-196468 B8 5100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

Collapsed Length (MM)	417.0
Title	Bilstein Shock Absorbers
Finish	Zinc Plated
Boot Included	Black Straight
Spring Seat Included	No
PartType	Shocks / Struts
Extended Length (IN)	26.79
Series	B8 5100
Reservoir	No
Collapsed Length (IN)	16.42
Stroke/Travel Length (IN)	10.37
Upper Mount Type	Eye 14.4mm
Stroke/Travel Length (mm)	263.4
Adjustable Damping	Non-Adjustable
Internal Design	Monotube
Extended Length (MM)	680.5
Piston Diameter	46mm
Segment	Light Truck
Lower Mount Type	Eye 14.4mm
Body Design	Smooth Body (Non-Coilover)
Shaft Diameter	14mm
