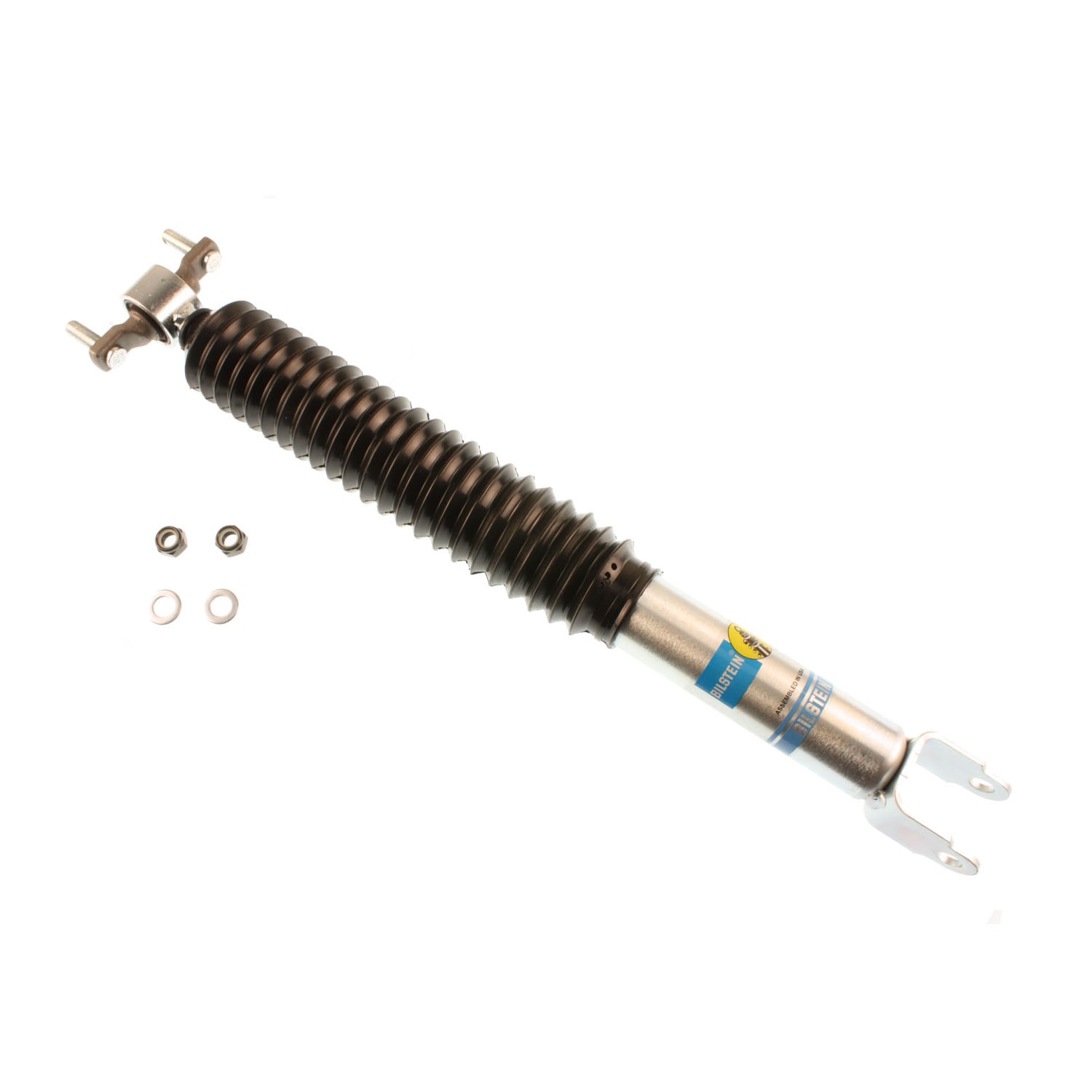

Bilstein 24-218023 B8 5100 - Suspension Shock Absorber

Bilstein 24-218023 B8 5100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Vehicle specific tuning
Patented digressive valving instantly reacts to changing surface conditions
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

Finish	Zinc Plated
Boot Included	Black Bellows
Spring Seat Included	No
PartType	Shocks / Struts
Extended Length (IN)	24.26
Series	B8 5100
Upper Mount Type	Bar Pin
Stroke/Travel Length (mm)	209.6
Body Design	Smooth Body (Non-Coilover)
Lower Mount Type	Clevis
Piston Diameter	46mm
Internal Design	Monotube
Stroke/Travel Length (IN)	8.25
Adjustable Damping	Non-Adjustable
Collapsed Length (IN)	15.98
Reservoir	No
Extended Length (MM)	616.2
Segment	Light Truck
Shaft Diameter	14mm
Collapsed Length (MM)	406.0
Title	Bilstein Shock Absorbers
