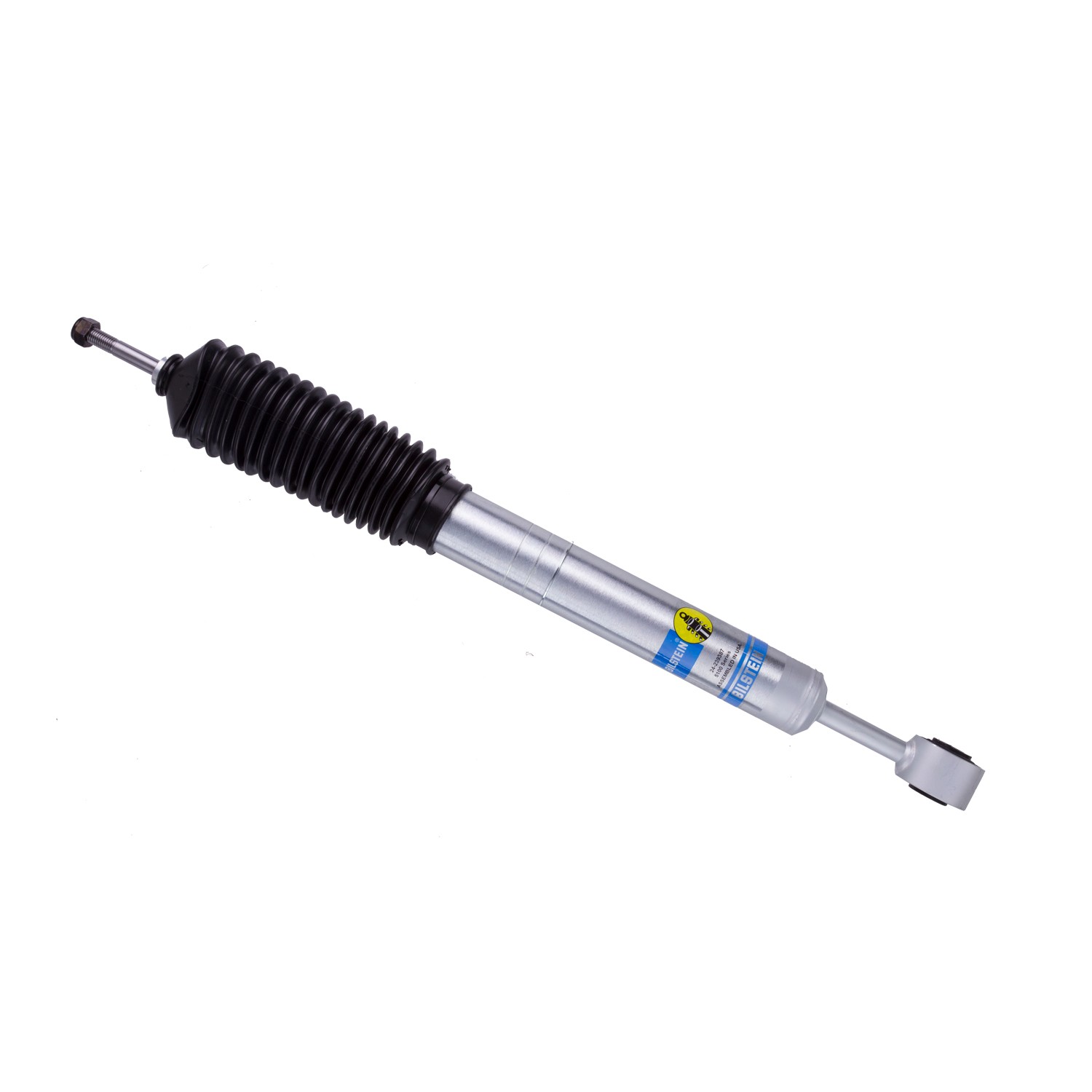

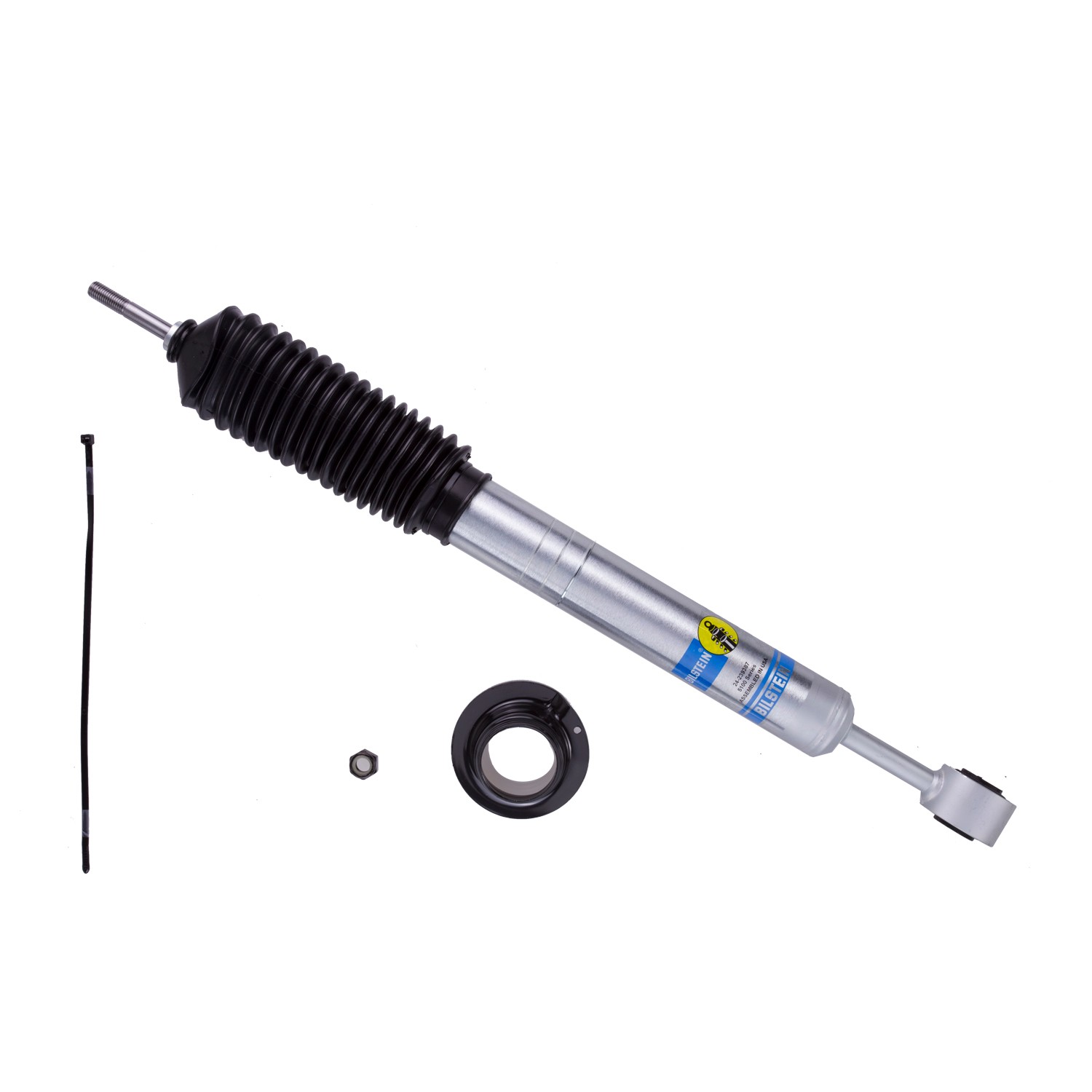

Bilstein 24-239387 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber Pack of 2

Bilstein 24-239387 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber Pack of 2

Bilstein 24-239387 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

46mm monotube design ensures consistent, fade-free performance in all conditions
Adjustable spring seat offers 0-2.75in of lift, depending on the application
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Attributes:

Internal Design	Monotube
Body Design	Snap Ring Grooved Body (Coilover)
Shaft Diameter	14mm
Title	Bilstein Shock Absorbers
Boot Included	Black Bellows
Spring Seat Included	Yes
Extended Length (IN)	24.32
Reservoir	No
Extended Length (MM)	617.8
Adjustable Damping	Non-Adjustable
Stroke/Travel Length (IN)	6.56
Piston Diameter	46mm
Upper Mount Type	Stem
Stroke/Travel Length (mm)	166.6
Lower Mount Type	Eye 16.4mm
Segment	Light Truck
Collapsed Length (MM)	451.3
Finish	Zinc Plated
PartType	Shocks / Struts
Series	B8 5100 (Ride Height Adjustable)
Collapsed Length (IN)	17.77
