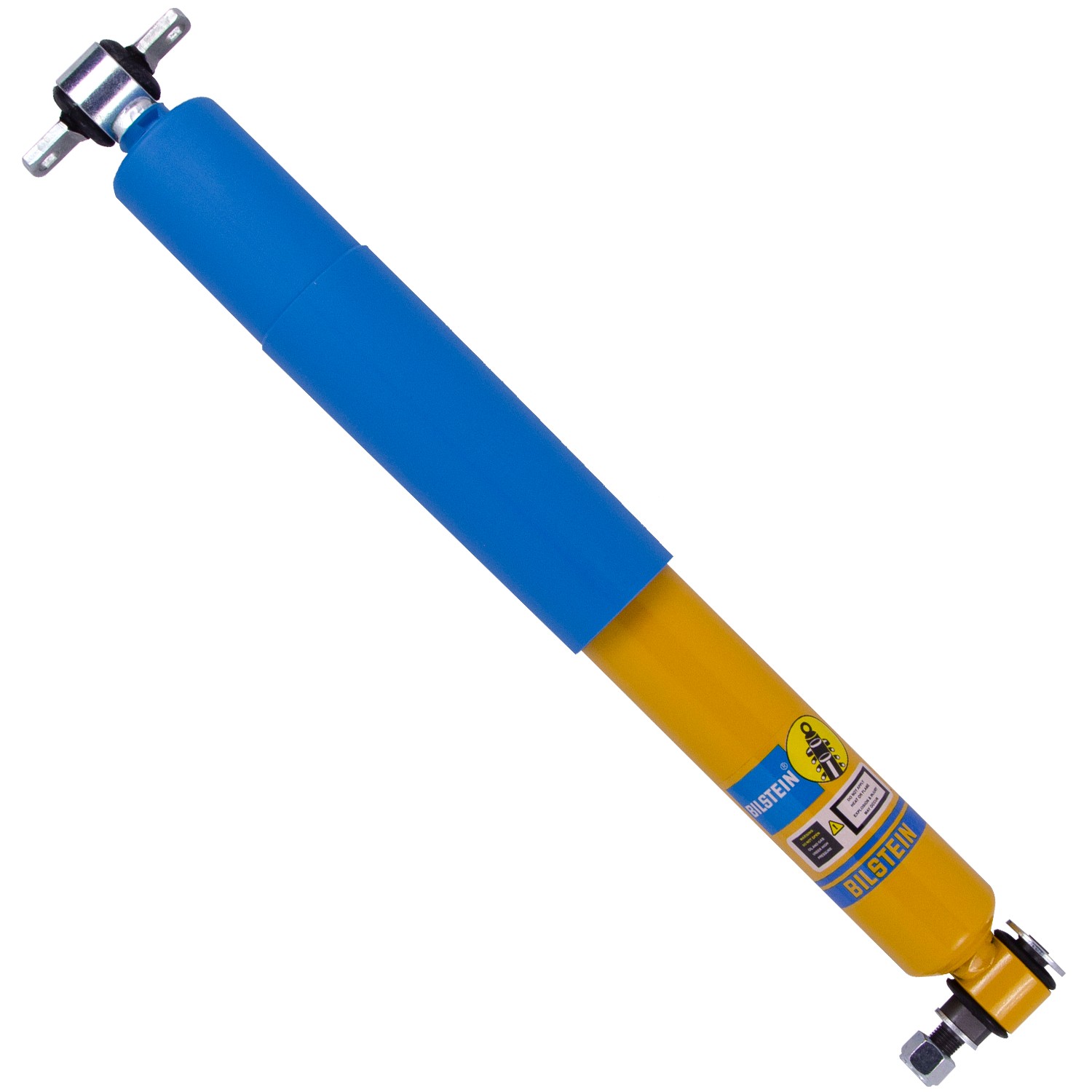

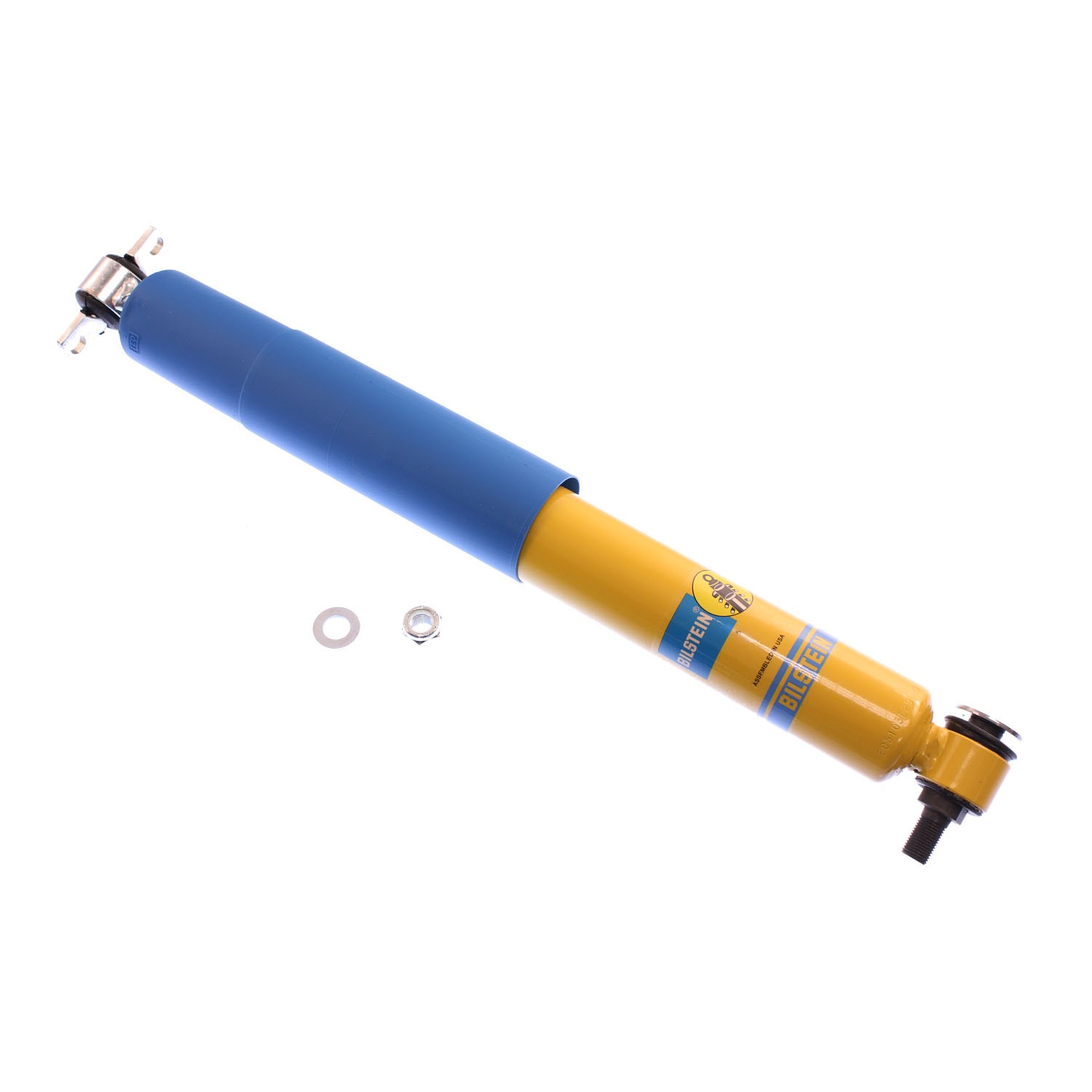

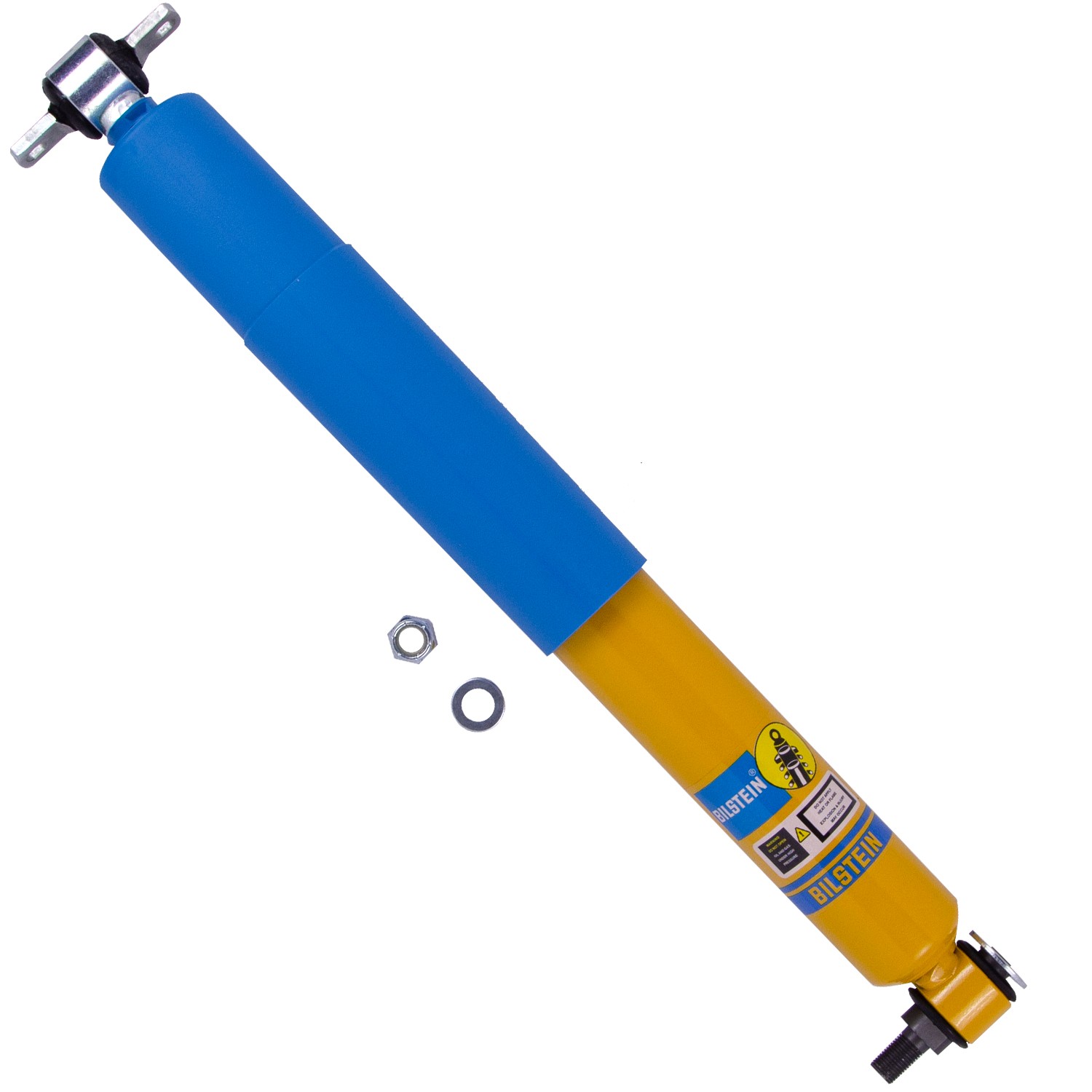

Bilstein 24-291699 AK Series - Suspension Shock Absorber Pack of 2

Bilstein 24-291699 AK Series – Suspension Shock Absorber Pack of 2

Bilstein 24-291699 AK Series – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Monotube design ensures consistent, fade-free performance in all conditions
Direct fit (OE) mounting design
Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body’s mounting requirements.

Attributes:

Extended Length (MM)	515.0
Compression @0.52m/s	1035
Stroke/Travel Length (IN)	7.17
Stroke/Travel Length (mm)	182.1
Lower Mount Type	Cantilever
Upper Mount Type	Bar Pin
Piston Type	Linear
Shaft Diameter	11mm
Segment	Motorsports
Body Design	Stock Mount Smooth Body
Internal Design	Monotube
Spring Seat Included	No
Rebound @0.26m/s	1130
PartType	Shocks / Struts
Series	AK Series
Extended Length (IN)	20.28
Rebound @0.52m/s	2135
Collapsed Length (IN)	13.11
Collapsed Length (MM)	333.0
Body Material	Steel
Adjustable Damping	Non-Adjustable
Piston Diameter	46mm
Title	Bilstein Shock Absorbers
Spring Hardware	N/A
Finish	Yellow Paint
Boot Included	Blue Straight
Compression @0.26m/s	630

Vehicle Applications:

Make	Model	Years
Buick	Century	1973 to 1981
Buick	Commercial Chassis	1991 to 1996
Buick	Electra	1977 to 1984
Buick	Estate Wagon	1975 to 1983
Buick	LeSabre	1977 to 1990
Buick	Regal	1975 to 1987
Buick	Roadmaster	1991 to 1996
Cadillac	Brougham	1987 to 1990
Cadillac	DeVille	1980 to 1984
Cadillac	Fleetwood	1980 to 1990
Chevrolet	Caprice	1975 to 1996
Chevrolet	Chevelle	1968 to 1973
Chevrolet	El Camino	1968 to 1972
Chevrolet	Impala	1975 to 1996
Chevrolet	Malibu	1975 to 1983
Chevrolet	Monte Carlo	1975 to 1988
Chevrolet	Nova	1970 to 1972
GMC	Caballero	1978 to 1986
GMC	Sprint	1975 to 1977
Oldsmobile	Cutlass Calais	1978 to 1984
Oldsmobile	Cutlass Cruiser	1980 to 1983
Oldsmobile	Cutlass Salon	1975 to 1987
Oldsmobile	Cutlass Supreme	1975 to 1987
Oldsmobile	Cutlass Tiara	1976 to 1976
Oldsmobile	Cutlass	1975 to 1997
Oldsmobile	Delta 88	1977 to 1987
Oldsmobile	F85	1968 to 1972
Pontiac	Bonneville	1982 to 1986
Pontiac	GTO	1968 to 1972
Pontiac	Grand Am	1975 to 1980
Pontiac	Grand Prix	1975 to 1987
Pontiac	LeMans	1970 to 1981
Pontiac	Parisienne	1983 to 1986
