Bilstein 24-325578 B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber Pack of 2

Bilstein 24-325578 B8 6100 (Ride Height Adjustable) – Suspension Shock Absorber Pack of 2

Bilstein 24-325578 B8 6100 (Ride Height Adjustable) – Suspension Shock Absorber

60mm Monotube Shock Absorber

Features:

Large 60mm body for increased oil capacity, cooling, and long-term durability
Vehicle specific tuning
60mm digressive piston improves ride comfort and control over rough terrain

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Attributes:

Finish	Zinc Plated
Series	B8 6100 (Ride Height Adjustable)
PartType	Shocks / Struts
Extended Length (IN)	25.56
Collapsed Length (IN)	17.11
Reservoir	No
Stroke/Travel Length (IN)	8.45
Upper Mount Type	Stem
Stroke/Travel Length (mm)	214.6
Adjustable Damping	Non-Adjustable
Extended Length (MM)	649.3
Piston Diameter	60mm
Lower Mount Type	Eye 20.2mm
Internal Design	Monotube
Segment	Light Truck
Body Design	Snap Ring Grooved Body (Coilover)
Shaft Diameter	18mm
Collapsed Length (MM)	434.6
Title	Bilstein Shock Absorbers
Boot Included	No

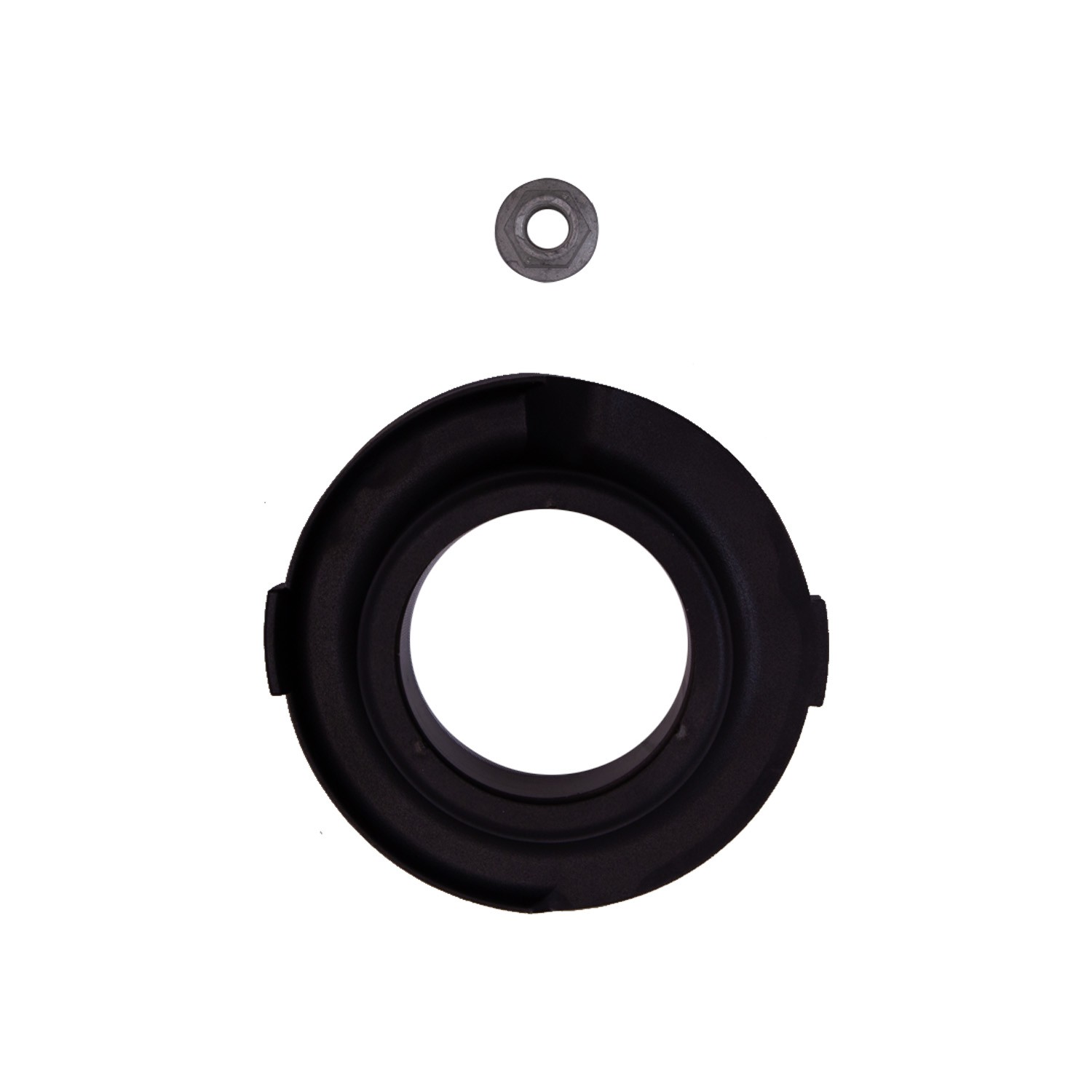

Spring Seat Included	Yes
