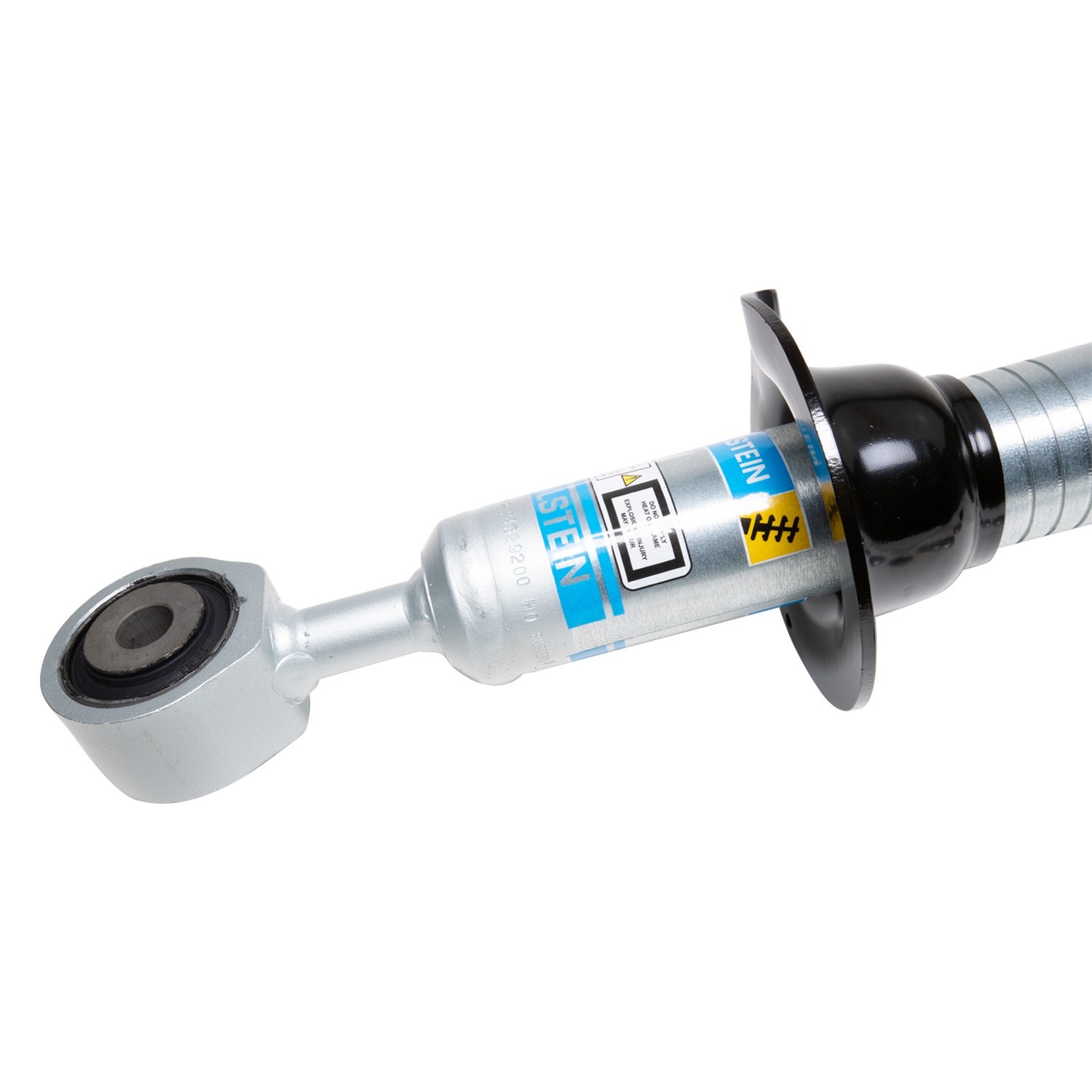

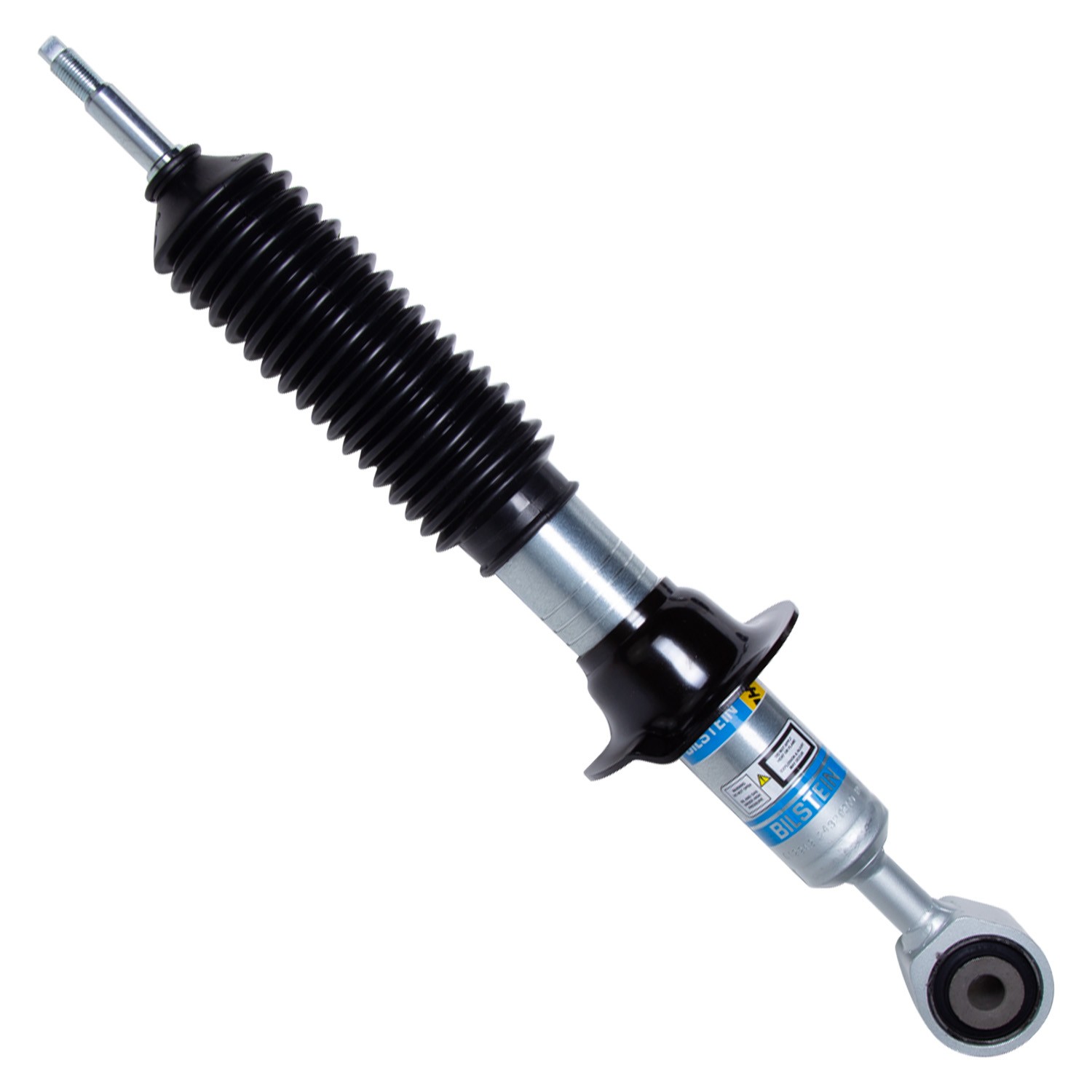

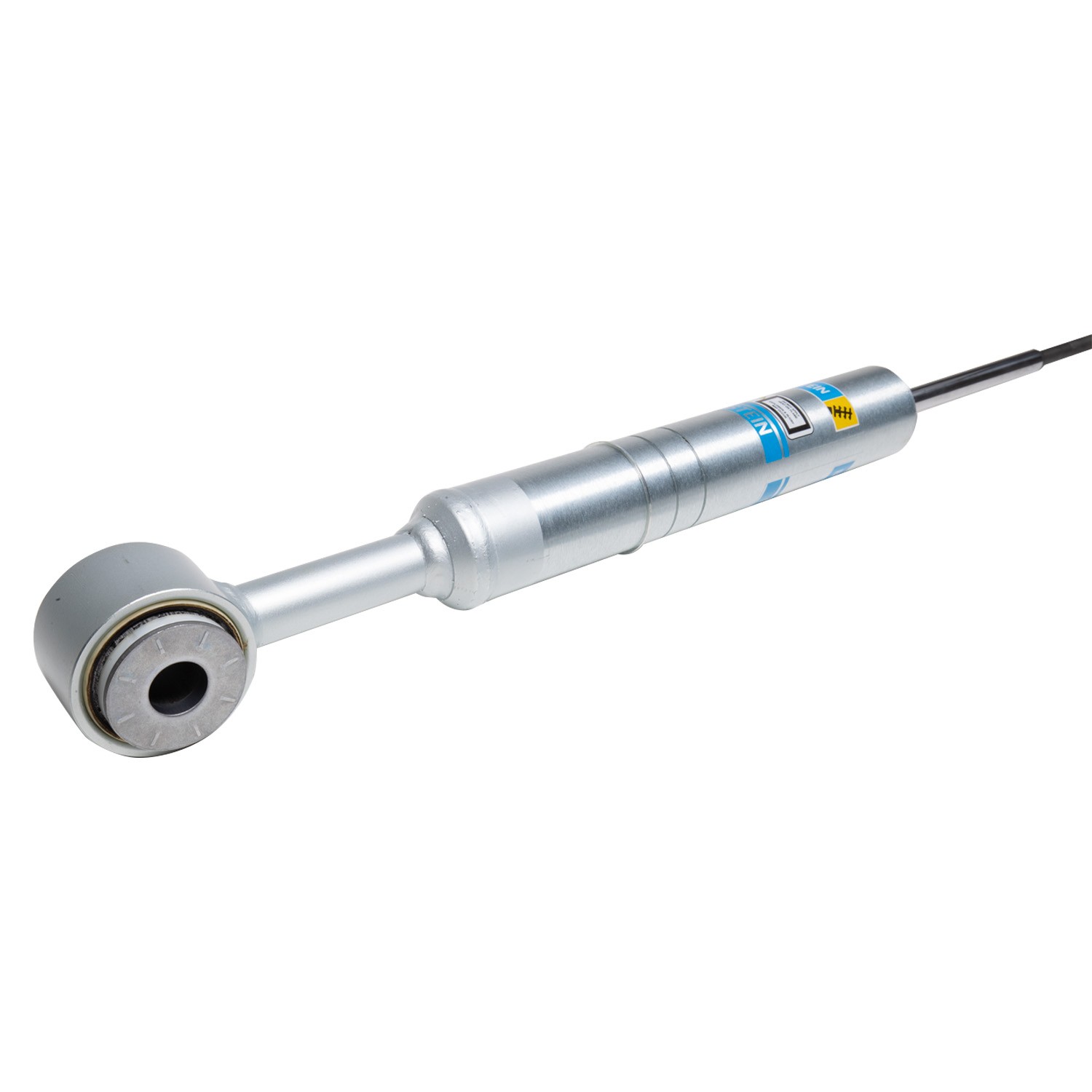

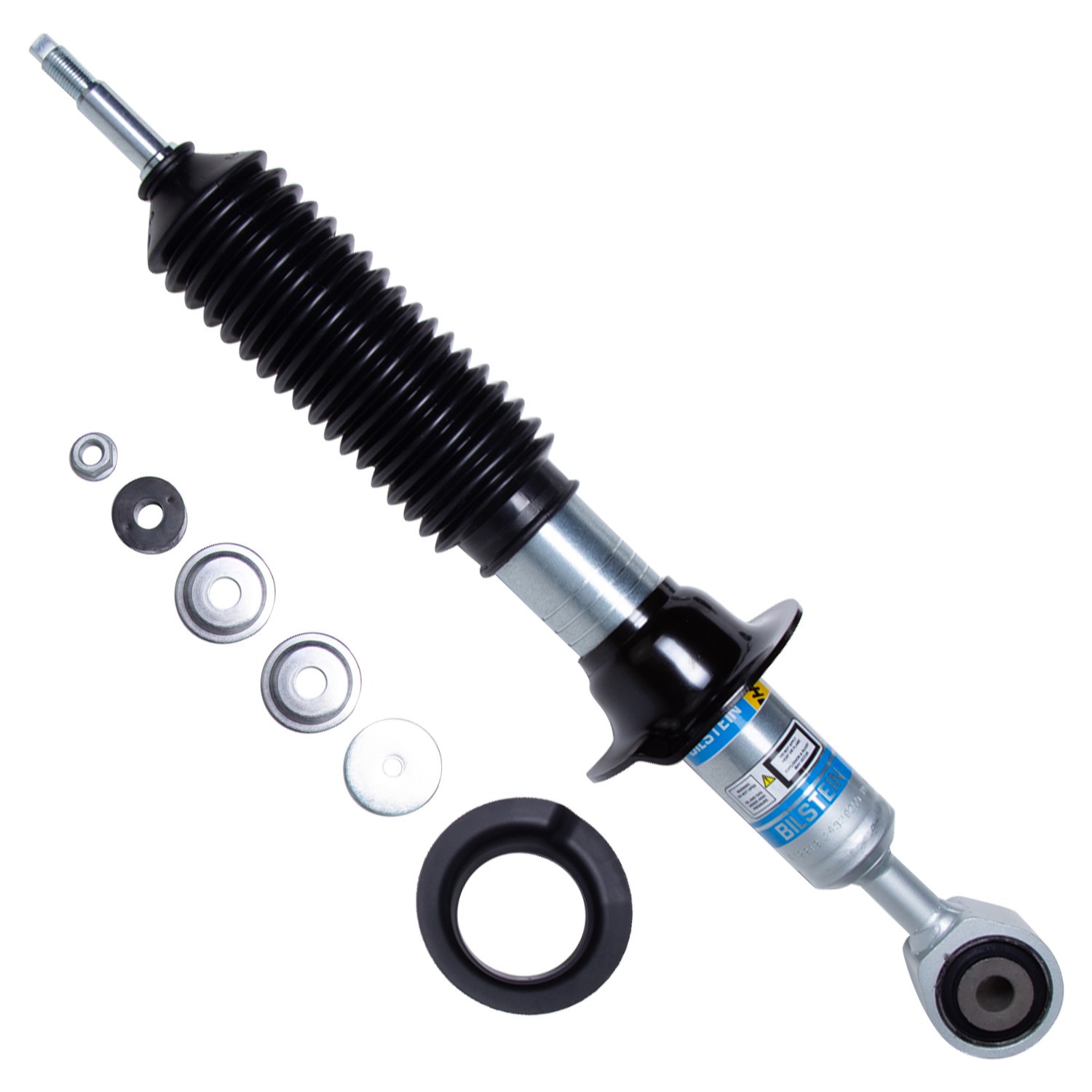

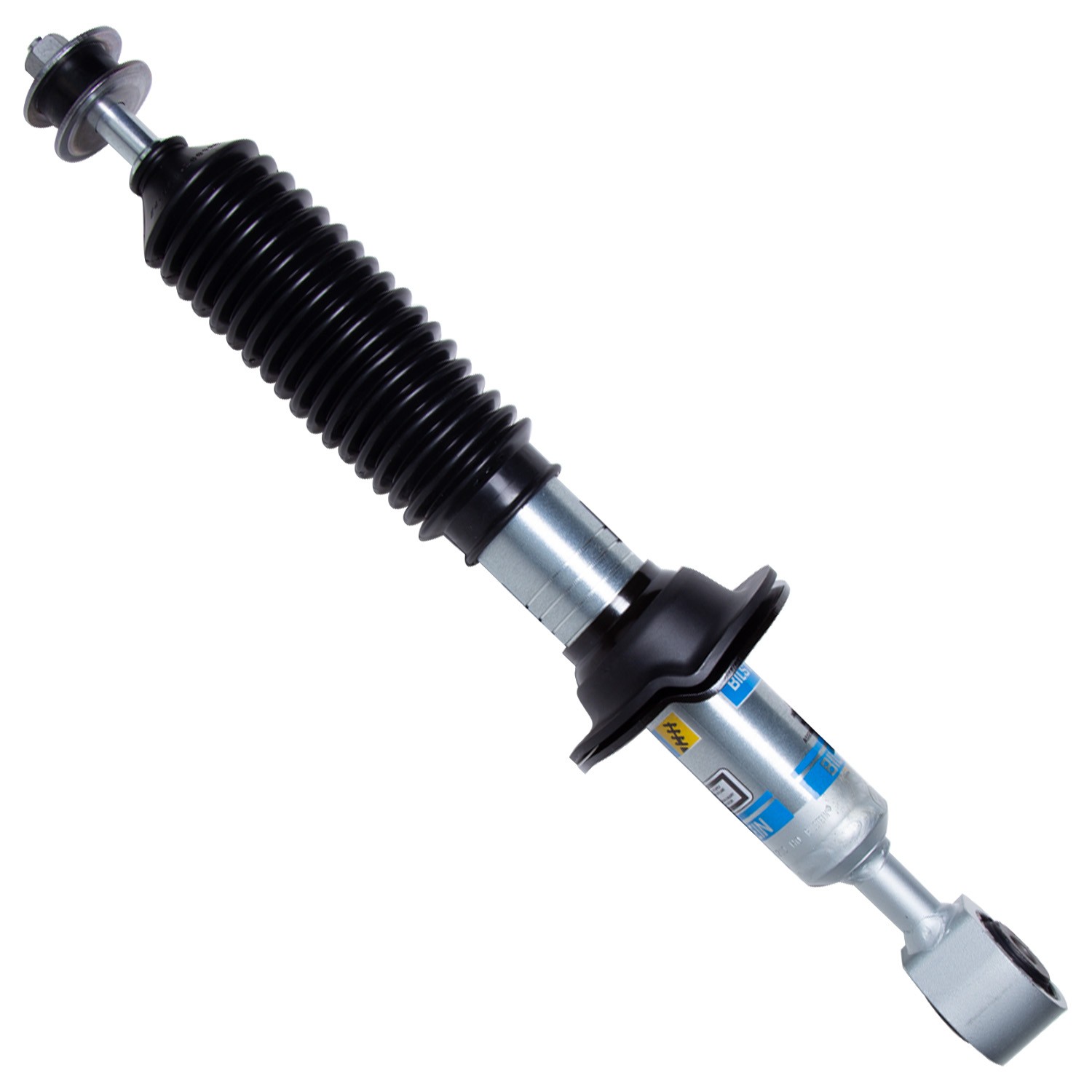

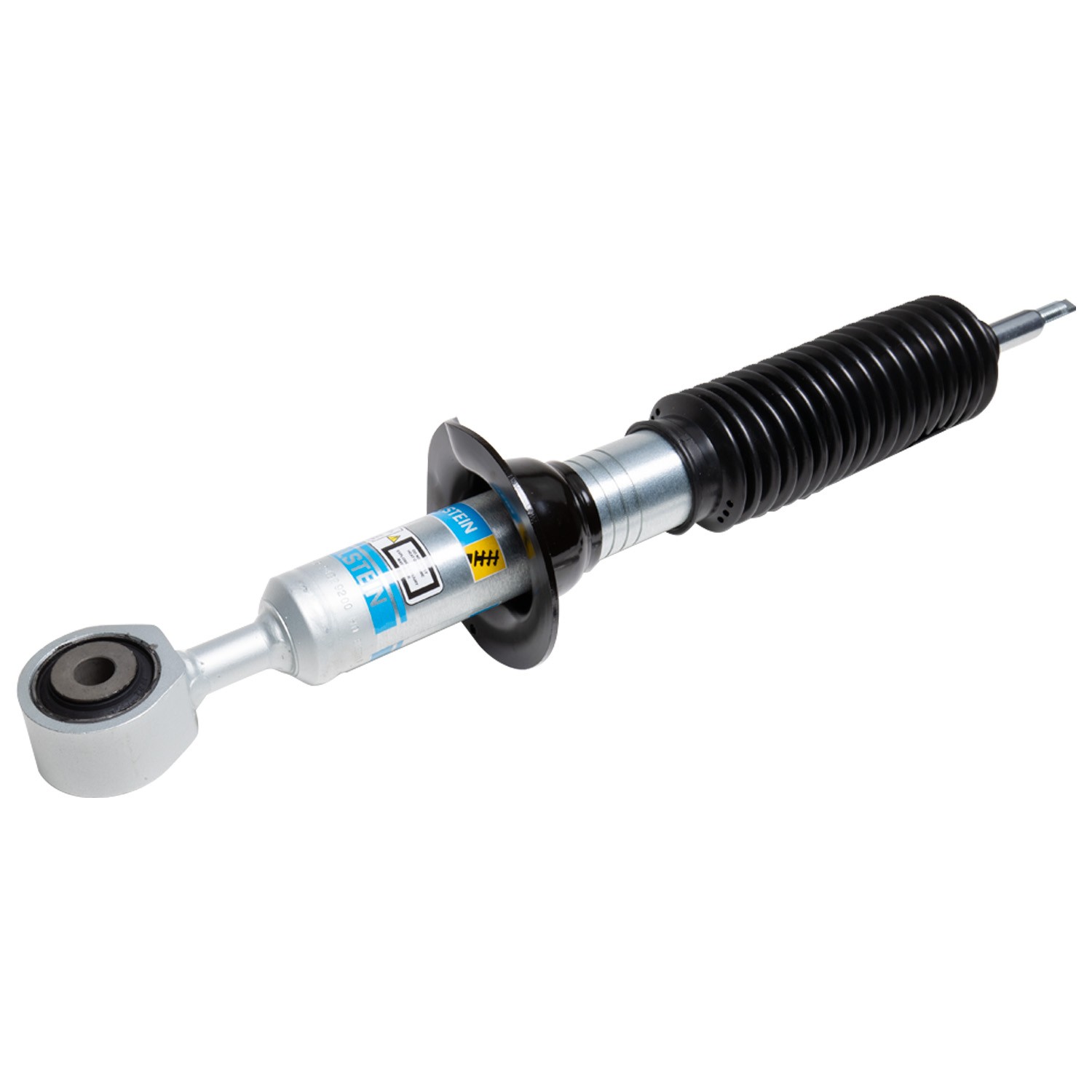

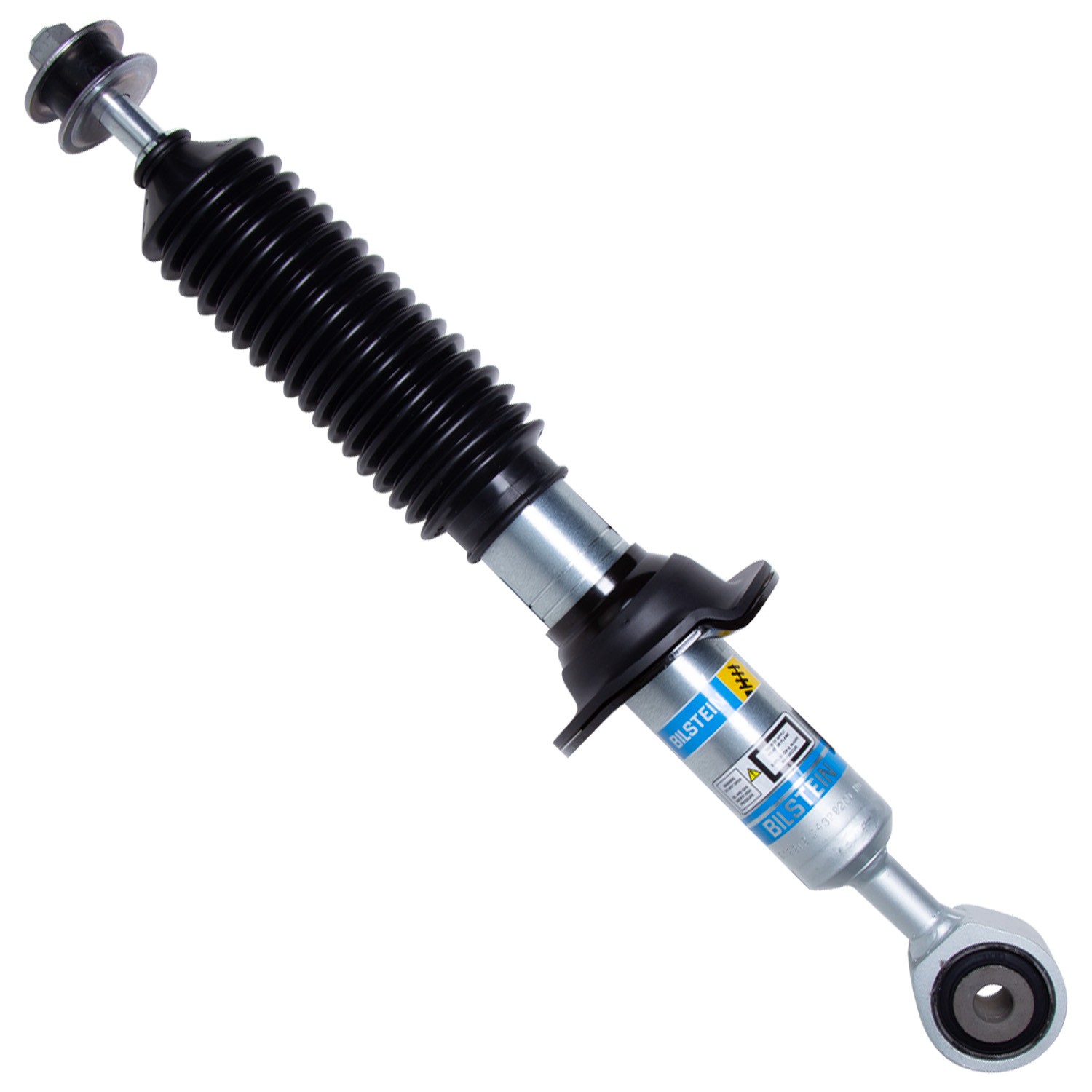

Bilstein 24-329200 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber Pack of 2
Bilstein 24-329200 B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber
46mm Monotube Shock Absorber
Features:
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- 46mm monotube design ensures consistent, fade-free performance in all conditions
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Attributes:
| Shaft Diameter | 14mm |
| Extended Length (IN) | 20.22 |
| PartType | Shocks / Struts |

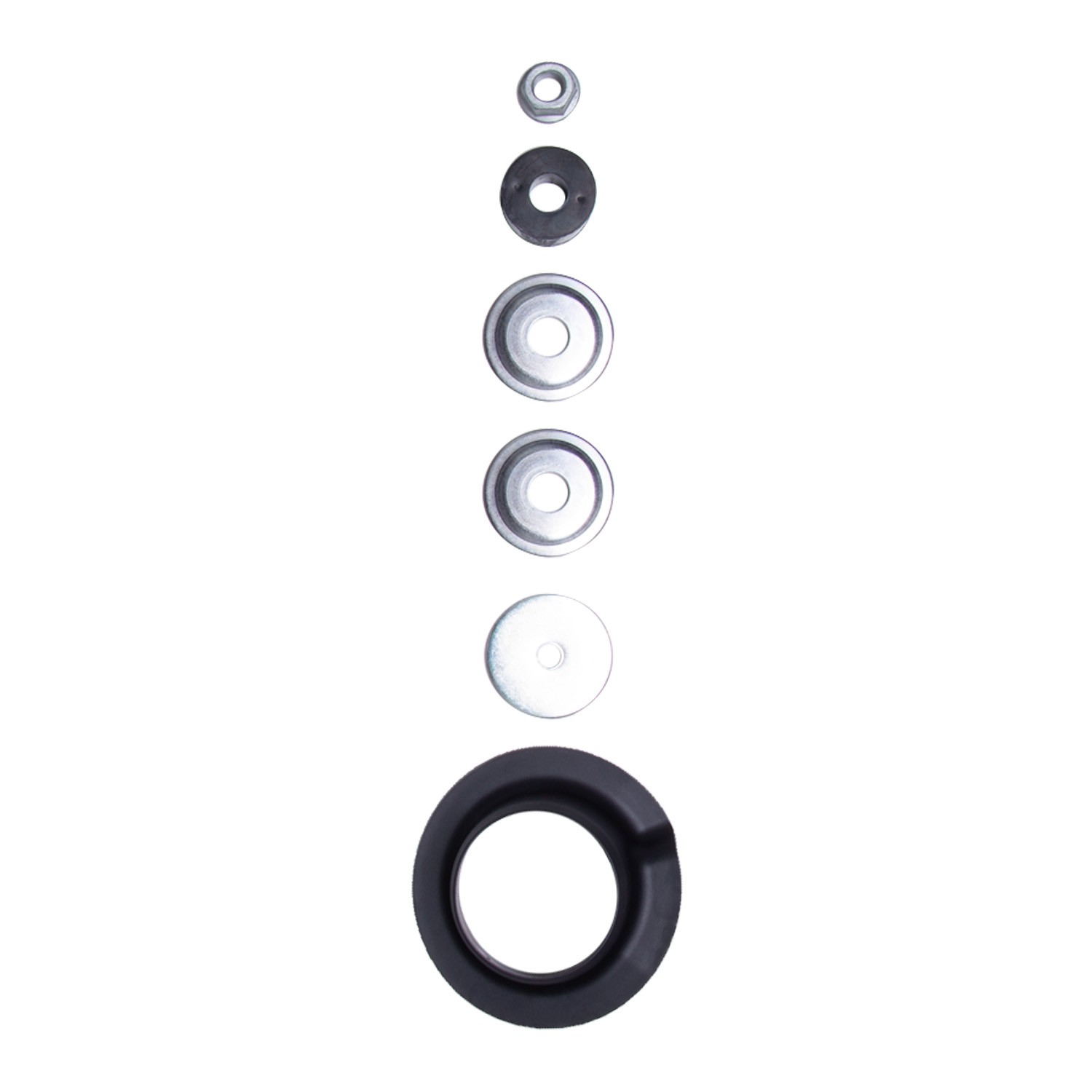

| Spring Seat Included | Yes |
| Boot Included | Black Bellows |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (MM) | 404.0 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Internal Design | Monotube |
| Extended Length (MM) | 513.5 |
| Series | B8 5100 (Ride Height Adjustable) |
| Collapsed Length (IN) | 15.91 |
| Reservoir | No |
| Upper Mount Type | Stem |
| Finish | Zinc Plated |
| Segment | Light Truck |
| Lower Mount Type | Eye 16.2mm |
| Piston Diameter | 46mm |
| Adjustable Damping | Non-Adjustable |
| Stroke/Travel Length (IN) | 4.31 |
| Stroke/Travel Length (mm) | 109.5 |
Vehicle Applications:
| Make | Model | Years |
| Toyota | Sequoia | 2023 to 2025 |
| Toyota | Tundra | 2022 to 2025 |
