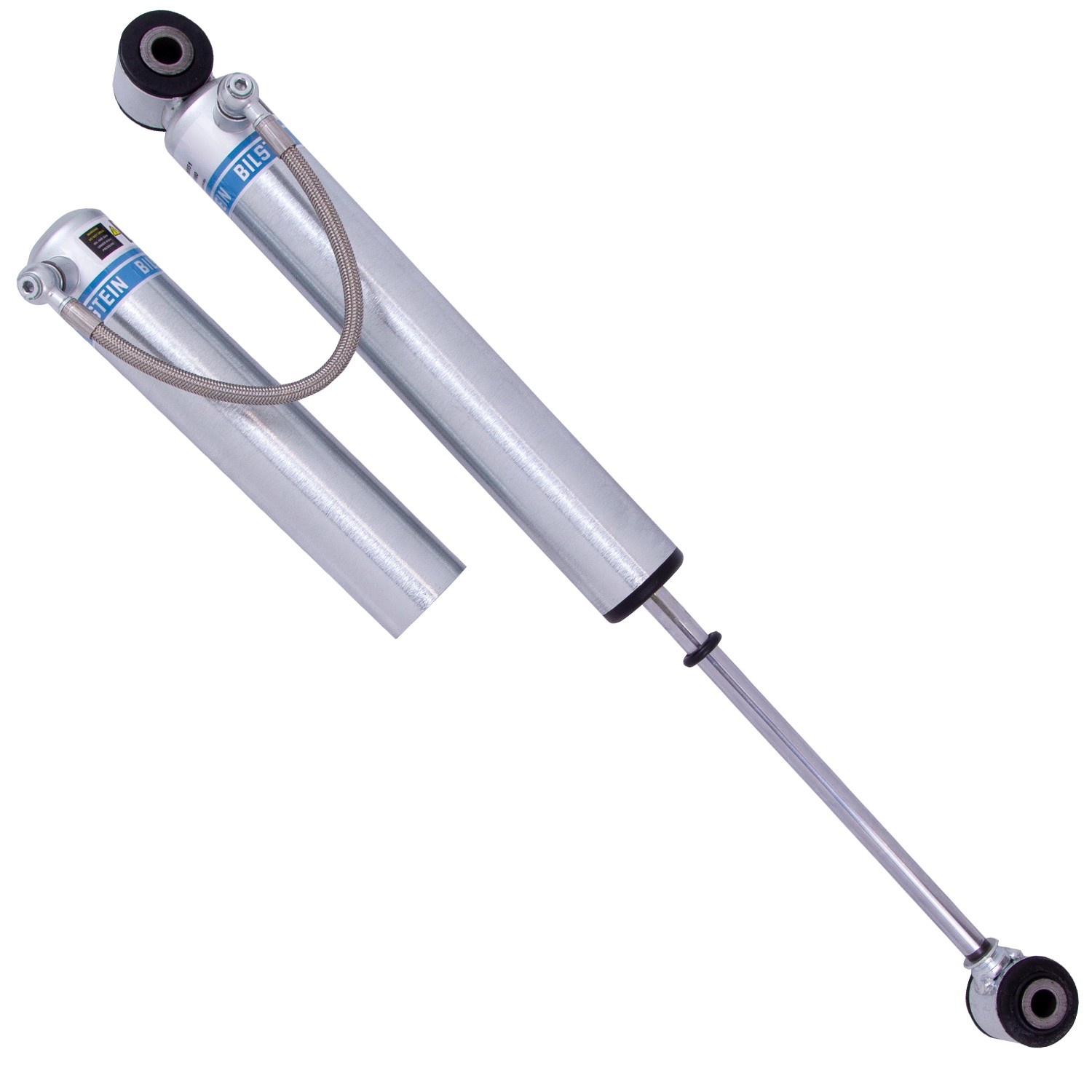

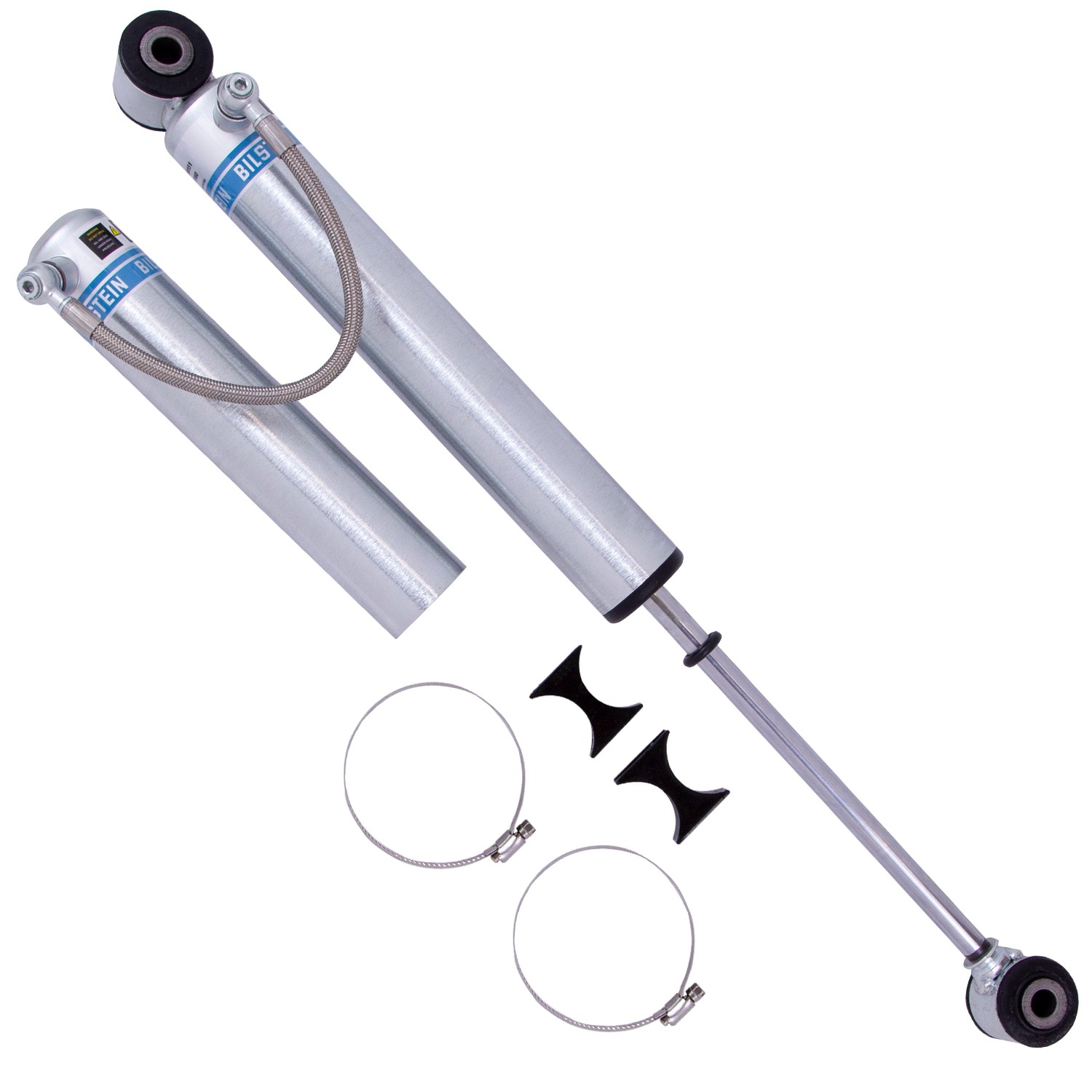

Bilstein 25-286151 B8 5160 – Suspension Shock Absorber Pack of 2
Bilstein 25-286151 B8 5160 – Suspension Shock Absorber
46mm Monotube Shock Absorber
Features:
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Remote reservoir increases shock oil capacity for greater heat dissipation
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Attributes:
| Collapsed Length (MM) | 380.0 |
| Body Design | Smooth Body (Non-Coilover) |
| Lower Mount Type | Eye 14mm |
| Segment | Light Truck |
| Internal Design | Monotube |
| Billet Reservoir Clamp Included | No |
| Piston Diameter | 46mm |
| Extended Length (MM) | 629.2 |
| Stroke/Travel Length (mm) | 249.2 |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | Eye 14mm |
| Collapsed Length (IN) | 14.96 |
| Reservoir | Yes |
| Stroke/Travel Length (IN) | 9.81 |
| Extended Length (IN) | 24.77 |
| PartType | Shocks / Struts |
| Series | B8 5160 |
| Spring Seat Included | No |
| Finish | Zinc Plated |
| Boot Included | No |
| Optional Reservoir Clamp | 11-176015 |
| Title | Bilstein Shock Absorbers |
| Shaft Diameter | 14mm |
Vehicle Applications:
| Make | Model | Years |
| Nissan | TITAN | 2017 to 2024 |
