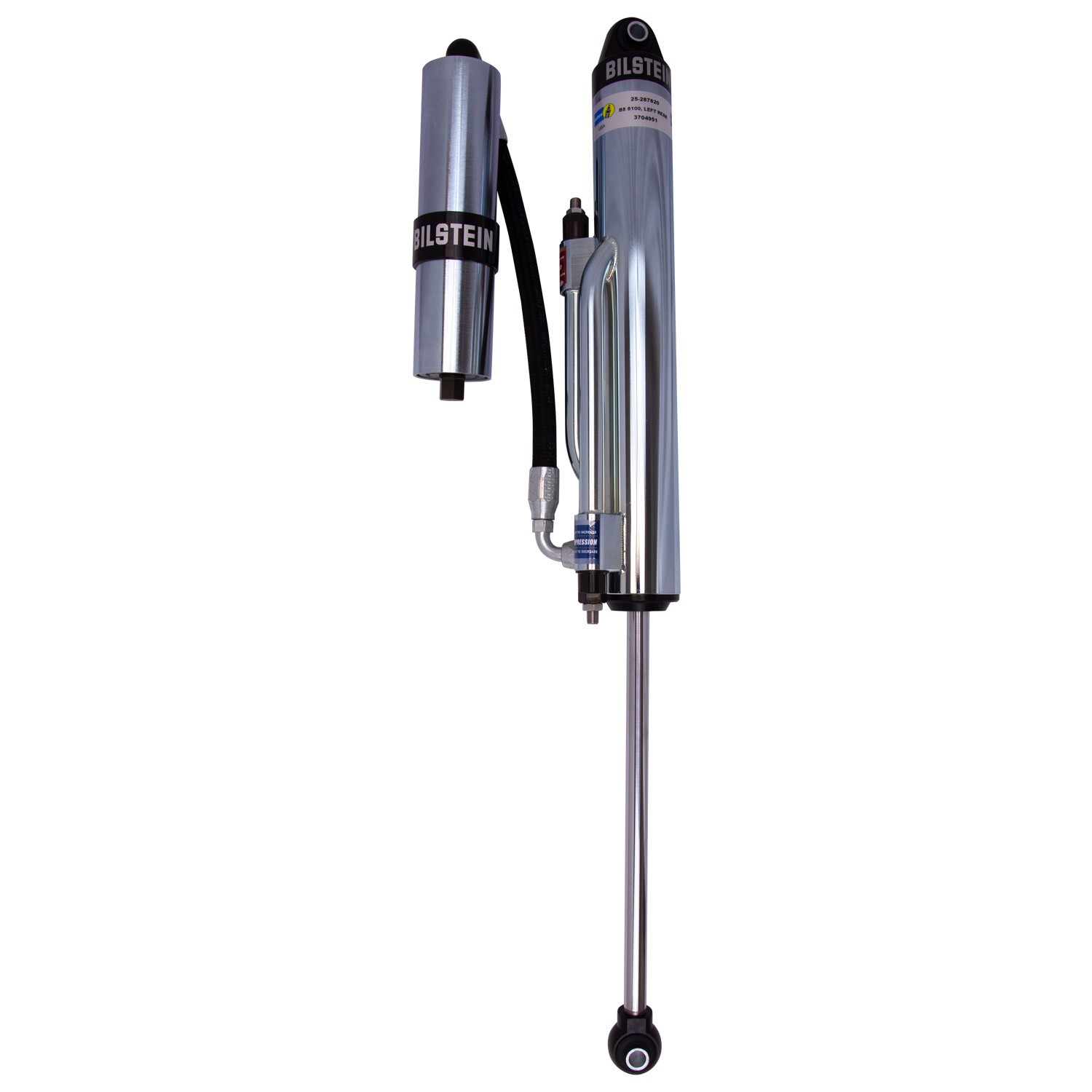

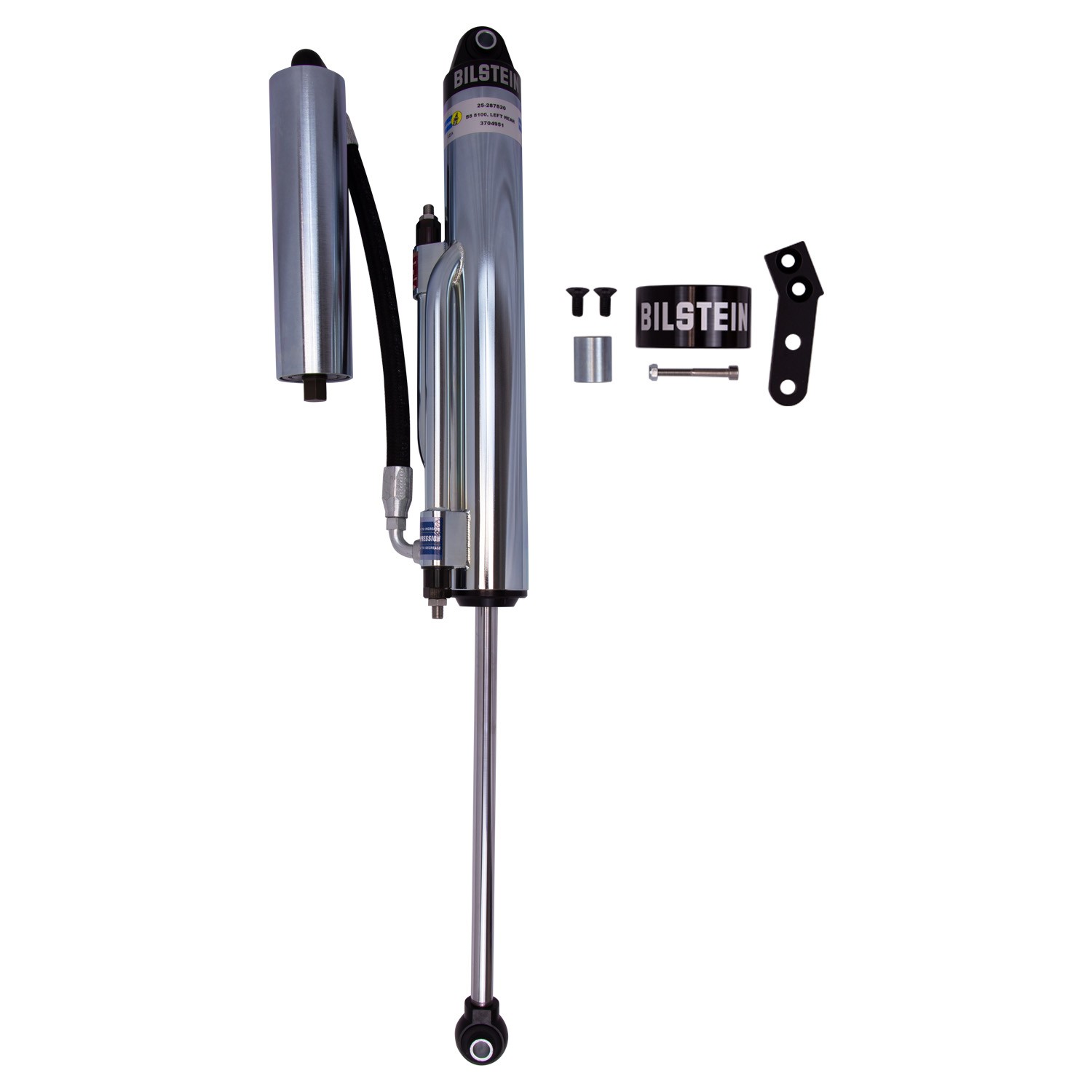

Bilstein 25-287820 B8 8100 (Bypass) – Suspension Shock Absorber
60mm Shock Absorber
Features:
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression

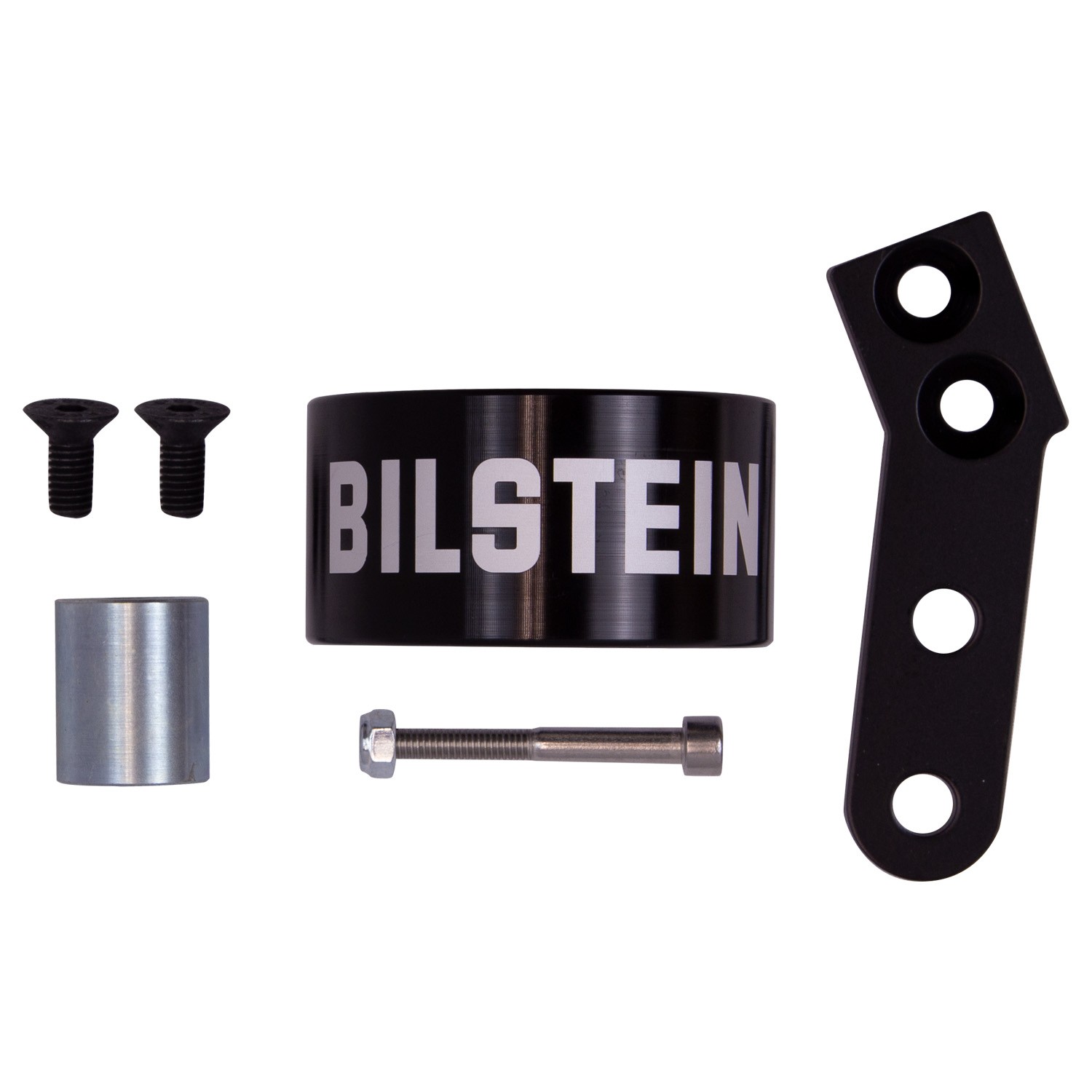

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Attributes:
| Collapsed Length (MM) | 495.0 |
| PartType | Shocks / Struts |
| Spring Seat Included | No |
| Boot Included | No |
| Title | Bilstein Shock Absorbers |
| Body Design | Bypass Body (Non-Coilover) |
| Internal Design | Monotube |
| Extended Length (MM) | 813.0 |
| Segment | Light Truck |
| Shaft Diameter | 18mm |
| Lower Mount Type | Eye 12.8mm |
| Piston Diameter | 60mm |
| Upper Mount Type | Eye 12.8mm |
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Reservoir | Yes |
| Collapsed Length (IN) | 19.49 |
| Extended Length (IN) | 32.01 |
| Series | B8 8100 (Bypass) |
| Finish | Zinc Plated |
Vehicle Applications:
| Make | Model | Years |
| Jeep | Wrangler | 2018 to 2024 |
