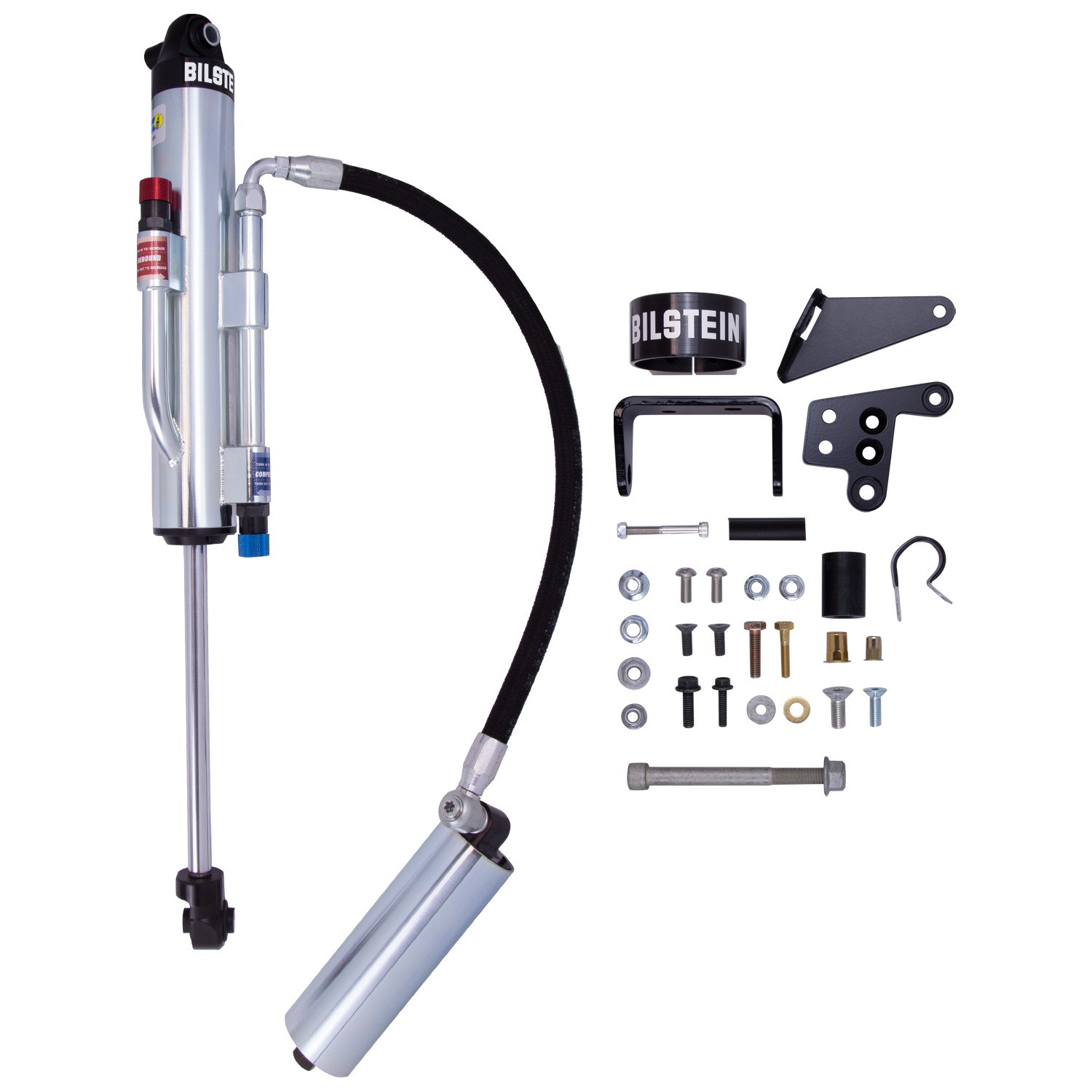

Bilstein 25-305241 B8 8100 (Bypass) – Suspension Shock Absorber

£1,228.95 Inc VAT

- +

Bilstein 25-305241 B8 8100 (Bypass) – Suspension Shock Absorber

60mm Shock Absorber

Features:

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability



Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.



Attributes:

Internal Design Monotube
Piston Diameter 60mm
Lower Mount Type Eye 12.8mm
Segment Light Truck
Shaft Diameter 18mm
Finish Zinc Plated
PartType Shocks / Struts
Extended Length (IN) 27.24
Collapsed Length (IN) 17.17
Reservoir Yes
Upper Mount Type Eye 12.8mm
Extended Length (MM) 692.0
Body Design Bypass Body (Non-Coilover)
Collapsed Length (MM) 436.2
Title Bilstein Shock Absorbers
Boot Included No
Spring Seat Included No
Series B8 8100 (Bypass)
Adjustable Damping Double Adjustable Compression and Rebound with Click Adjuster Knobs



Vehicle Applications:

Make Model Years
Jeep Gladiator 2020 to 2024
Weight 10.328 kg
