Bilstein 25-316919 B8 5160 – Suspension Shock Absorber

£298.95 Inc VAT

- +

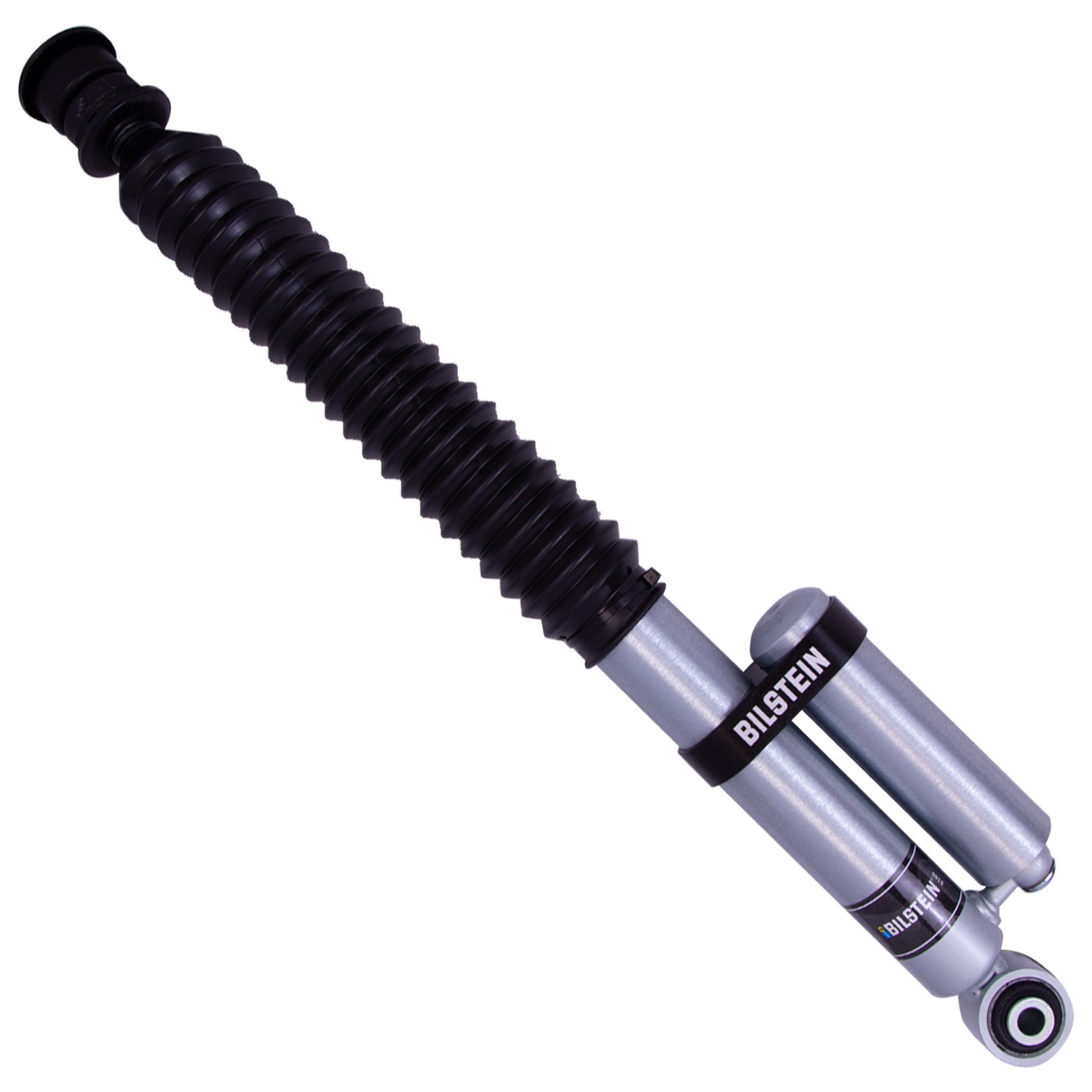

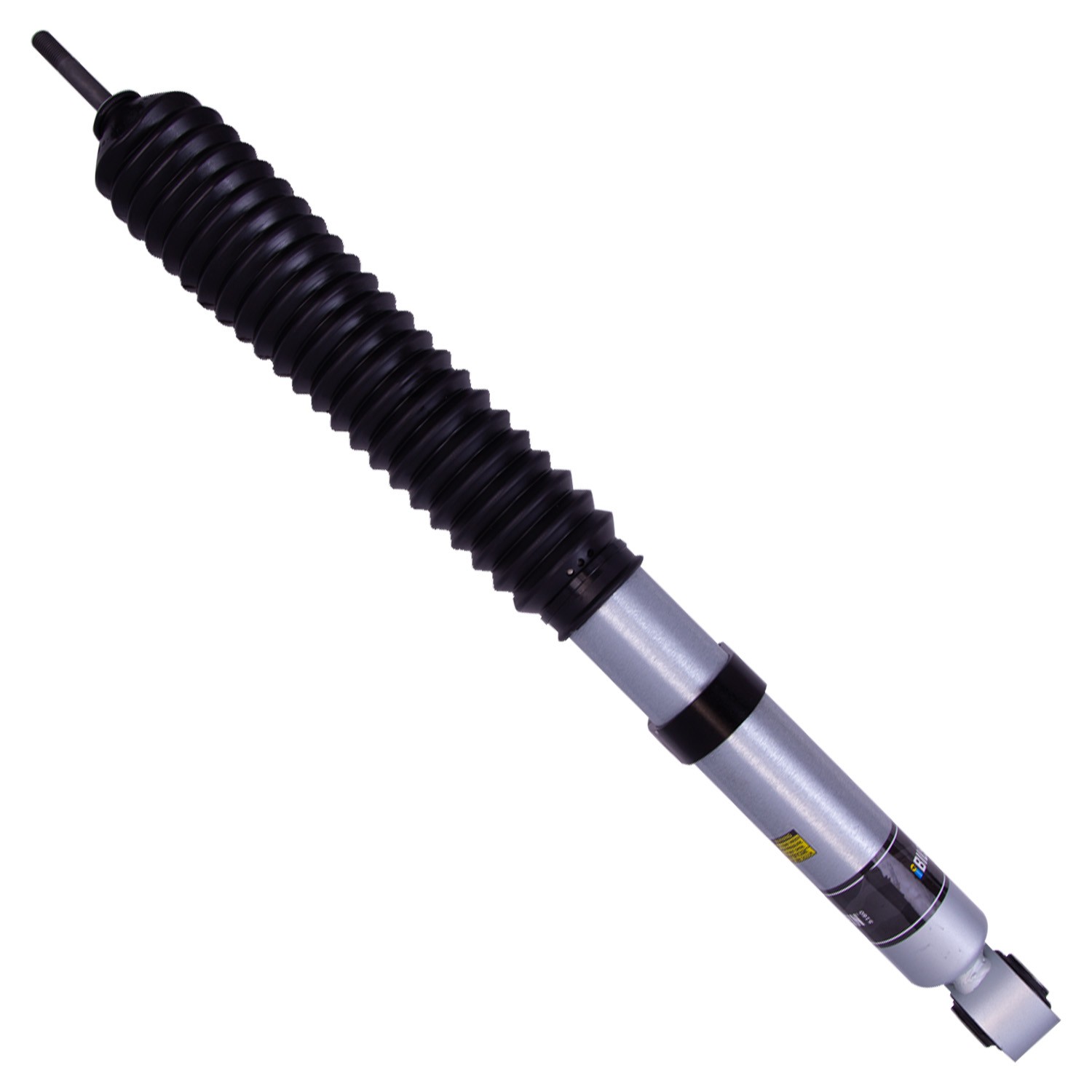

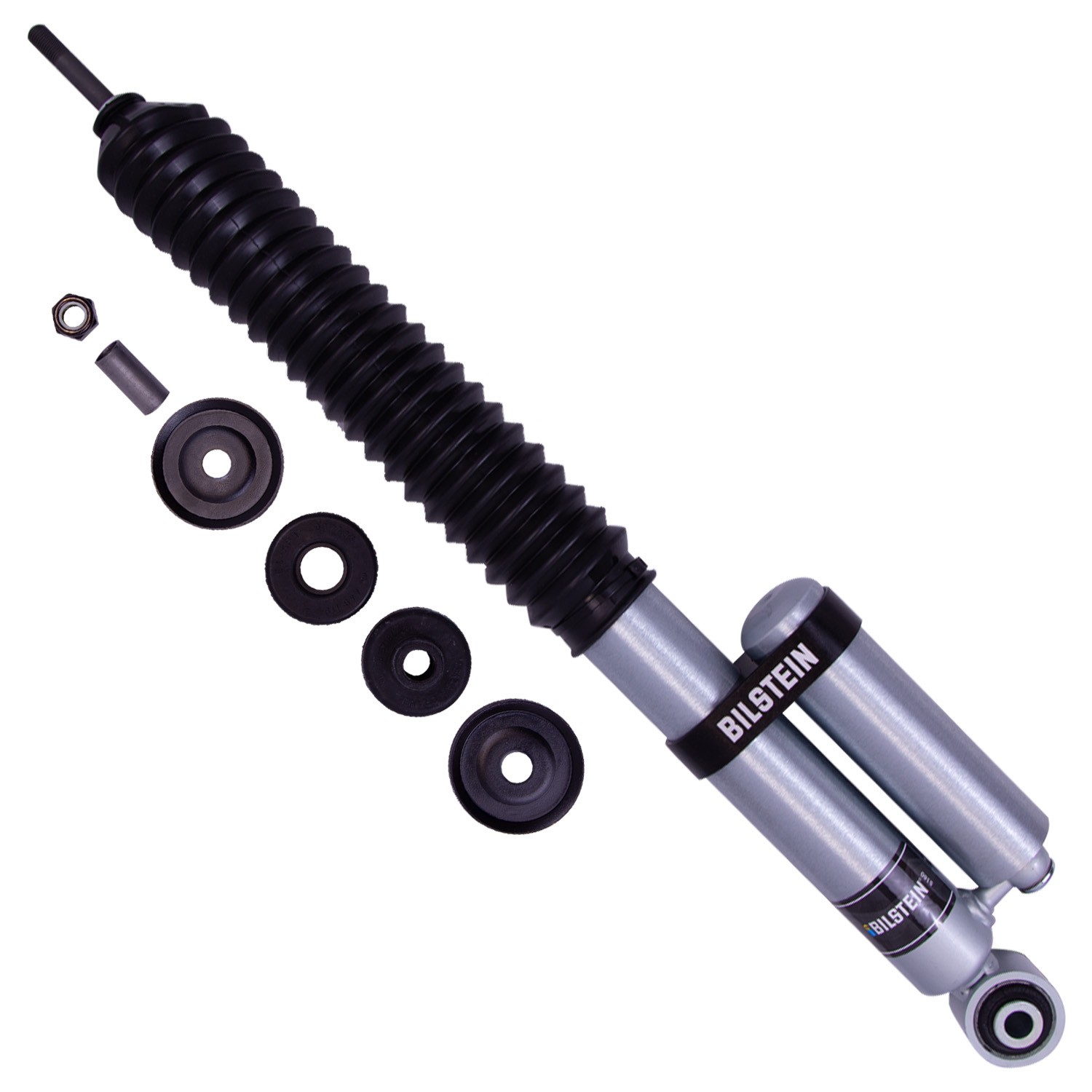

Bilstein 25-316919 B8 5160 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

  • Remote reservoir increases shock oil capacity for greater heat dissipation
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • 46mm monotube design ensures consistent, fade-free performance in all conditions



Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.



Attributes:

Internal Design Monotube
Extended Length (IN) 25.75
PartType Shocks / Struts
Finish Zinc Plated
Boot Included Black Bellows
Segment Light Truck
Body Design Smooth Body (Non-Coilover)
Extended Length (MM) 654.0
Upper Mount Type Stem
Stroke/Travel Length (mm) 255.5
Collapsed Length (IN) 15.69
Series B8 5160
Spring Seat Included No
Title Bilstein Shock Absorbers
Collapsed Length (MM) 398.5
Shaft Diameter 14mm
Lower Mount Type Eye 14.1mm
Billet Reservoir Clamp Included Yes
Piston Diameter 46mm
Adjustable Damping Non-Adjustable
Stroke/Travel Length (IN) 10.06
Reservoir Yes



Vehicle Applications:

Make Model Years
Ram 1500 2019 to 2024
Weight 3.76 kg
