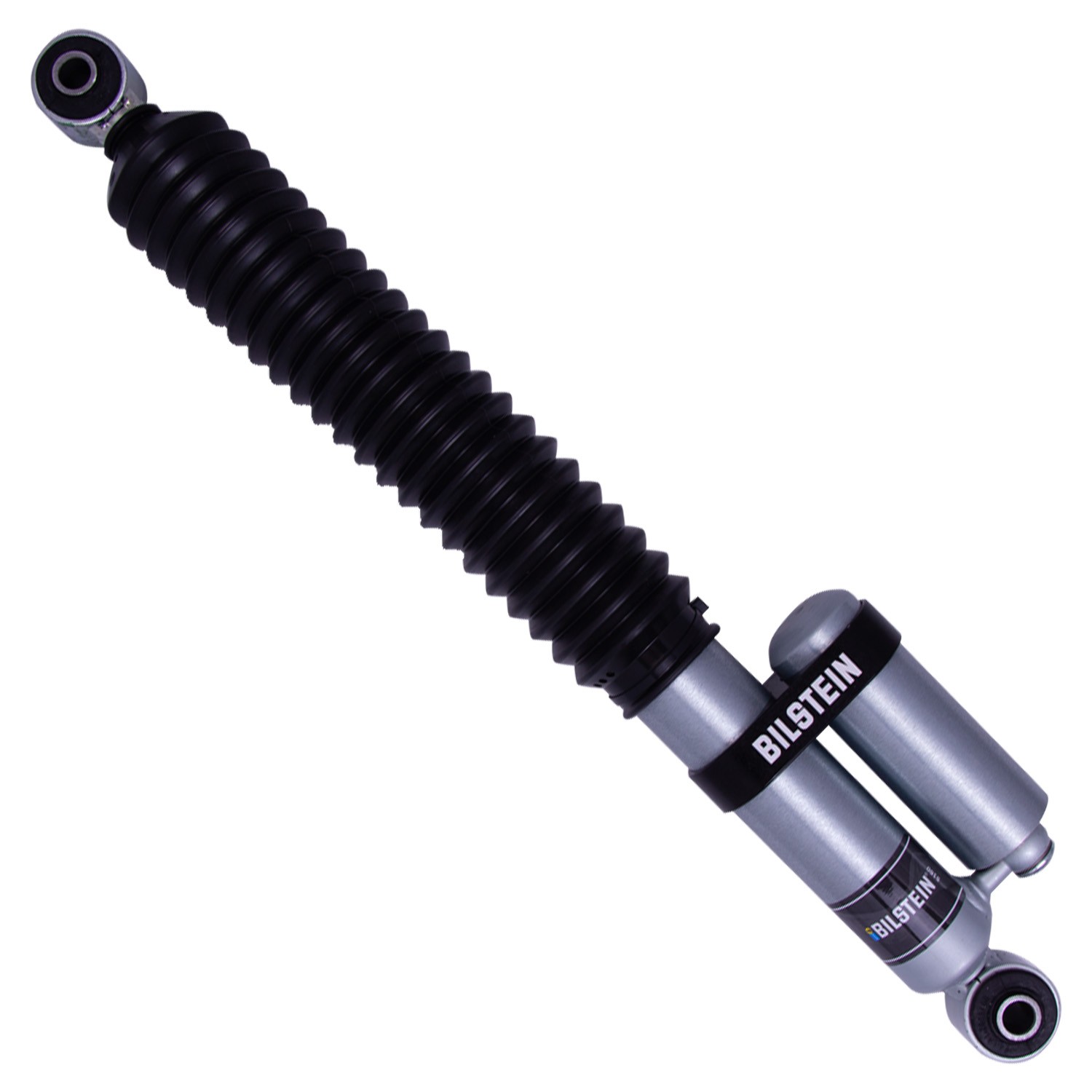

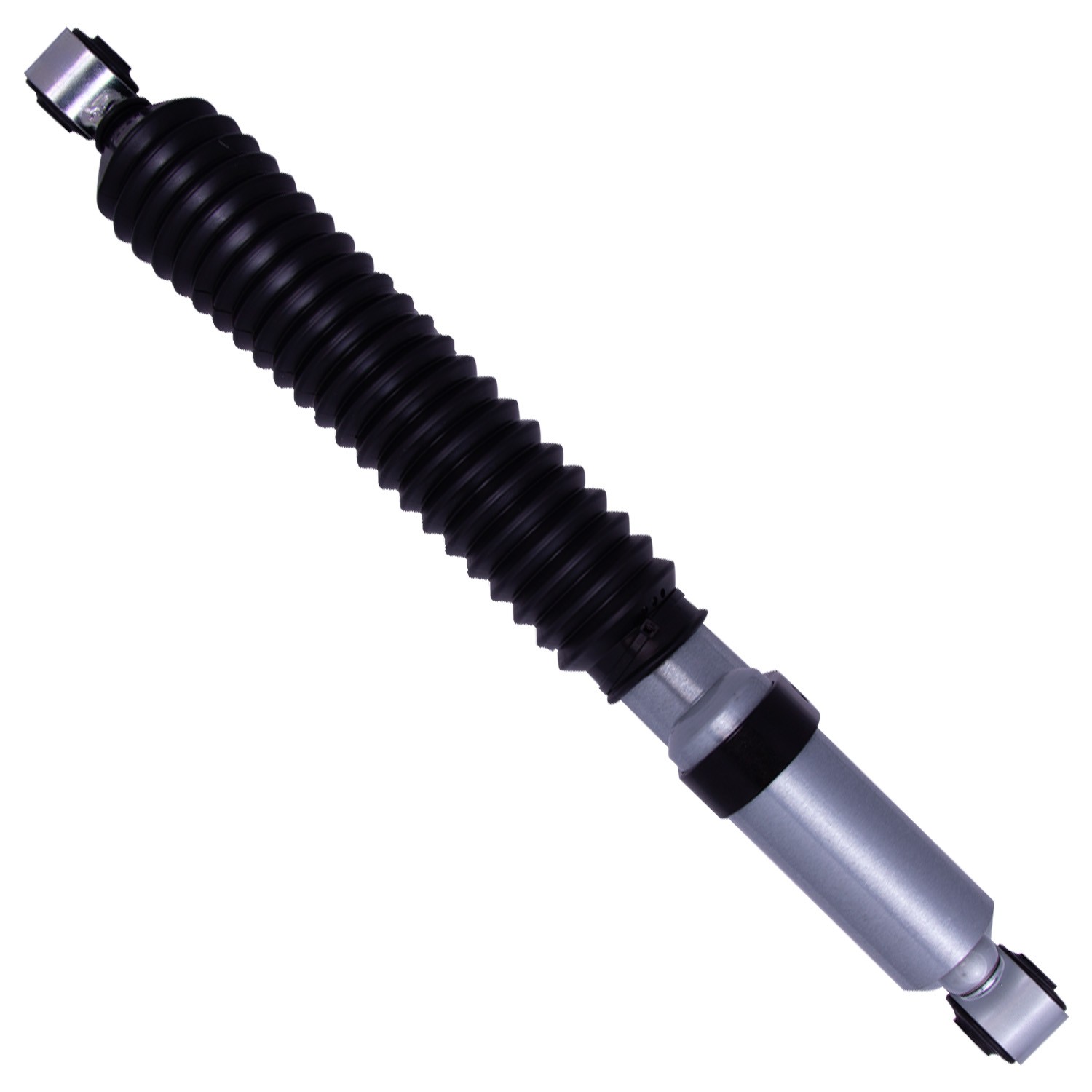

Bilstein 25-316926 B8 5160 – Suspension Shock Absorber Pack of 2

Bilstein 25-316926 B8 5160 – Suspension Shock Absorber Pack of 2

Bilstein 25-316926 B8 5160 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Remote reservoir increases shock oil capacity for greater heat dissipation
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control



Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.



Attributes:

Collapsed Length (IN) 14.80
Stroke/Travel Length (mm) 223.0
Piston Diameter 46mm
Lower Mount Type Eye 14.4mm
Internal Design Monotube
Body Design Smooth Body (Non-Coilover)
Collapsed Length (MM) 376.0
Title Bilstein Shock Absorbers
Reservoir Yes
Extended Length (MM) 599.0
Shaft Diameter 14mm
Boot Included Black Bellows
Finish Zinc Plated
PartType Shocks / Struts
Segment Light Truck
Series B8 5160
Extended Length (IN) 23.58
Billet Reservoir Clamp Included Yes
Spring Seat Included No
Stroke/Travel Length (IN) 8.78
Adjustable Damping Non-Adjustable
Upper Mount Type Eye 14.4mm



Vehicle Applications:

Make Model Years
Chevrolet Colorado 2015 to 2022
GMC Canyon 2015 to 2022
Weight 0.5 kg
