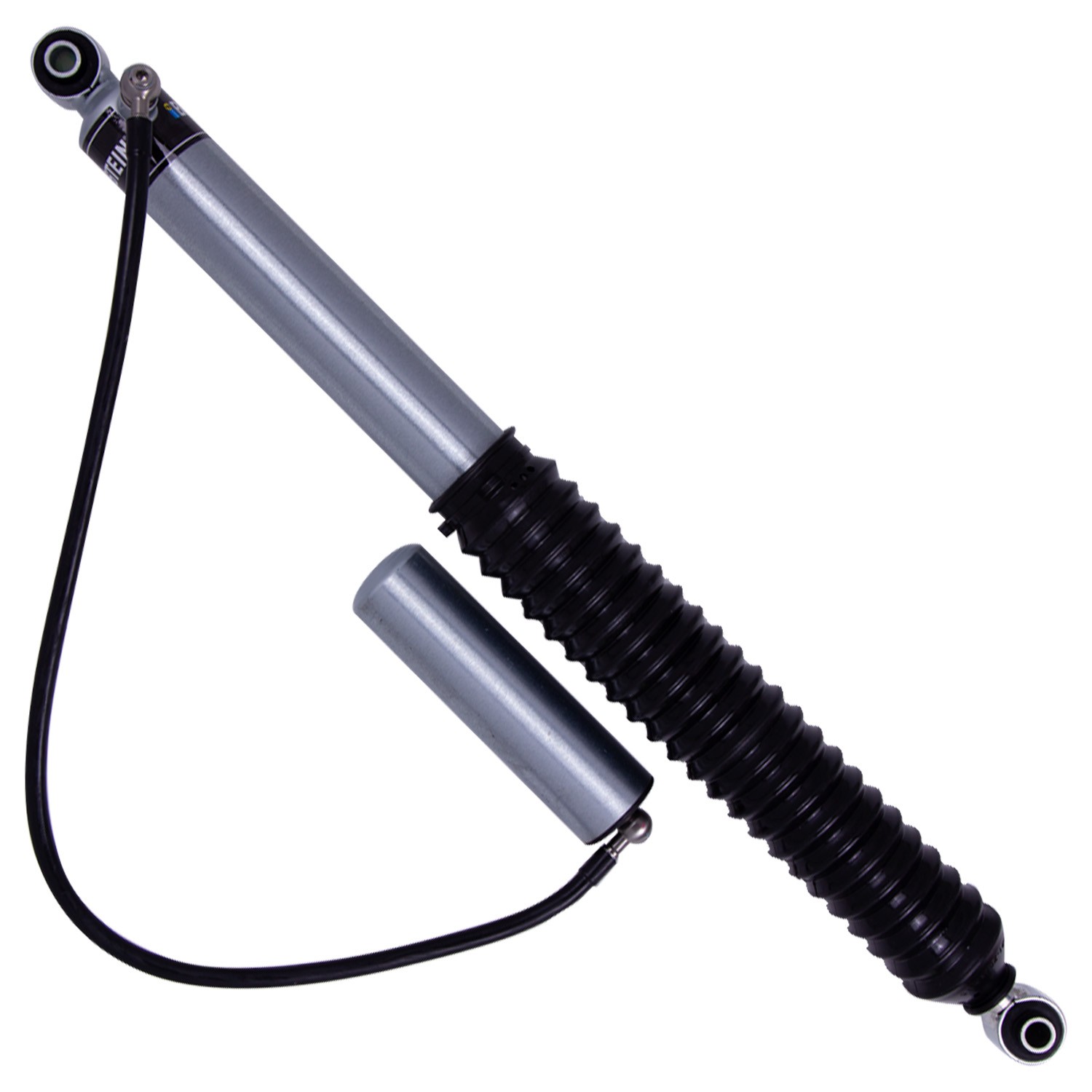

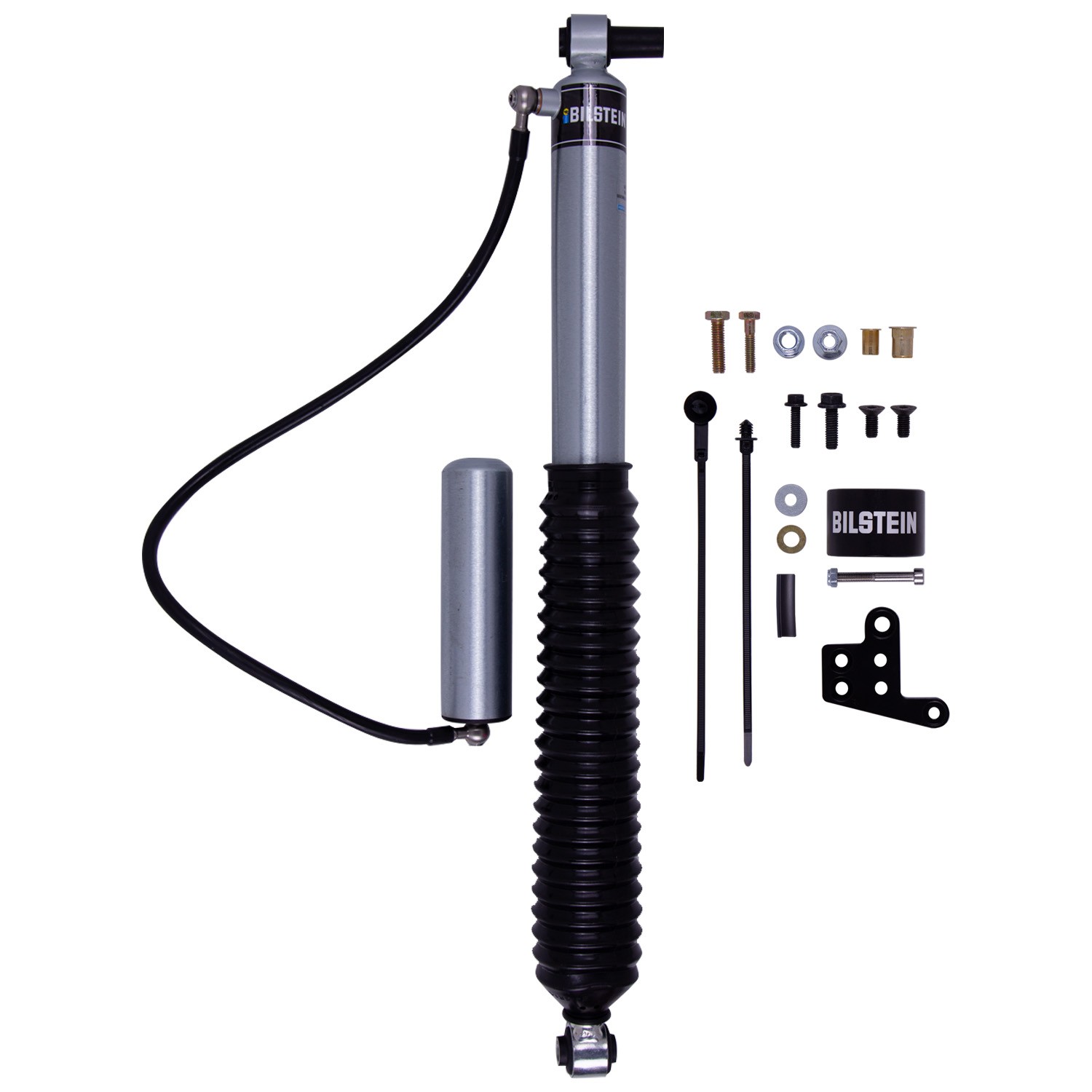

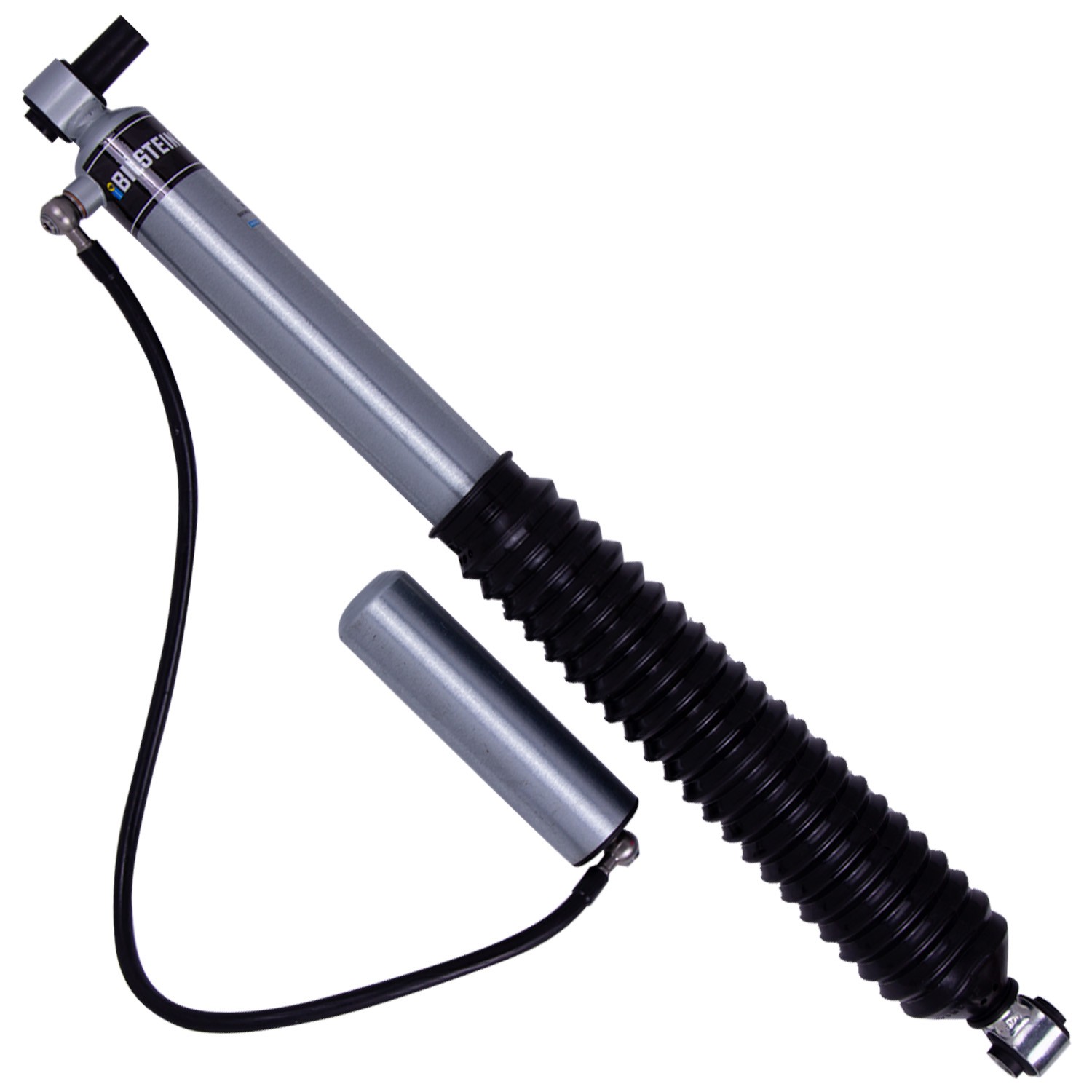

Bilstein 25-329933 B8 5160 – Suspension Shock Absorber
46mm Monotube Shock Absorber
Features:
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Remote reservoir increases shock oil capacity for greater heat dissipation
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Attributes:
| Lower Mount Type | Eye 12.8mm |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (MM) | 416.0 |
| Shaft Diameter | 14mm |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Finish | Zinc Plated |
| Spring Seat Included | No |
| PartType | Shocks / Struts |
| Extended Length (IN) | 26.88 |
| Series | B8 5160 |
| Segment | Light Truck |
| Internal Design | Monotube |
| Billet Reservoir Clamp Included | Yes |
| Extended Length (MM) | 682.7 |
| Piston Diameter | 46mm |
| Upper Mount Type | Eye 12.8mm |
| Adjustable Damping | Non-Adjustable |
| Stroke/Travel Length (mm) | 266.7 |
| Stroke/Travel Length (IN) | 10.50 |
| Collapsed Length (IN) | 16.38 |
| Reservoir | Yes |
Vehicle Applications:
| Make | Model | Years |
| Jeep | Gladiator | 2020 to 2025 |
