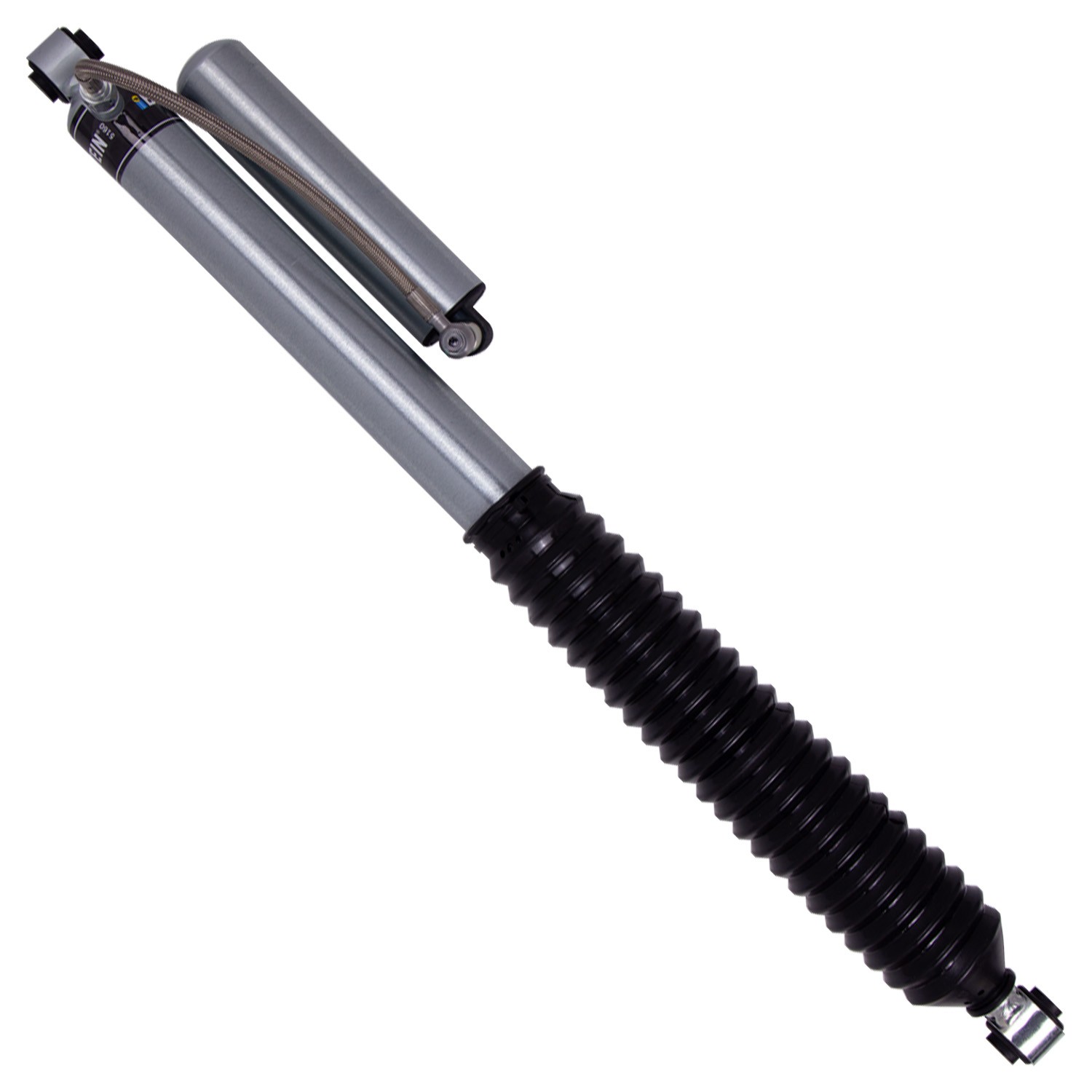

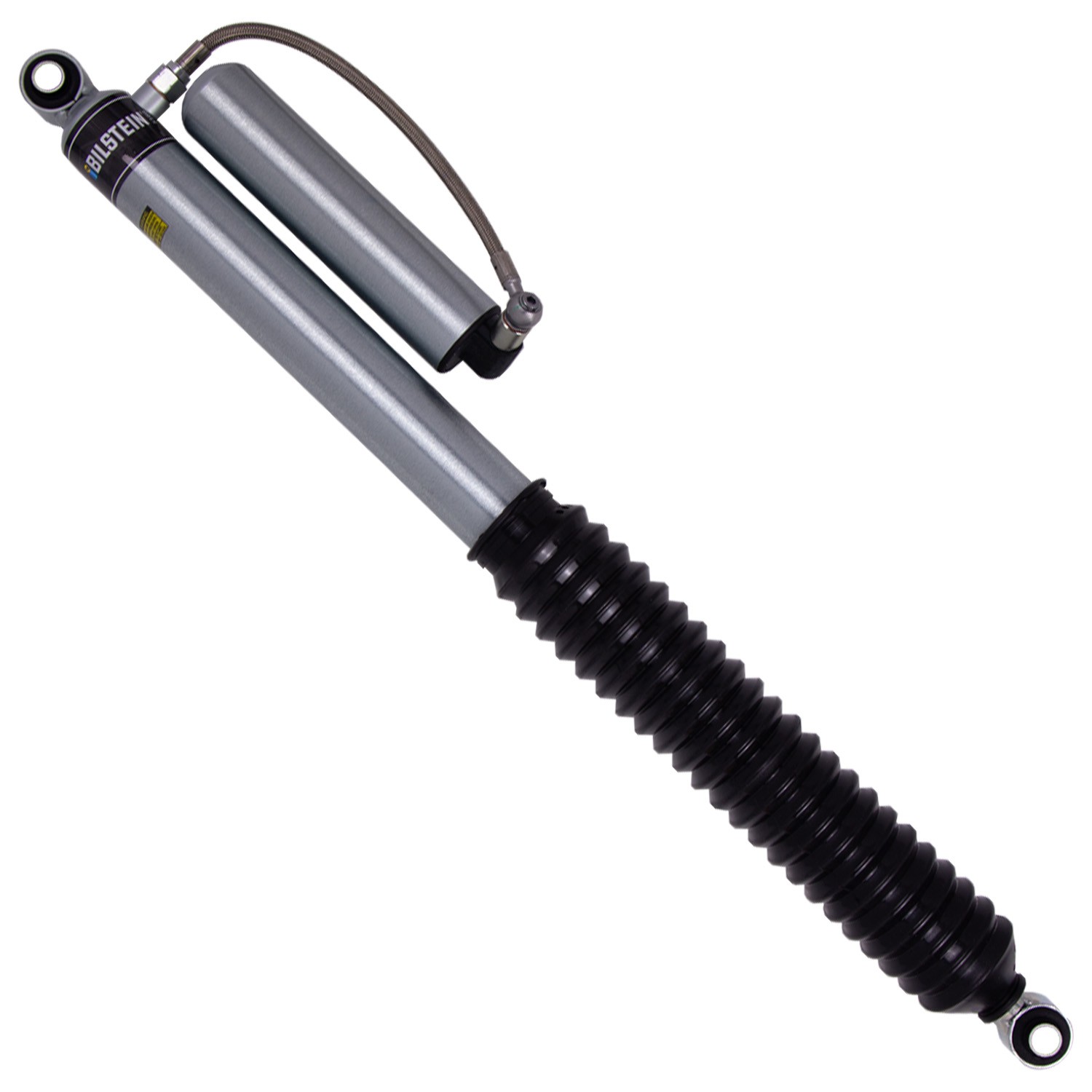

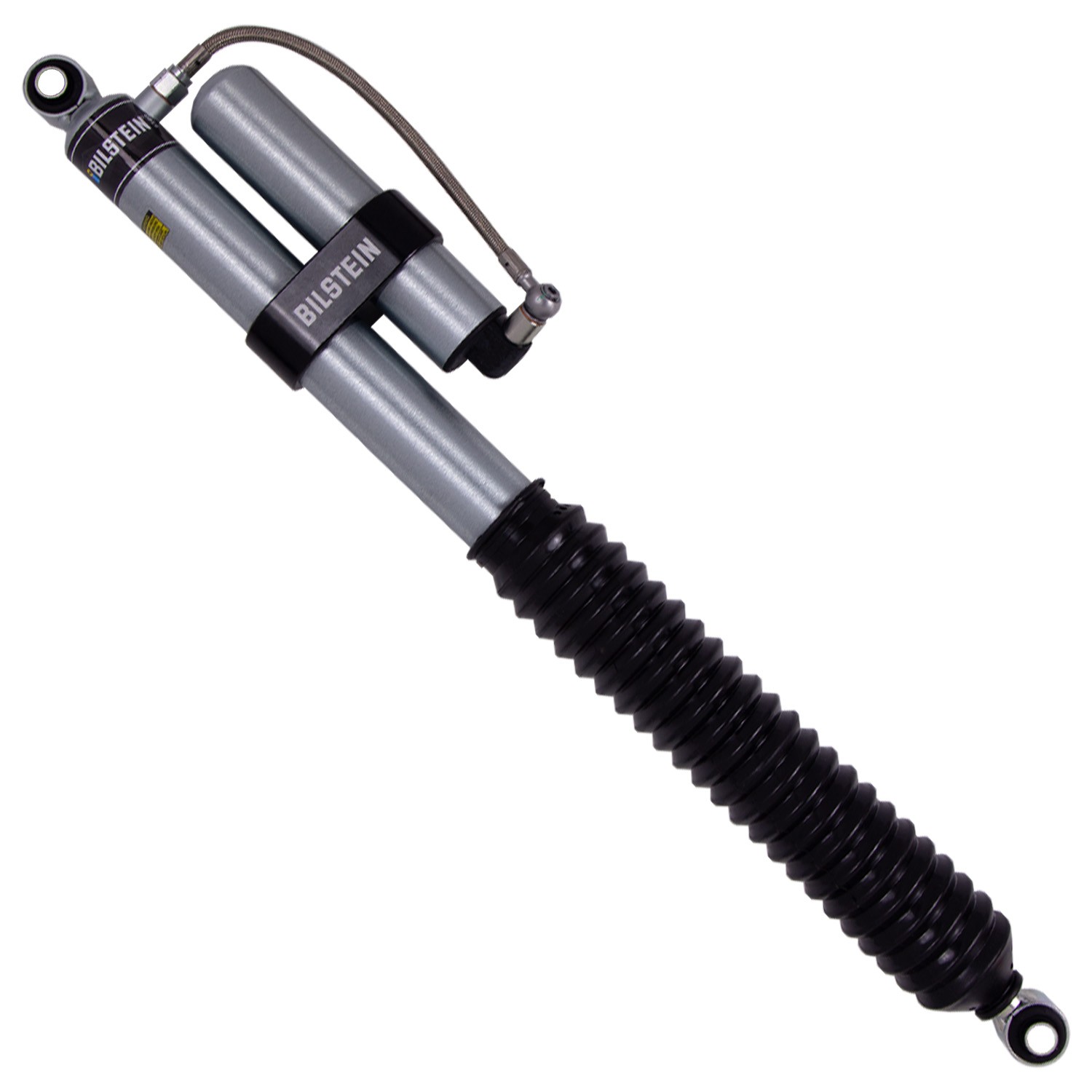

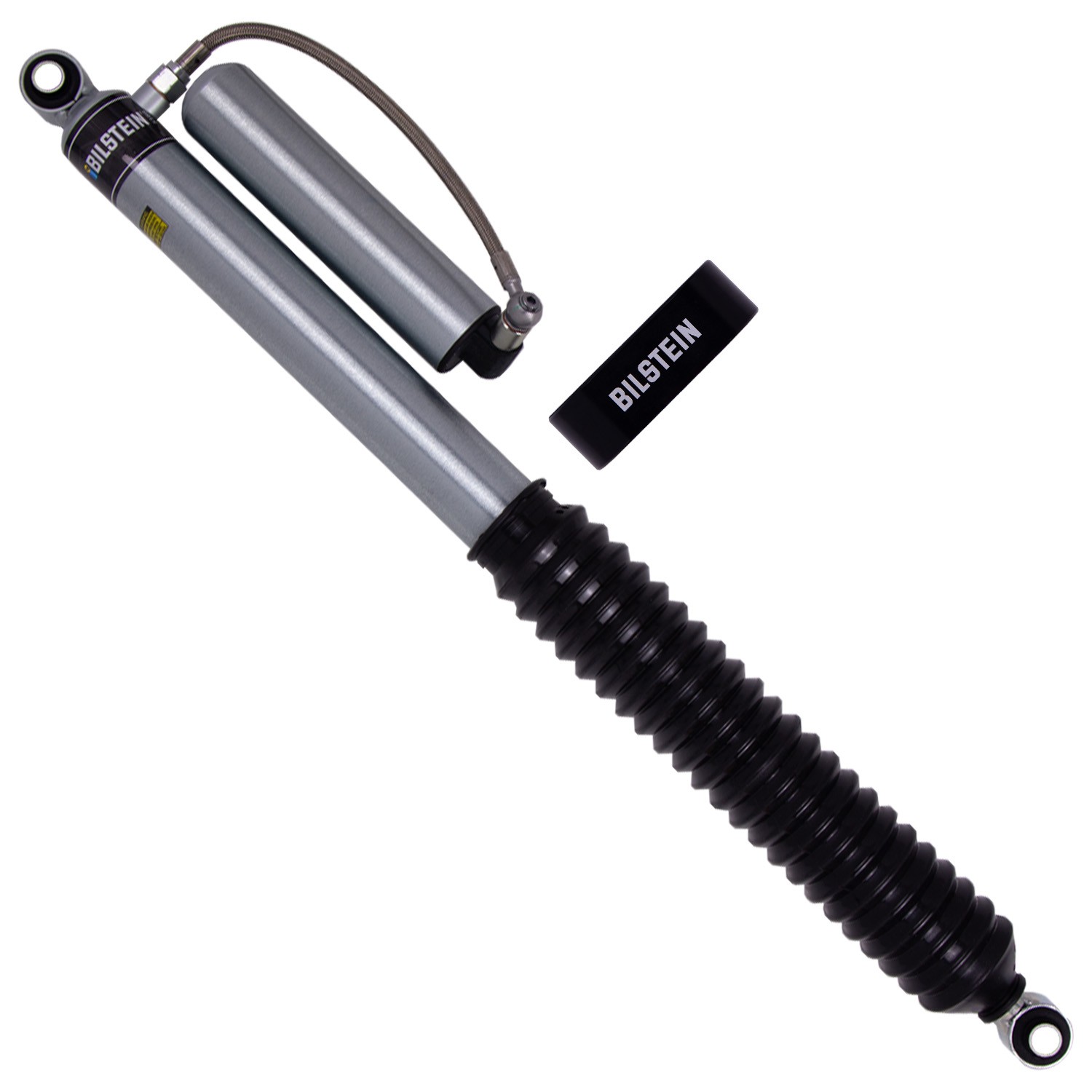

Bilstein 25-329988 B8 5160 – Suspension Shock Absorber Pack of 2

Bilstein 25-329988 B8 5160 – Suspension Shock Absorber Pack of 2

Bilstein 25-329988 B8 5160 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

  • Remote reservoir increases shock oil capacity for greater heat dissipation
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • 46mm monotube design ensures consistent, fade-free performance in all conditions



Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.



Attributes:

Title Bilstein Shock Absorbers
Stroke/Travel Length (IN) 12.19
Stroke/Travel Length (mm) 309.6
Upper Mount Type Eye 14.1mm
Extended Length (MM) 746.2
Collapsed Length (MM) 436.5
Reservoir Yes
Spring Seat Included No
Series B8 5160

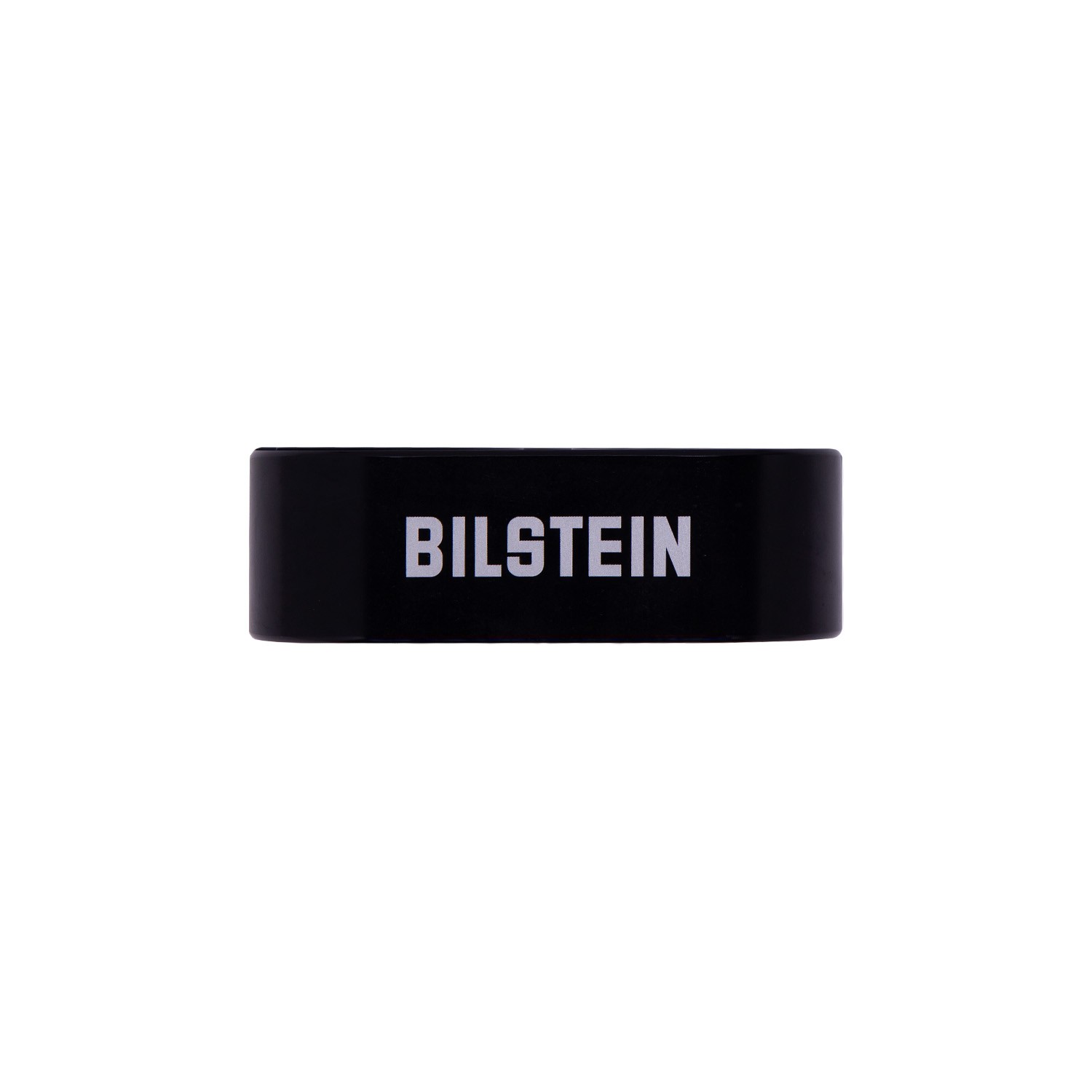

Billet Reservoir Clamp Included Yes
Internal Design Monotube
Shaft Diameter 14mm
Collapsed Length (IN) 17.19
Adjustable Damping Non-Adjustable
Piston Diameter 46mm
Lower Mount Type Eye 14.1mm
Body Design Smooth Body (Non-Coilover)
Segment Light Truck
Boot Included Black Bellows
Finish Zinc Plated
PartType Shocks / Struts
Extended Length (IN) 29.38



Vehicle Applications:

Make Model Years
Jeep Gladiator 2020 to 2024
Weight 0.5 kg
