Bilstein 33-186542 B8 5125 - Suspension Shock Absorber Pack of 2

Bilstein 33-186542 B8 5125 – Suspension Shock Absorber Pack of 2

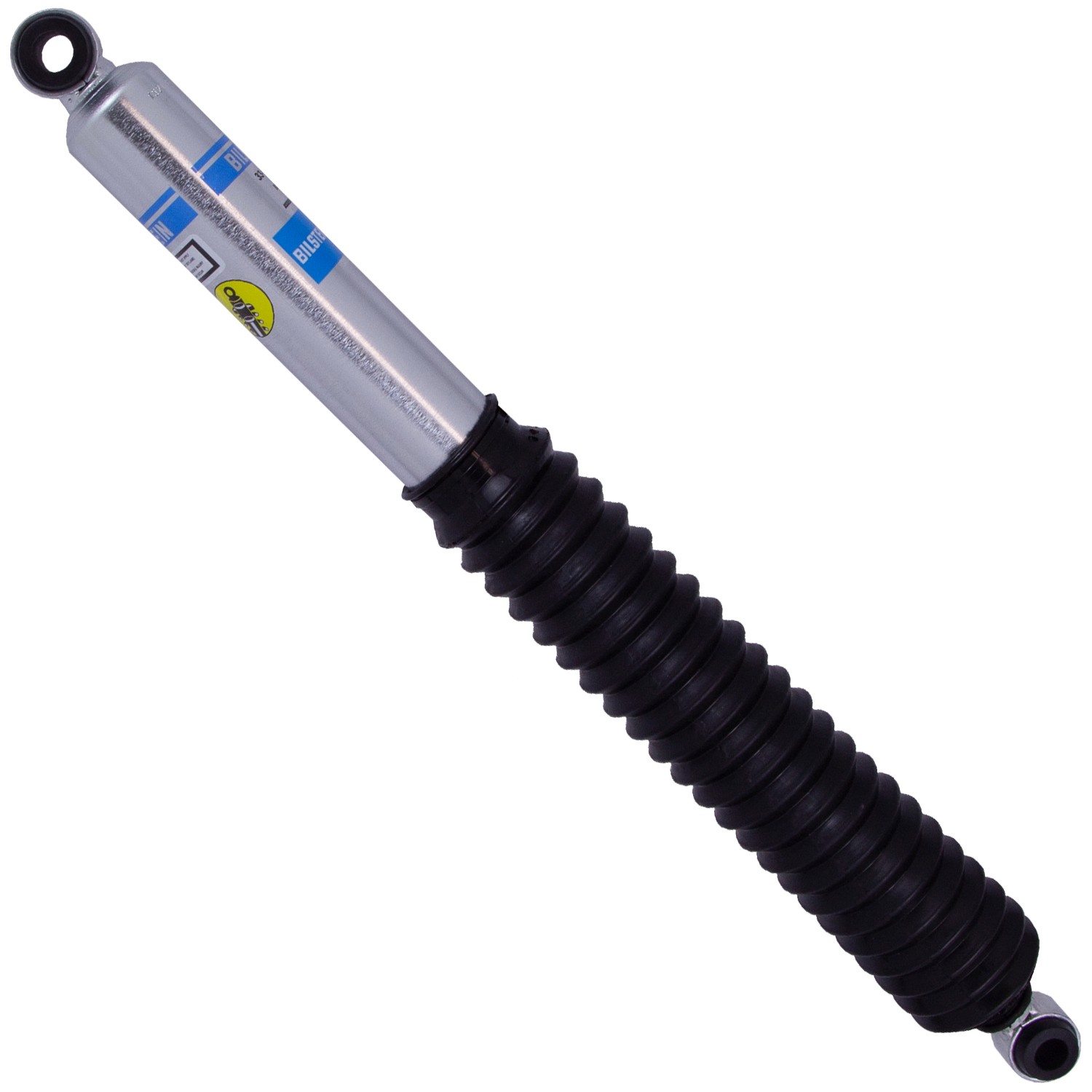

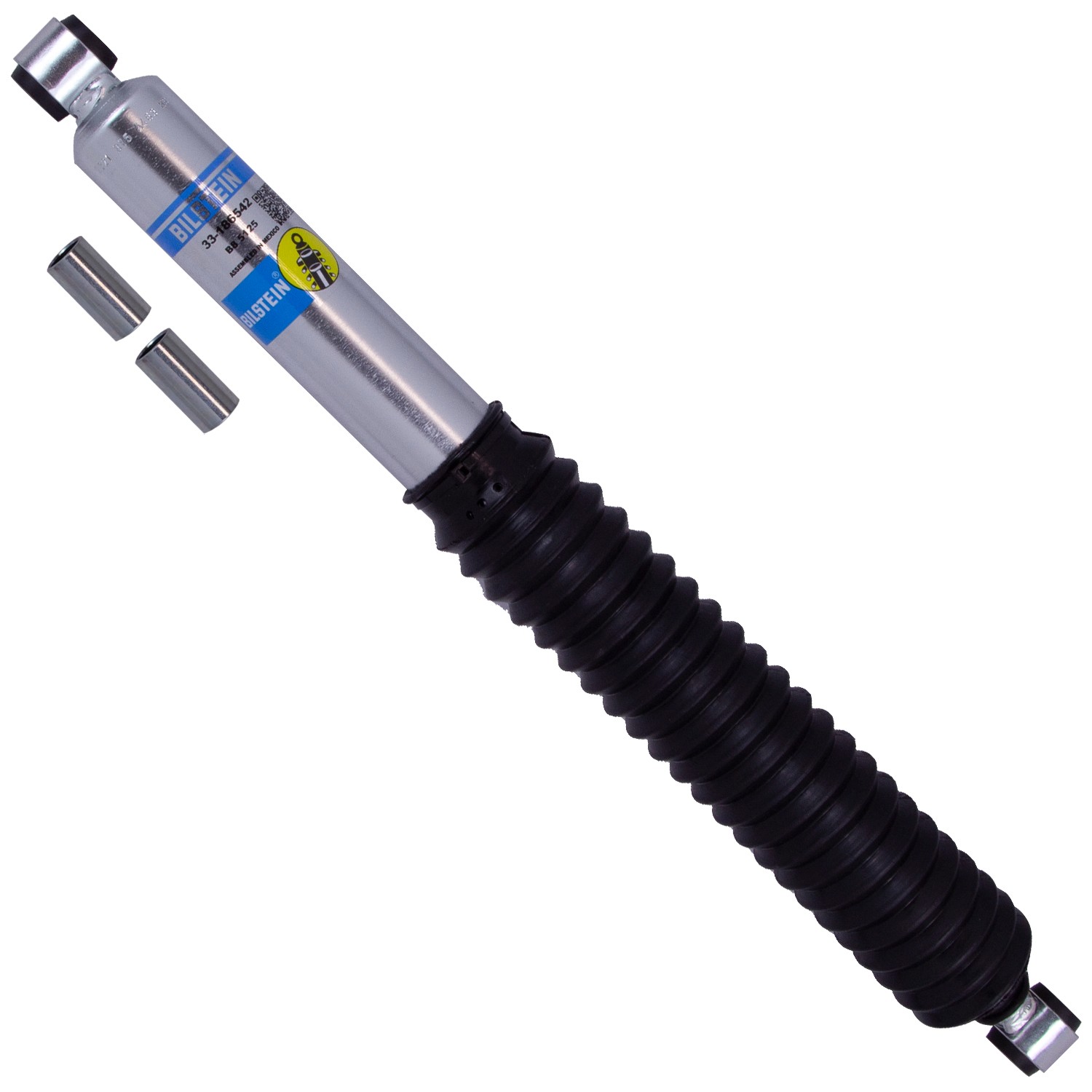

Bilstein 33-186542 B8 5125 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Vehicle specific tuning
46mm monotube design ensures consistent, fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions

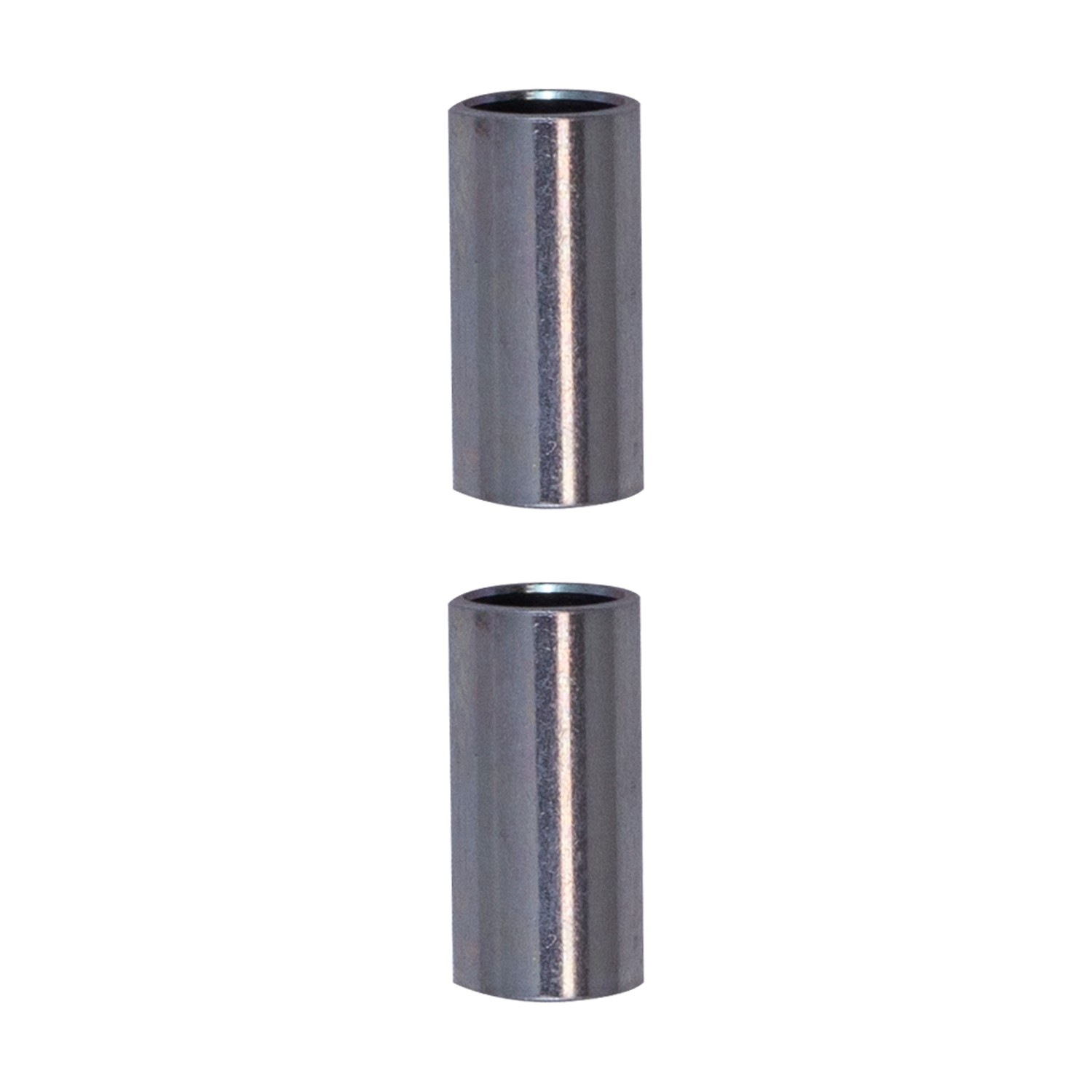

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Attributes:

Lower Mount Type	Eye 5/8in
Adjustable Damping	Non-Adjustable
PartType	Shocks / Struts
Spring Seat Included	No
Compression @0.52m/s	620
Finish	Zinc Plated
Boot Included	Black Bellows
Title	Bilstein Shock Absorbers
Mount Type	Eye-to-Eye
Collapsed Length (MM)	384.0
Shaft Diameter	14mm
Segment	Light Truck
Body Design	Smooth Body (Non-Coilover)
Stroke/Travel Length (mm)	234.2
Stroke/Travel Length (IN)	9.22
Collapsed Length (IN)	15.12
Reservoir	No
Series	B8 5125
Rebound @0.52m/s	2495
Extended Length (IN)	24.34
Upper Mount Type	Eye 5/8in
Piston Diameter	46mm
Extended Length (MM)	618.2
Internal Design	Monotube

Vehicle Applications:

Make	Model	Years
Ford	Bronco	1966 to 1977
Jeep	CJ5	1959 to 1983
Jeep	CJ5A	1966 to 1968
Jeep	CJ7	1976 to 1986
Jeep	Cherokee	1981 to 1983
Jeep	Grand Wagoneer	1984 to 1991
Jeep	J10	1981 to 1988
Jeep	J20	1981 to 1988
Toyota	Pickup	1979 to 1983
