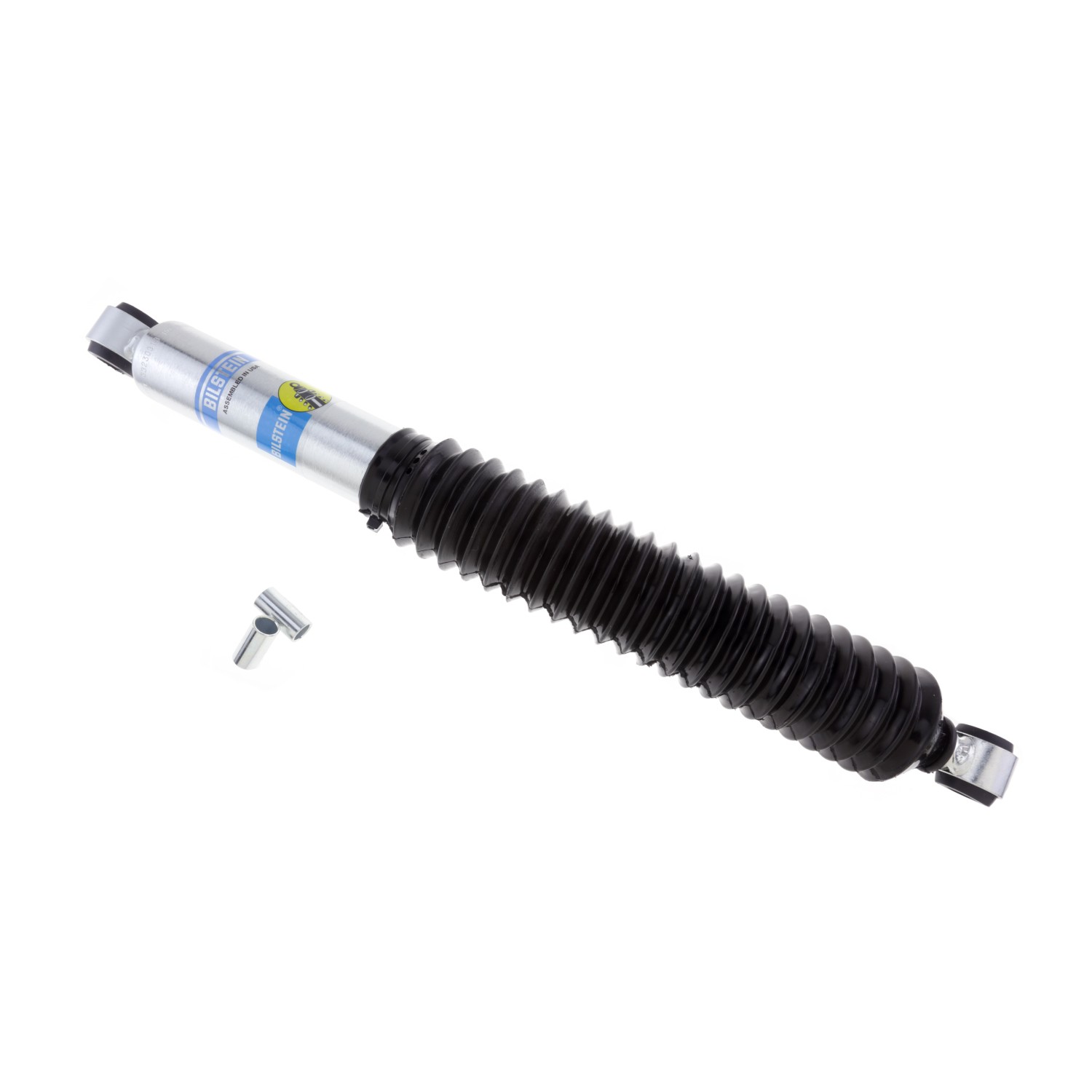

Bilstein 33-230313 B8 5125 - Suspension Shock Absorber Pack of 2

Bilstein 33-230313 B8 5125 – Suspension Shock Absorber Pack of 2

Bilstein 33-230313 B8 5125 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Attributes:

Mount Type	Eye-to-Eye
Stroke/Travel Length (mm)	204.2
Collapsed Length (IN)	13.66
Rebound @0.52m/s	1810
Spring Seat Included	No
Compression @0.52m/s	595
Title	Bilstein Shock Absorbers
Collapsed Length (MM)	347.0
Segment	Light Truck
Body Design	Smooth Body (Non-Coilover)
Internal Design	Monotube
Piston Diameter	46mm
Adjustable Damping	Non-Adjustable
Stroke/Travel Length (IN)	8.04
Reservoir	No
Series	B8 5125
Extended Length (IN)	21.70
PartType	Shocks / Struts
Finish	Zinc Plated
Boot Included	Black Bellows
Shaft Diameter	14mm
Lower Mount Type	Eye 5/8in
Extended Length (MM)	551.2
Upper Mount Type	Eye 5/8in
