Bilstein 33-230443 B8 5125 – Suspension Shock Absorber Pack of 2

Bilstein 33-230443 B8 5125 – Suspension Shock Absorber Pack of 2

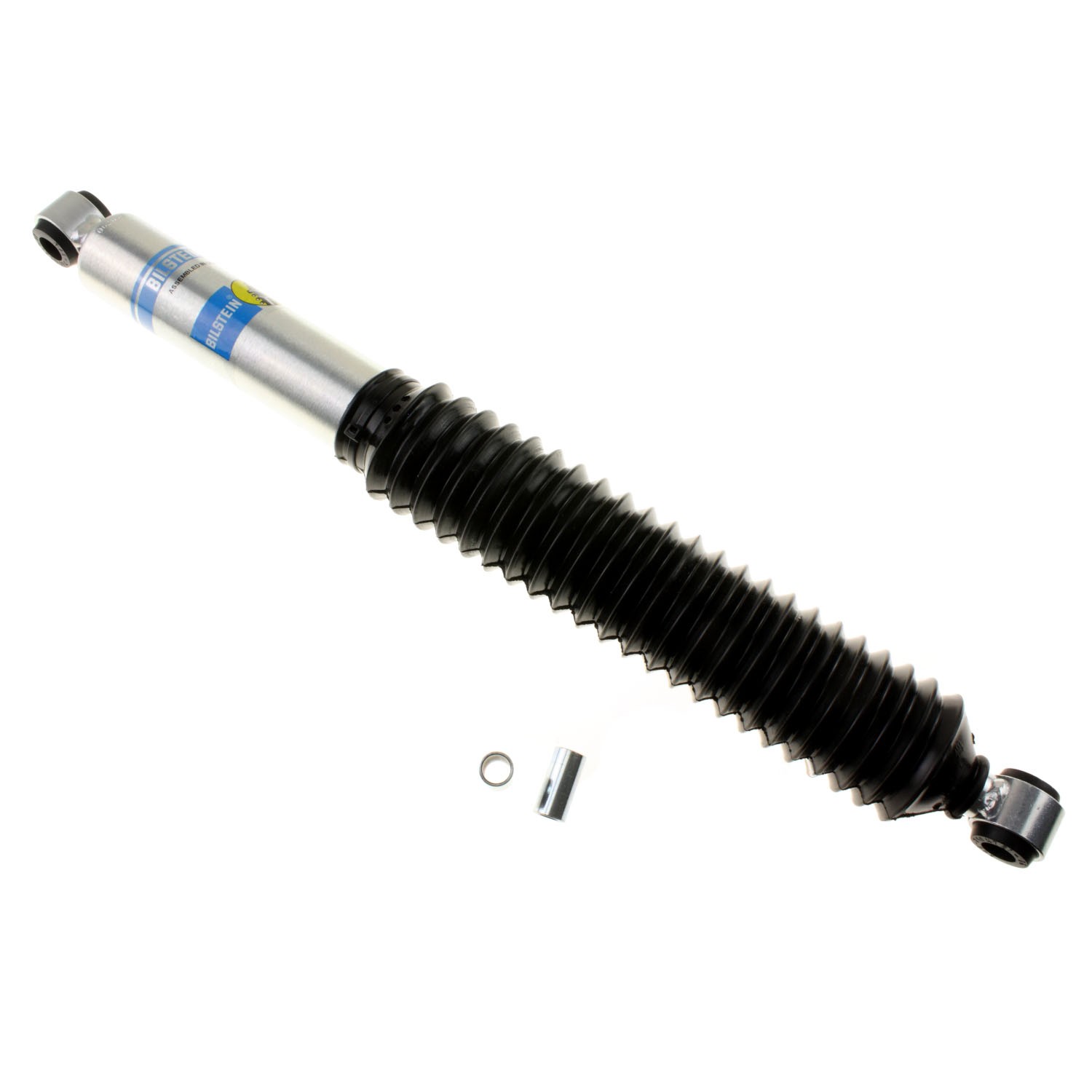

Bilstein 33-230443 B8 5125 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
  • 46mm monotube design ensures consistent, fade-free performance in all conditions

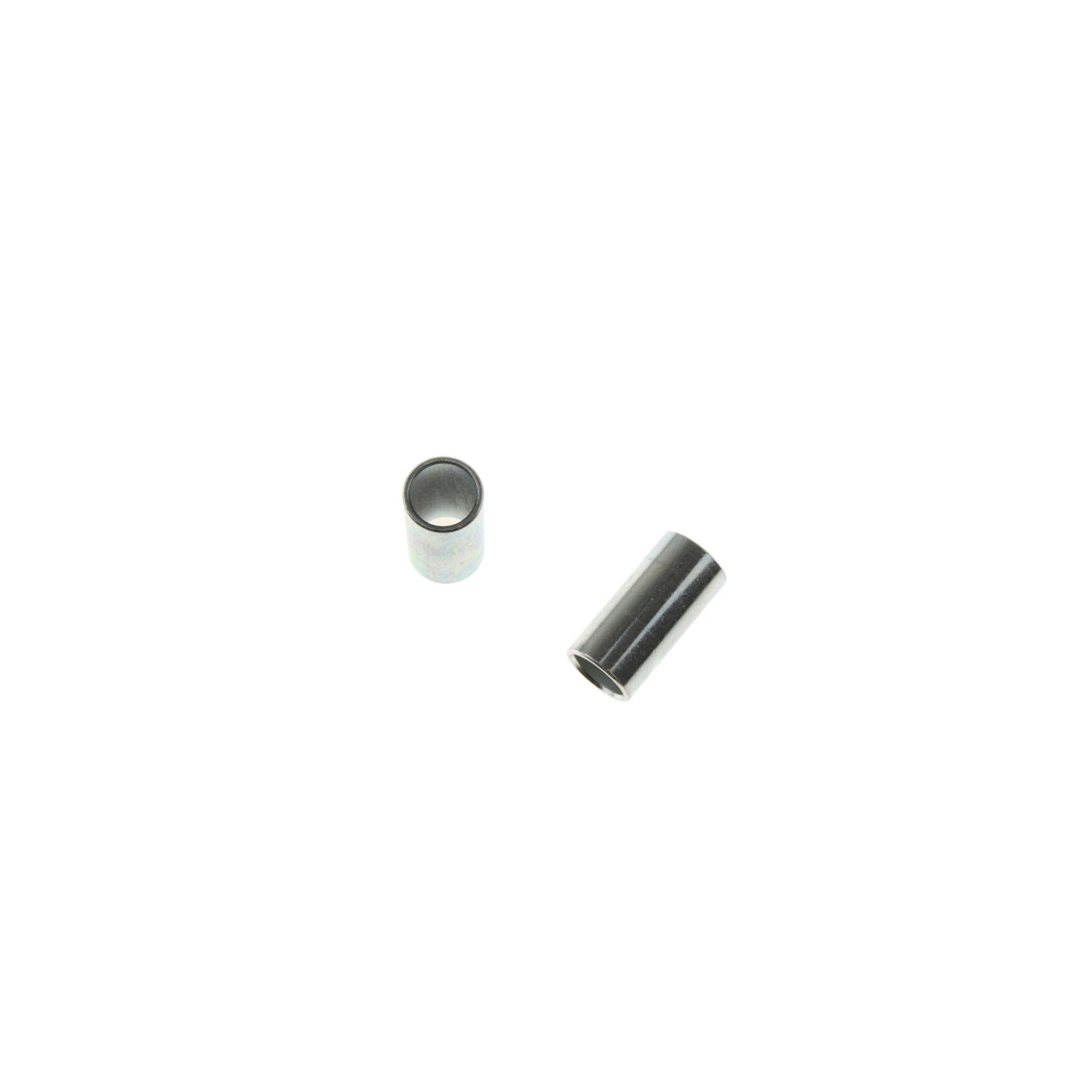

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.



Attributes:

Lower Mount Type Eye 5/8in
Stroke/Travel Length (IN) 8.43
Reservoir No
Piston Diameter 46mm
Internal Design Monotube
Body Design Smooth Body (Non-Coilover)
Shaft Diameter 14mm
Mount Type Eye-to-Eye
Series B8 5125
Finish Zinc Plated
Spring Seat Included No
PartType Shocks / Struts
Adjustable Damping Non-Adjustable
Segment Light Truck
Collapsed Length (MM) 359.0
Title Bilstein Shock Absorbers
Boot Included Black Bellows
Rebound @0.52m/s 1810
Extended Length (IN) 22.57
Compression @0.52m/s 595
Collapsed Length (IN) 14.13
Stroke/Travel Length (mm) 214.1
Upper Mount Type Eye 5/8in
Extended Length (MM) 573.2
Weight 0.5 kg
