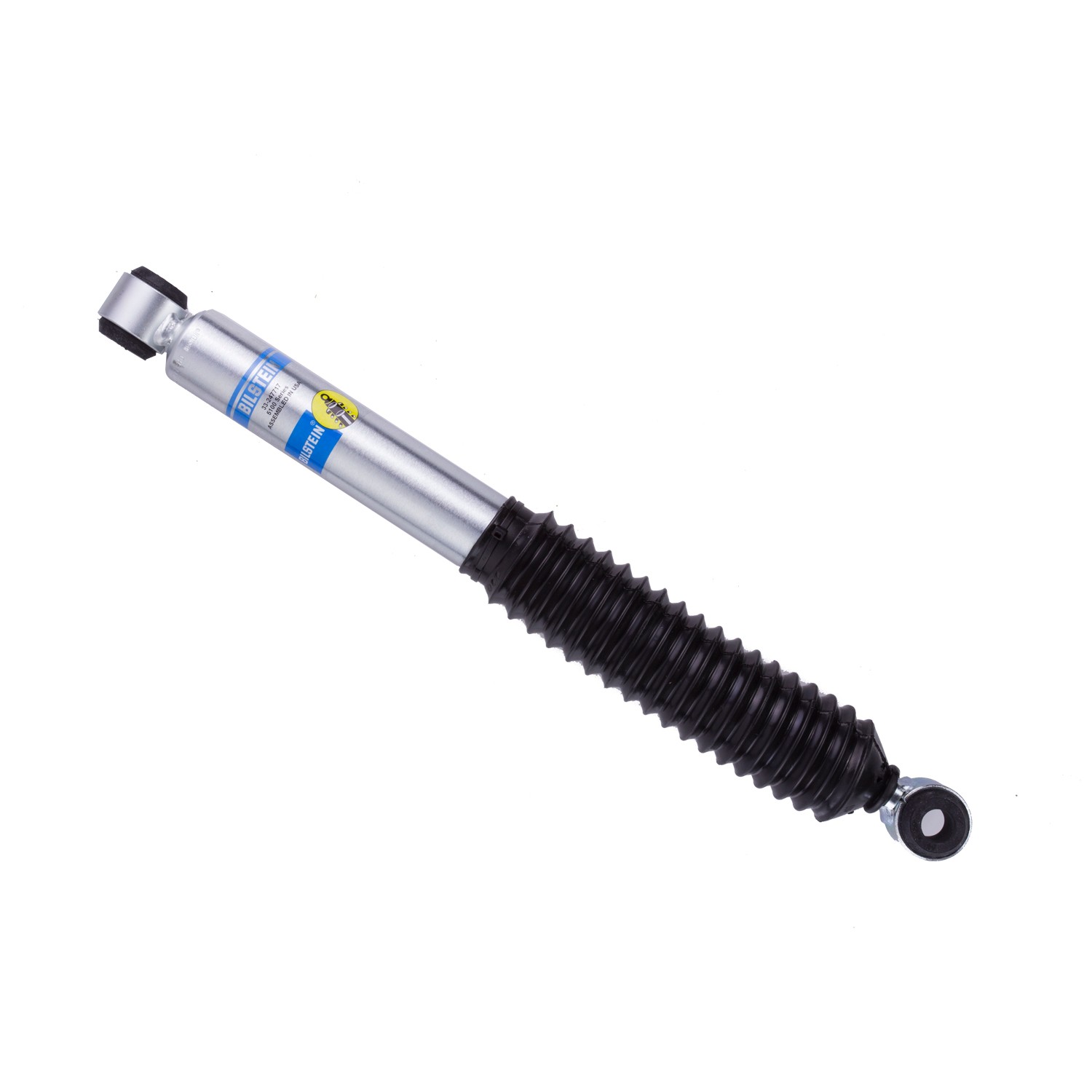

Bilstein 33-247717 B8 5100 - Suspension Shock Absorber

Bilstein 33-247717 B8 5100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Vehicle specific tuning
Patented digressive valving instantly reacts to changing surface conditions
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

Finish	Zinc Plated
Boot Included	Black Bellows
Title	Bilstein Shock Absorbers
Collapsed Length (MM)	357.5
Segment	Light Truck
Shaft Diameter	14mm
Body Design	Smooth Body (Non-Coilover)
Lower Mount Type	Eye 19mm
Internal Design	Monotube
Extended Length (MM)	561.0
Piston Diameter	46mm
Adjustable Damping	Non-Adjustable
Stroke/Travel Length (IN)	8.02
Reservoir	No
Series	B8 5100
Upper Mount Type	Eye 19mm
Stroke/Travel Length (mm)	203.7
Collapsed Length (IN)	14.07
Extended Length (IN)	22.09
PartType	Shocks / Struts
Spring Seat Included	No
