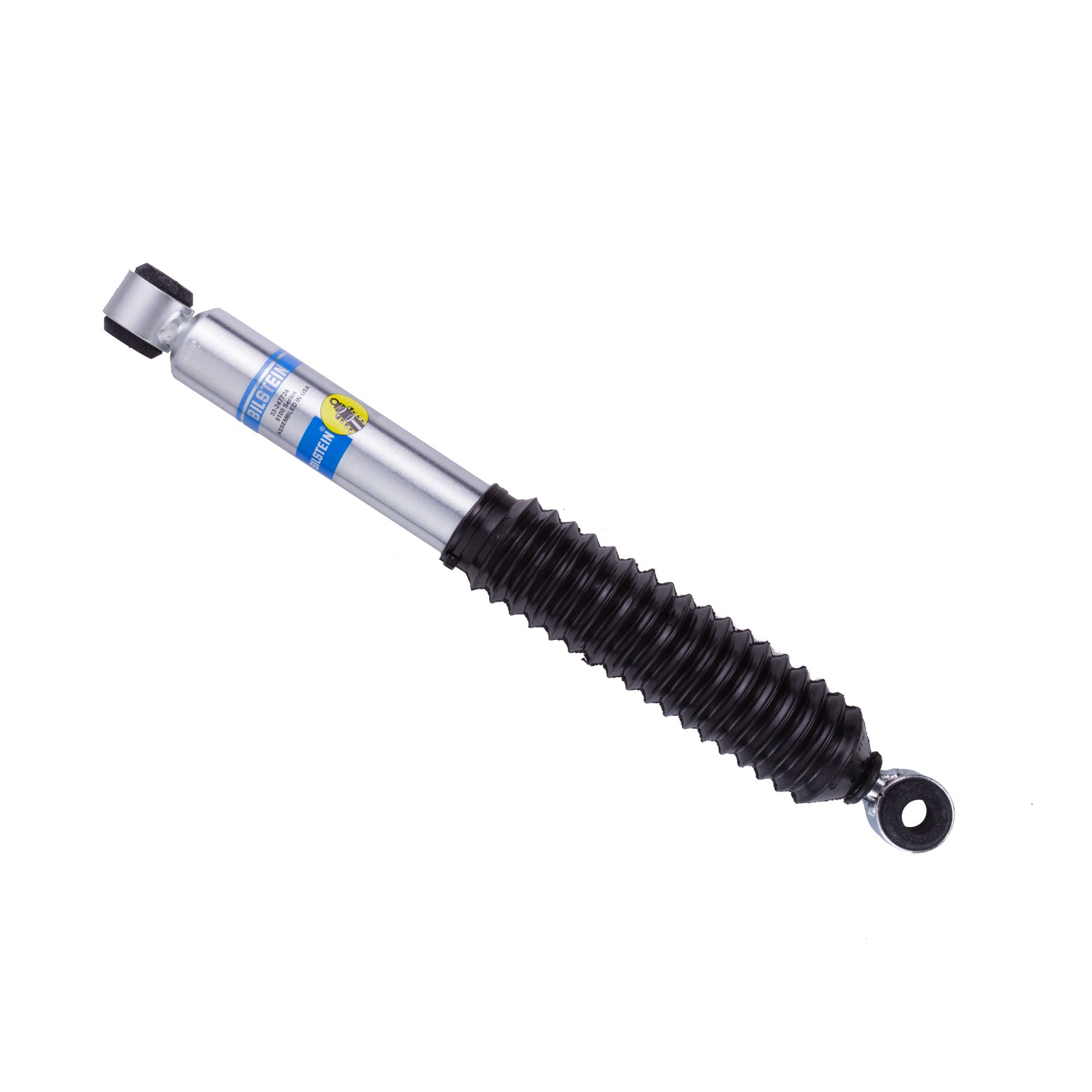

Bilstein 33-247724 B8 5100 - Suspension Shock Absorber

Bilstein 33-247724 B8 5100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

Vehicle specific tuning
Patented digressive valving instantly reacts to changing surface conditions
46mm monotube design ensures consistent, fade-free performance in all conditions

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

Extended Length (MM)	537.0
Series	B8 5100
Reservoir	No
Collapsed Length (IN)	13.62
Stroke/Travel Length (IN)	7.64
Stroke/Travel Length (mm)	194.1
Adjustable Damping	Non-Adjustable
Upper Mount Type	Eye 19mm
Piston Diameter	46mm
Internal Design	Monotube
Lower Mount Type	Eye 19mm
Body Design	Smooth Body (Non-Coilover)
Segment	Light Truck
Shaft Diameter	14mm
Collapsed Length (MM)	346.0
Title	Bilstein Shock Absorbers
Boot Included	Black Bellows
Finish	Zinc Plated
Spring Seat Included	No
Extended Length (IN)	21.14
PartType	Shocks / Struts
