Bilstein 47-311039 B8 6112 – Suspension Kit
Front Suspension Kit
Features:
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- Vehicle specific tuning
- 60mm digressive piston improves ride comfort and control over rough terrain

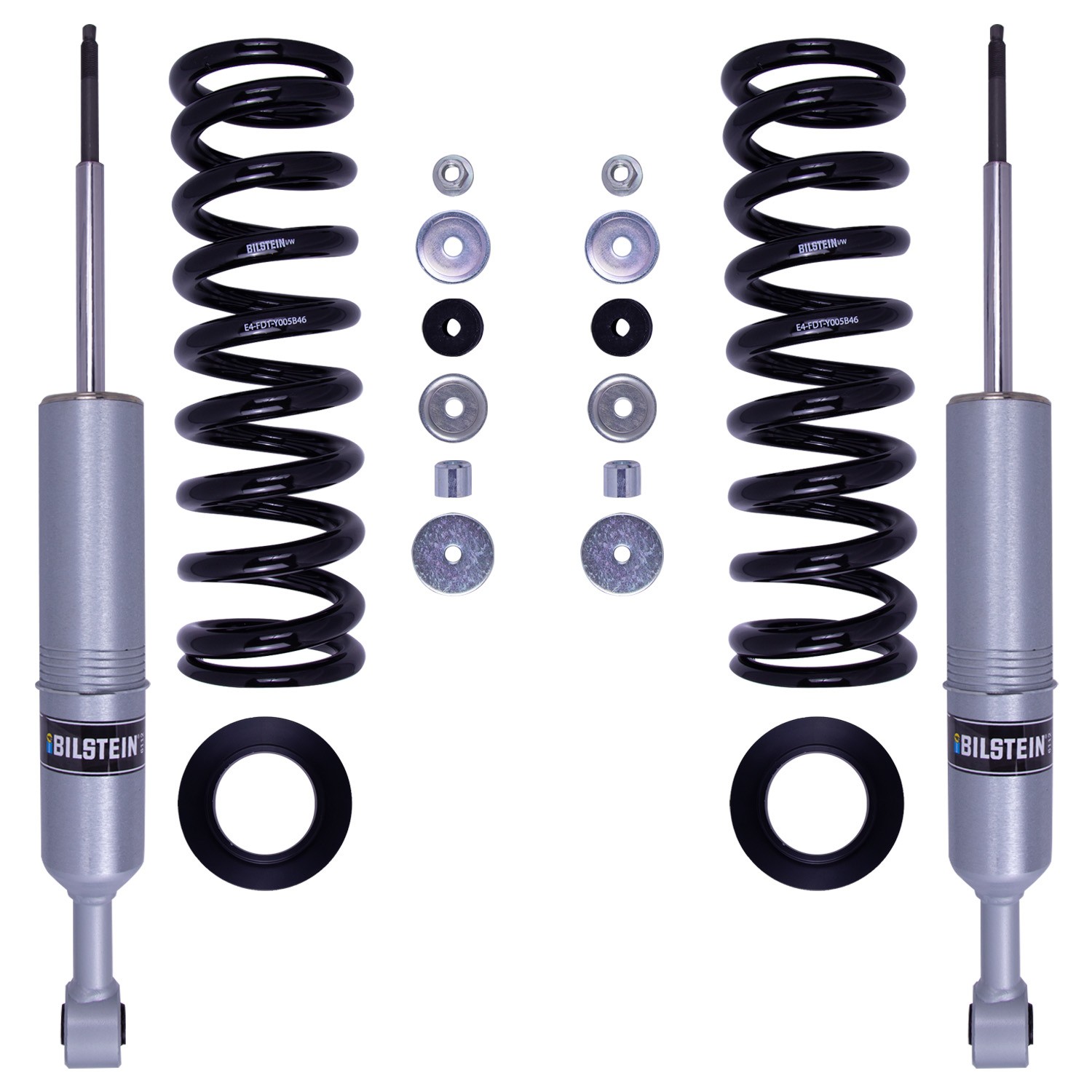

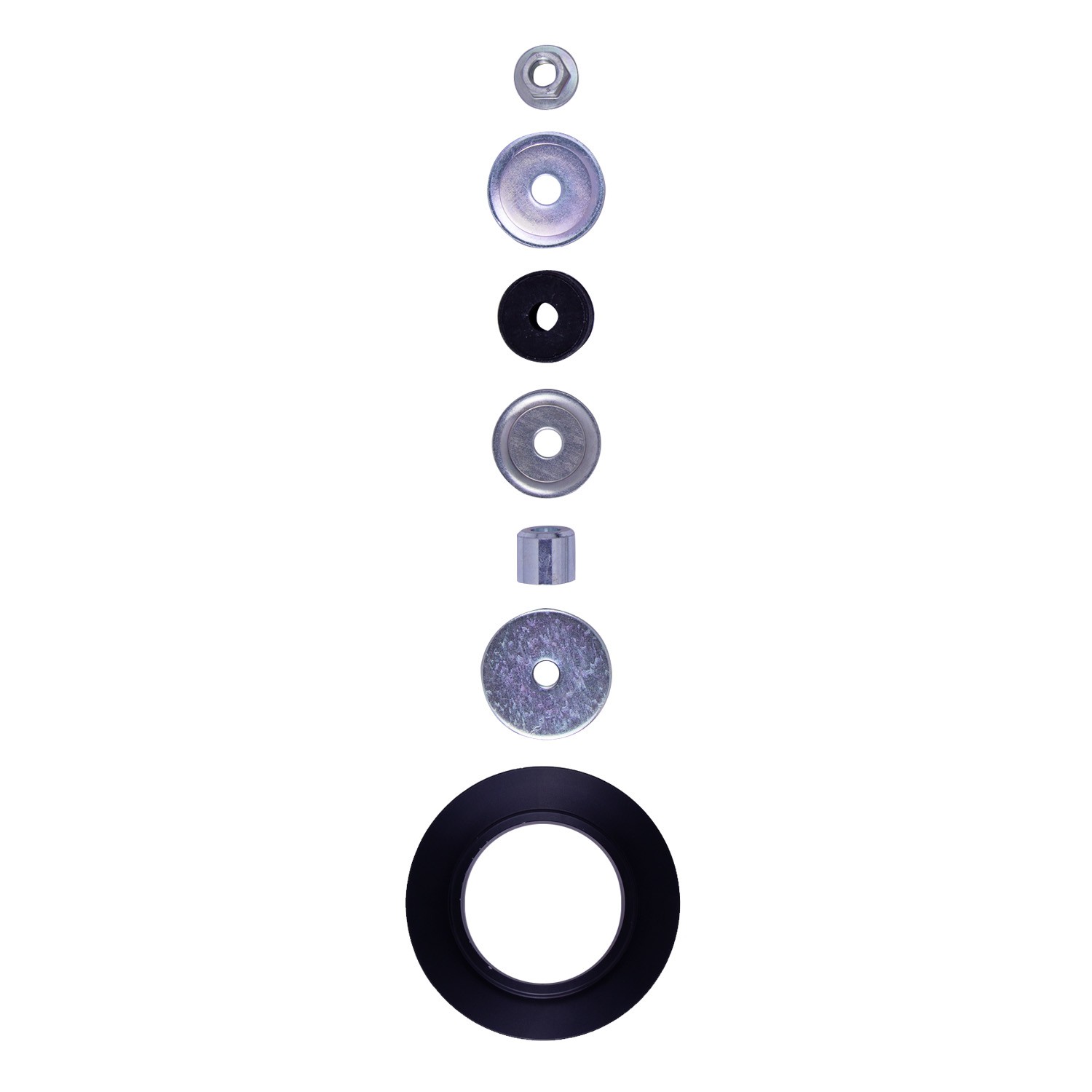

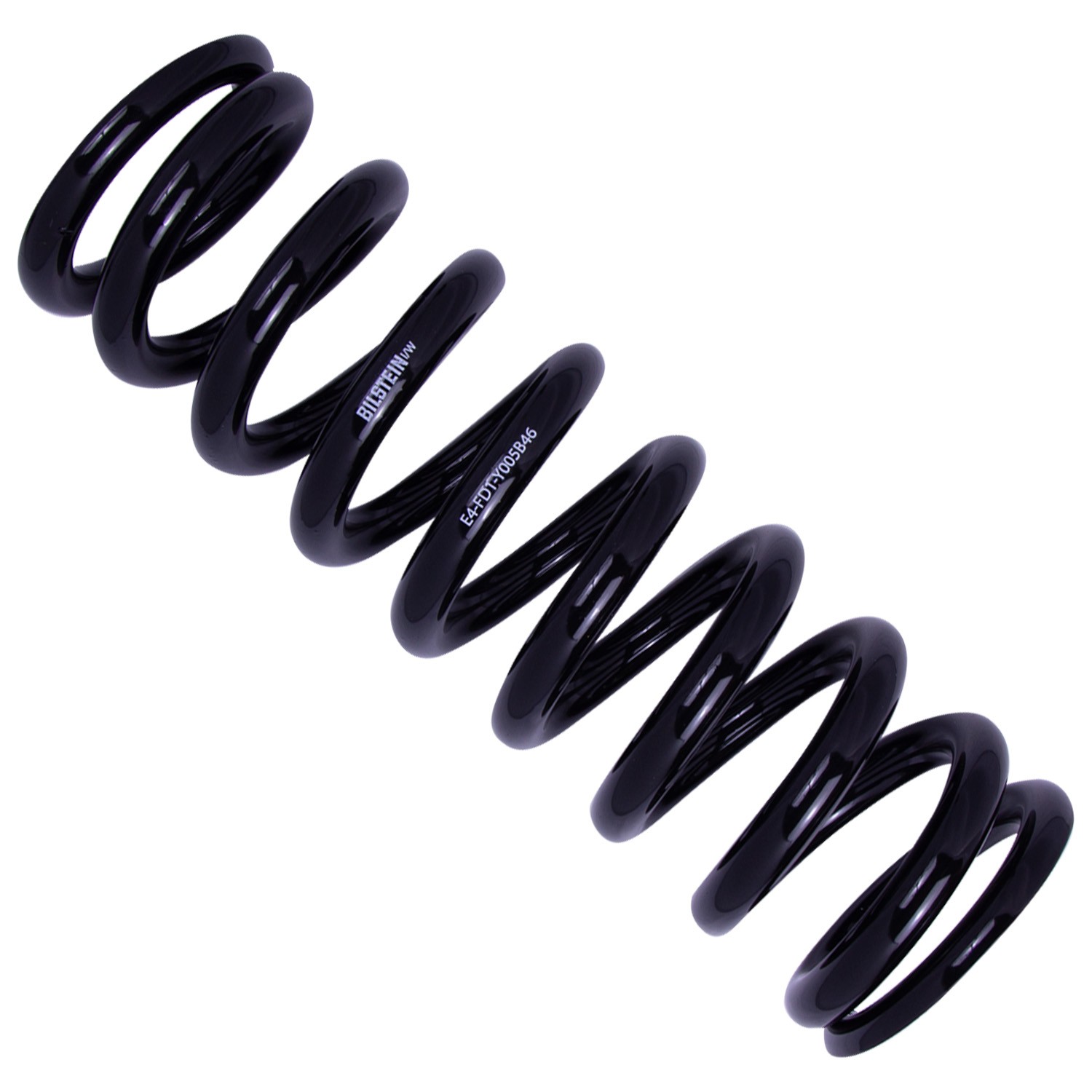

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Attributes:
| Stroke/Travel Length (mm) | 121.7 |
| Series | B8 6112 |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Front Main Spring Rate (lbs/in) | 700 |
| Spring Seat Included | Yes |
| Reservoir | No |
| Extended Length (IN) | 21.65 |
| Stroke/Travel Length (IN) | 4.79 |
| Internal Design | Monotube |
| Collapsed Length (IN) | 16.86 |
| PartType | Suspension Kit |
| Piston Diameter | 60mm |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Collapsed Length (mm) | 428.3 |
| Segment | Light Truck |
| Shaft Diameter | 18mm |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Extended Length (mm) | 550.0 |
Vehicle Applications:
| Make | Model | Years |
| Lexus | GX460 | 2010 to 2023 |
| Toyota | 4Runner | 2010 to 2024 |
| Toyota | FJ Cruiser | 2010 to 2014 |
