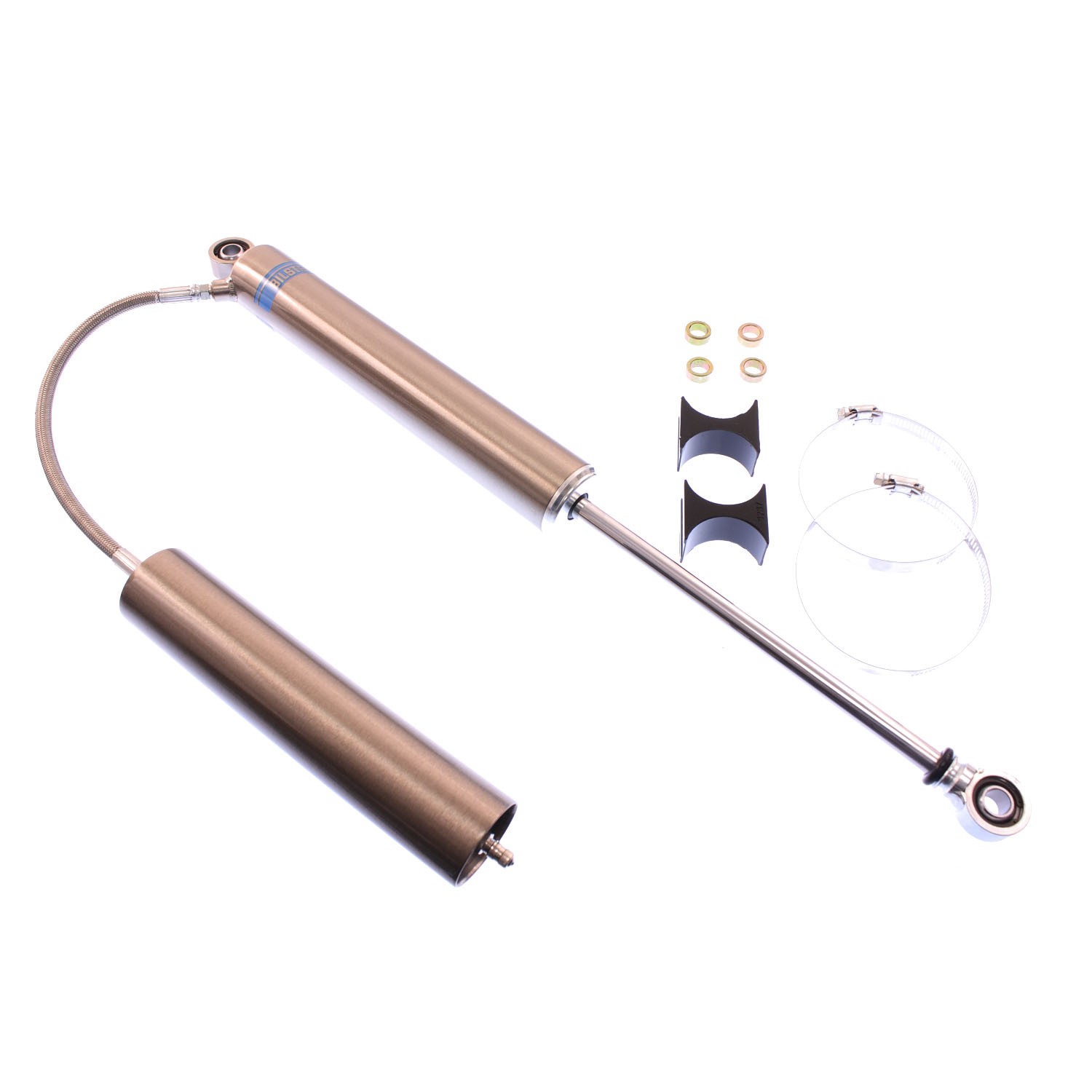

Bilstein AK7114SB06 M 7100 - Suspension Shock Absorber

Bilstein AK7114SB06 M 7100 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Features:

46mm monotube design ensures consistent, fade-free performance in all conditions
High-flow piston reduces harshness
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control

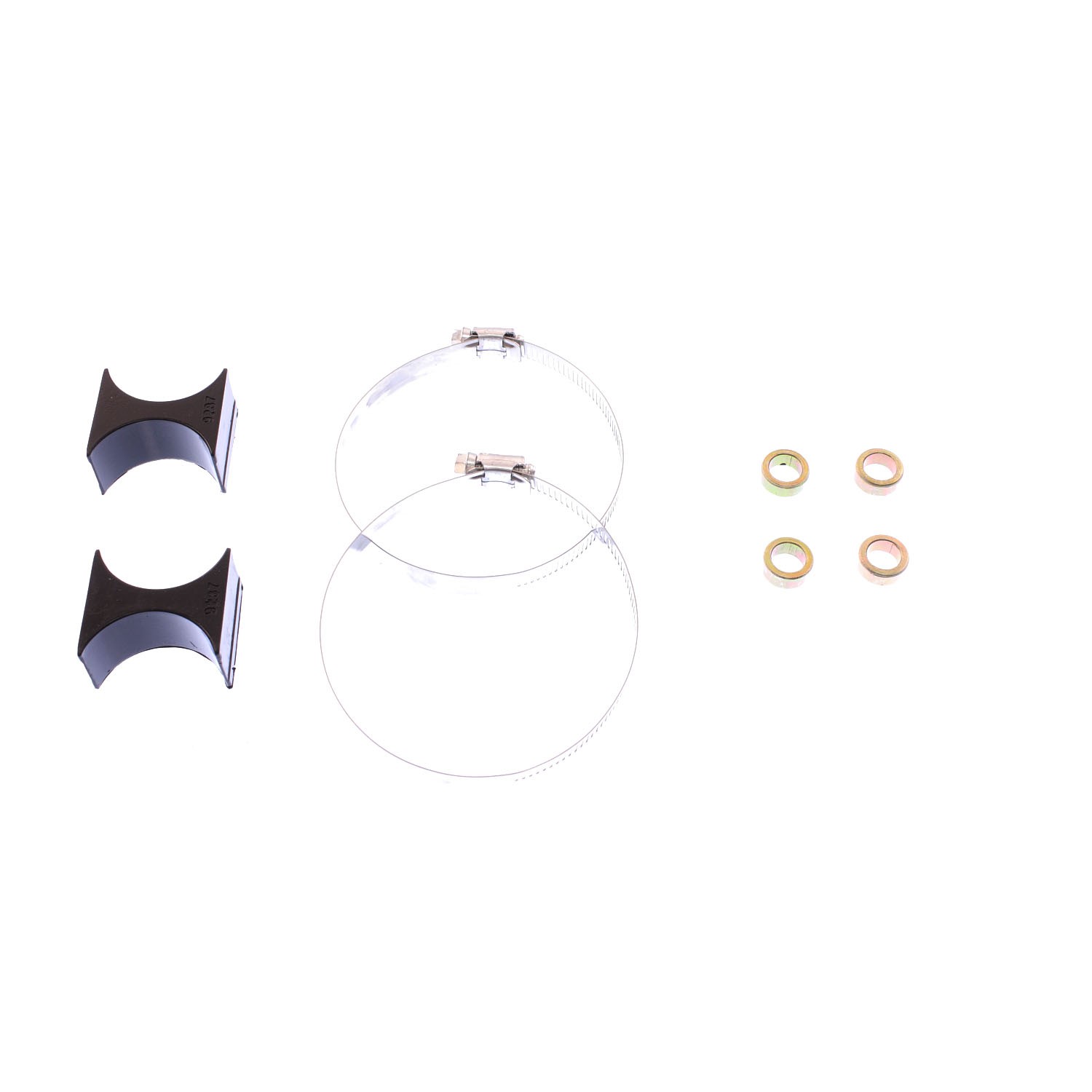

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Attributes:

Extended Length (MM)	859.5
Body Design	Smooth Body (Non-Coilover)
Collapsed Length (MM)	496.1
Optional Reservoir Clamp	N/A
Title	Bilstein Shock Absorbers
Spring Seat Included	No
PartType	Shocks / Struts
Extended Length (IN)	33.84
Reservoir	Yes
Collapsed Length (IN)	19.53
Stroke/Travel Length (mm)	363.5
Internal Design	Monotube
Segment	Motorsports
Shaft Diameter (mm)	14.0
Mount Type	Eye-to-Eye
Finish	Nickel Plated with Clear Powder Coat
Compression @0.52m/s	800
Rebound @0.52m/s	3600
Series	M 7100
Stroke/Travel Length (IN)	14.31
Upper Mount Type	1/2in Heim
Lower Mount Type	1/2in Heim
Piston Diameter	46mm
