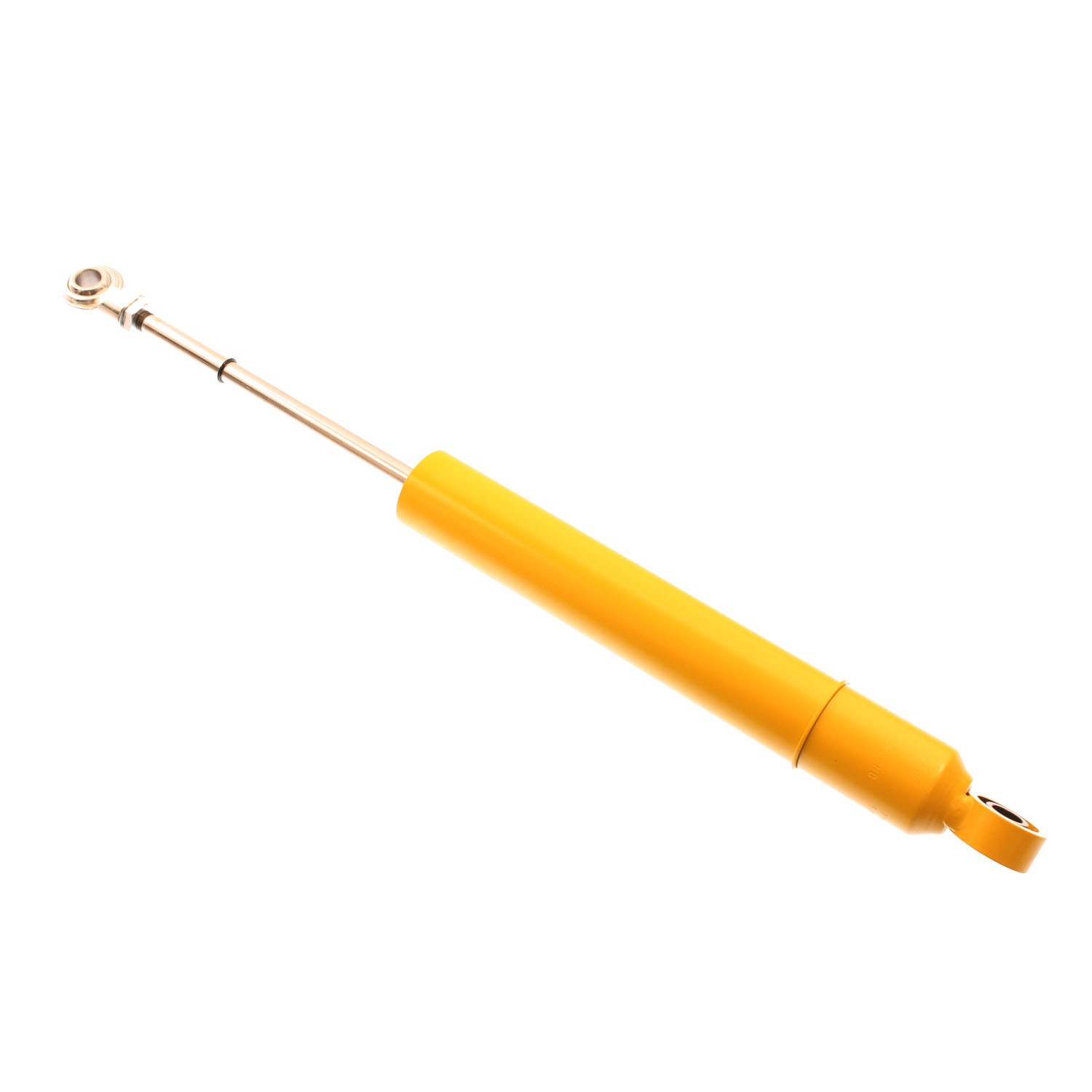

Bilstein F4-BE3-A213-M0 G Series – Suspension Shock Absorber
36mm Monotube Shock Absorber
Features:
- Designed for Stock Cars, IMCA/UMP Modified, Midgets, Mini-Sprints, Modified Lites and Dwarf Cars
- 36mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications
Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.
Attributes:
| Finish | Yellow Paint |
| Segment | Motorsports |
| Piston Type | Digressive |
| Lower Mount Type | 1/2in Heim |
| Internal Design | Monotube |
| Upper Mount Type | 1/2in Heim |
| Stroke/Travel Length (IN) | 5.81 |
| Collapsed Length (IN) | 11.38 |
| Extended Length (IN) | 17.19 |
| Rebound @0.26m/s | 450 |
| PartType | Shocks / Struts |
| Series | G Series |
| Adjustable Damping | Non-Adjustable |
| Stroke/Travel Length (mm) | 147.6 |
| Extended Length (MM) | 436.5 |
| Piston Diameter | 36mm |
| Body Design | Smooth Body (Non-coilover) |
| Valving Identifier | 2040 |
| Body Material | Steel |
| Collapsed Length (MM) | 289.0 |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Shaft Diameter | 11mm |
| Spring Hardware | B4-BOA-0000187 |
| Compression @0.26m/s | 740 |
| Spring Seat Included | No |
